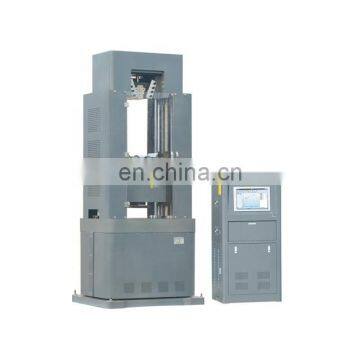

2000kN Hydraulic Universal Testing Machine with PC and Servo Control
Model: TBTUTM-2000CSI
This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.
This is four, twin-screw, double space frame structure, tensile and compression space spacing electrically adjustable clamping mode for manual clamping.There are built-in beam coil spring buffer device, which can effectively eliminate the transmission gap between the screw and nut, and play a good role in the sample buffer pull off. Top of the platform configuration and high toughness fence, the space between the test and the formation of the operator isolation, can effectively guarantee the safety of the operator.
Integrated product configuration Qintai oil source cabinets, built-in import Mazu Qi pump output stability, low noise, high oil source cabinet integration, small footprint, and the operation, easy observation.
This series of products and control systems using high-speed Ethernet communications interface to communicate with the computer, with a variety of control methods load, displacement, stress, strain, and to achieve control in the form of a smooth handover.Test data using standard database management and discretionary access, enabling test data and re-analysis of the curve, and then edit the local amplification and data can automatically determine the mechanical properties of the material, you can print out the complete test report and curves and provides network data interface.
Technical Specification
|
Model |
TBTUTM-2000CSI |
|
Max.Capacity(KN) |
2000 |
|
Accuracy class |
Lever 1 |
|
Max distance of compression plate(mm) |
650 |
|
Max distance of tensile |
800 |
|
Piston stoke(mm) |
250 |
|
Diameter of round specimen(mm) |
Φ20-Φ70 |
|
Diameter of flat specimen(mm) |
0-50 |
|
Compression Plate (mm) |
240 mm×240 mm |
|
Maximum distance of bending test(mm) |
300 |
|
Load control |
Computer automatically |
|
Specimen clamping method |
Hydraulic |
