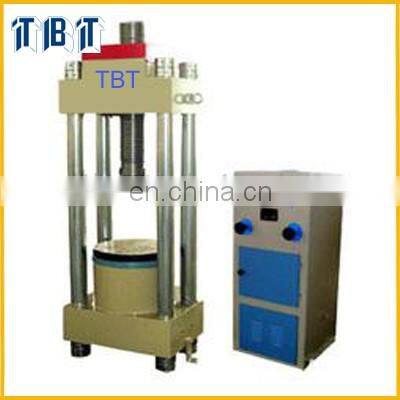

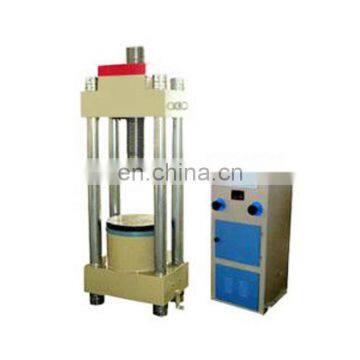

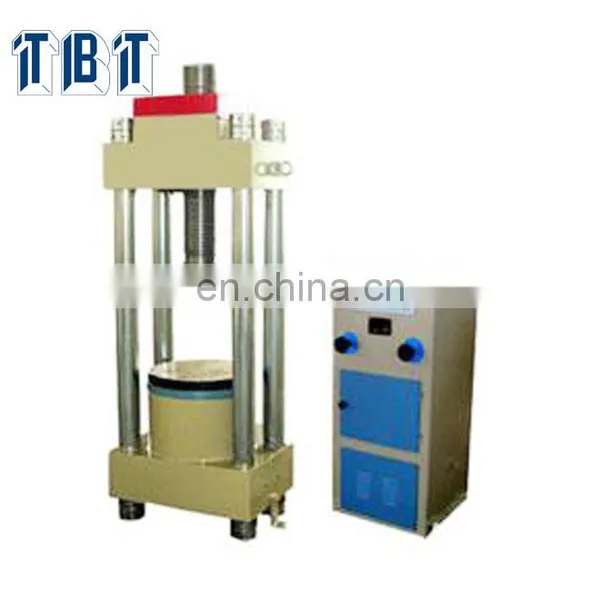

5000KN Full Automatic Concrete Compression Testing Machine/ Cube Crushing
Model: TBTCTM-5000A
1. Description
The testing machine is designed for testing the compressive strength of cement mortar in accrodence with the Standard GB17671-99 “the test regulation of cement mortar strength”. Also, it can used for testing the compression strength of some other building material if the proper compression jig is equipped.
It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly on the rated pace; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed
2.Main Specifications:
1 Maximum Capacity: |
5000 kN |
2 Measuring range: |
0-5000 kN |
3 Relative Error |
±1% |
4 Loading rate: |
0-10.0 kN/s |
5 Max. Vertical clearance between platen |
670 mm |
5 Maximum travel of piston |
120 mm |
6 Diameter of piston |
420 mm |
7 Rated pressure of oil pump |
40Mpa |
8 Power supply |
380VAC 750W |
3. Accessories
1. O-ring
