T-BOTA Analogue 1000kN Hydraulic Dial Gauge Universal Testing Machine
- 1000 Set / Sets per Month
- China Shanghai OR Nanjing Seaport
- T/T Credit Card
- TBT 2000kN Construction Material Testing Concrete Digital Compression Testing Machine
- T-BOTA Tensile Testing Machine (double column)
- T-BOTA 2000kN Digital Hydraulic Concrete Compression Testing Machine
- T-BOTA TBTCTM-2000(N) Electro Hydraulic Compression Testing Machine (Digital Display) with printer
- TBT Compressive strength testing machine/Compression testing equipment,2000kn CTM/Digital concrete compression testing machine
- T- Bota 100kN Compression and Flexure Testing Machine with Digital display
Product Details
Brand Name: | TBT | Place of Origin: | Jiangsu, China | Model Number: | WA-D |
Power: | Hydraulic | Usage: | Universal Testing Machine |
Product Description

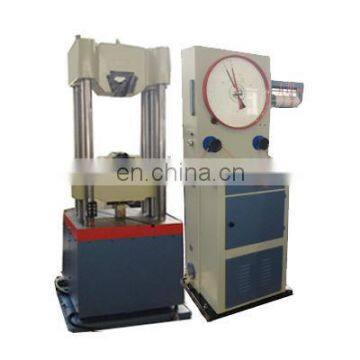

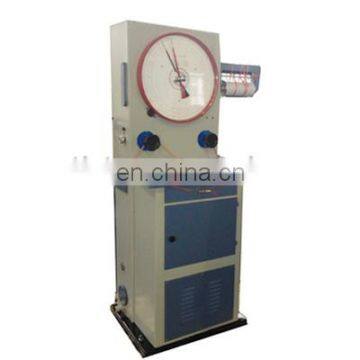

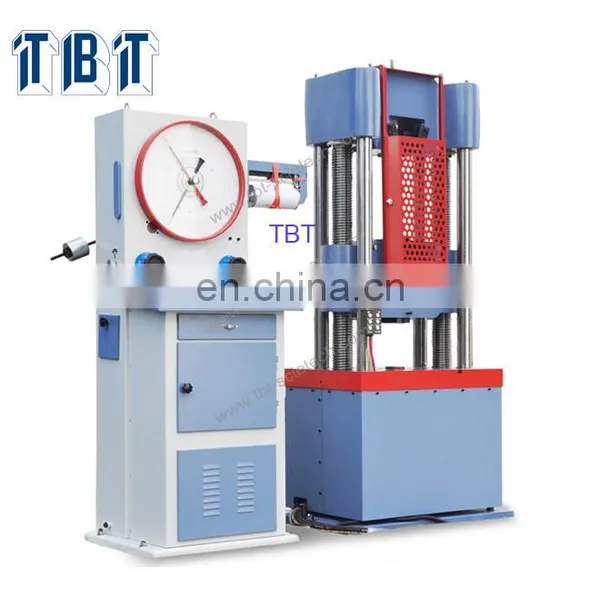

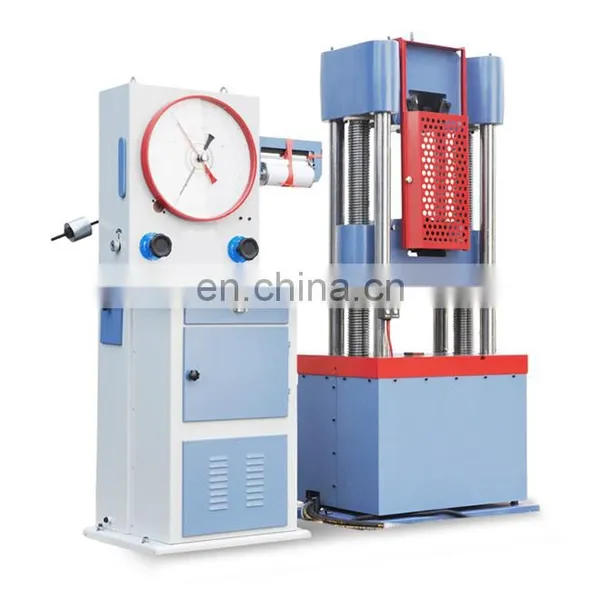

WA-300D/600D/1000D Universal Testing Machine with dial Gauge
Dial Gauge Universal Testing Machine
1. Max Capacity (kN) | 1000 | 600 | 300 | |
2. Measuring Range (kN) | 0-200 , 0-500, 0-1000 | 0-120 , 0-300, 0-600 | 0-60 , 0-150, 0-300 | |
3. Accuracy (from 20% of the full testing range) | Grade 1 | Grade 1 | Grade 1 | |
4. Time for Load Maintained (s) | 30s | 30s | 30s | |
5. Max. distance between flexible clips (including ram travel) | 500 | 500 | 500 | |
6. Distance between upper and lower platens | 0-500 | 0-500 | 0-500 | |
7. Distance between two fulcrums of bending test | 100-420 | 100-360 | 100-360 | |
8. Cliping diameter for round specimen | Ø20-Ø60 | Ø13-Ø40 | Ø8-Ø32 | |
9. Cliping thickness for flat specimen | 0-40 | 0-15 | 0-15 | |
10. Max. ram travel (mm) | 200 | 200 | 150 | |
11. Max rising speed of the ram (without load mm/min) | 0-80 | 0-80 | 0-80 | |
12.Dimensions (L×W×H) | Main frame (mm×mm×mm) | 960×620× 2150 | 880×600× 2020 | 740×460× 1970 |
Console (mm×mm×mm) | 600×660× 1780 | 600×600× 1780 | 600×600× 1780 | |
13. Net Weight (Kg) | Main frame | 2200 | 1700 | 1200 |
Console | 400 | 400 | 400 |
We can make and manufacture products according to customer specific needs.
provide best and professional service for you, pls contact with us freely;
Stable performance, best price, good quality , good after-sales service
Usage: material testing products
Product name: Universal Testing Machine w/dial Gauge, China universal testing machine

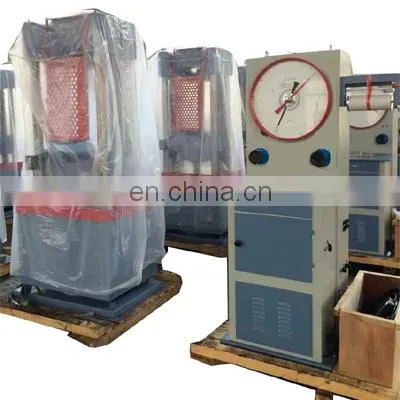

---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
Our Advantages:
You can always get our in-time reply via email or telephone or instant messenger;
You can always get best product with excellent quality and competitive price;
You can always get goods news for on-time or advanced shipment at your desire;
You can always enjoy our considerable & full-side after-sales service;
You can always feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;
You can always easily make the payment via West Union, Paypal, T/T for small value order;
Our Target
To be the largest and most professional supplier for products in our business scope through our efforts!
To be the best friend and solid cooperator of our customers!
To be the first supplier at customer's first thought when they need to order!
We warmly welcome your visit, E-Mail and call!
Tel: 86-25-84721577
Shipping method
---Express: UPS, FEDEX, DHL, TNT, EMS, etc
---Air shipping: Please choose your convenient shipping method according your detail requirement.
---Sea shipping: large quantity order
---Normally, it will take around 3--5days from China to destination country via air.
Payment
---T/T, Western Union, Paypal, or negotiable, ect.
We are waiting for your enquiry, please “Click Here” and send enquiry to us, thank you! It is first step towards successful working partnership with you!
Zara Zheng
Nanjing T-Bota Scietech Instruments and Equipment Co., Ltd.
SKYPE: kallyem
Whatsapp: 0086 18951741065
Warranty: 1 year
Perfect After Sales Service
Effective and strong support all the customers;
Before shipment, we will do final inspection, ensure everything going smoothly;
We can supply:
concrete compression machine
concrete compression testing machine
Compression machines for strength tests on concrete cubes,
cylinders and blocks Compression machine 4000kN
compression testing machine 2000KN
Concrete Digital Display Compressive Strength Testing Machine
Compression Testing Machine
Servo-Hydraulic Universal Testing Machine
Steel strand Universal Testing Machine
Digital Display Universal Testing Machine
Dial gauge Universal Testing Machine
Electronic Tensile Testing Machine
Creep Testing Rig
If you need any products, please kindly inform me!
Thank you so much!
