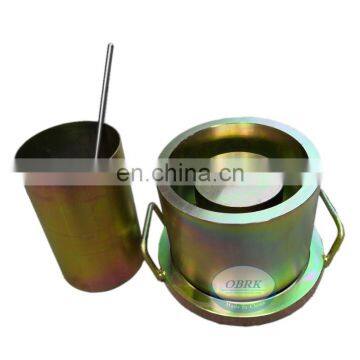

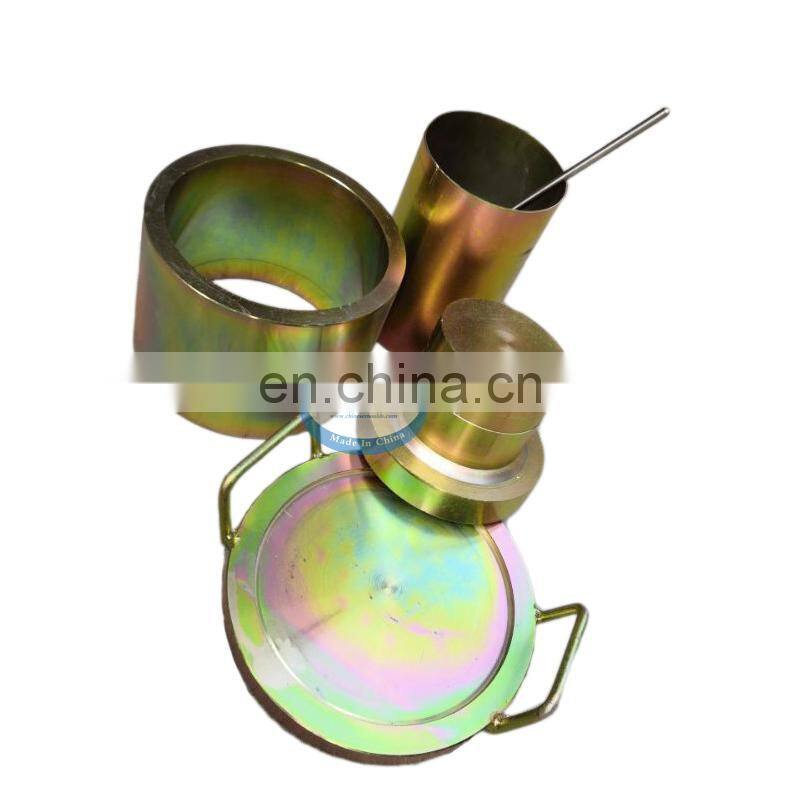

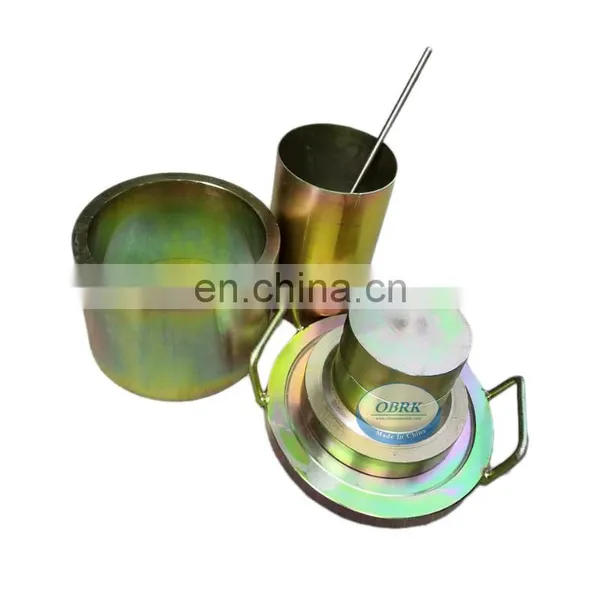

Steel Aggregate Crushing Value Apparatus With Diameter 150mm
The aggregate crushing value provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Supplied complete with cylinder, plunger, base plate, tamping rod, and measure.
| Product name | Steel Aggregate Crushing Value Apparatus | |
| Material | Brass steel | |
| Cylinder nominal diameter | 150mm | |
| Metal Measure size | (Dia.xH)115x180mm | |
| Tamping Rod | (Dia.xL)16X600mm | |
| Plunger and base plate Weight | 16.6KG | |
| Cylinder | Internal diameter.A | 154±0.5mm |
| Internal Deep.B | 125mm to 140mm | |
| Minimum wall thicks.c | 16mm | |
| Plunger | Diameter of piston,D | 152±0.5mm |
| Diameter of atem,E | >95 to ≤D mm | |
| Overall length of piston plus stem,F | 100mm to 115mm | |
| Minimum depth of piston,G | no less than 25.0mm | |
| Diameter of hole ,H | 20±0.1 | |
| Baseplate | Minimum thickness,I | 10mm |
| Length of each side of aquare,J | 200mm to 230mm | |
| Total weight | 20Kg | |
Consist of:
| Cylinder | 1PC |
| Plunger | 1PC |
| Base Plate | 1PC |
| Tamping Rod | 1PC |
| Measuring Cylinder | 1set |
Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester .... We assure high quality to you.
We be 24 hours online,if you have any questions,kindly contact us freely.
