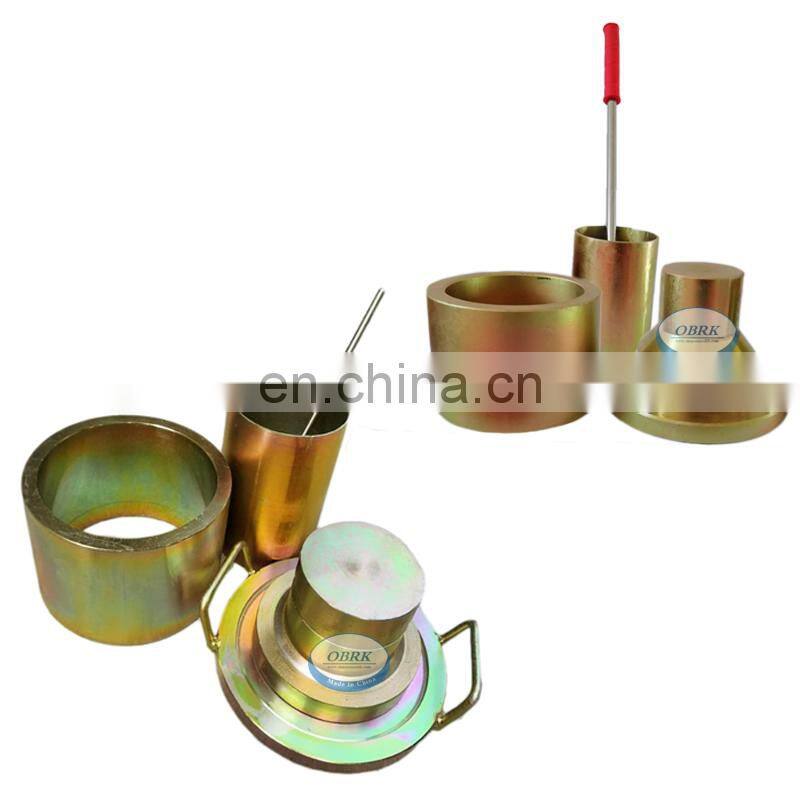

Dia.75mm/150mm Aggregate Crushing Value Apparatus
US$ 90 - 120
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OBRK
Place of Origin:
Hebei, China
Model Number:
JSY-76
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Digital Schmidt Concrete Rebound Hammer Schmidt HammerUS$ 450 - 500MOQ: 1 Set -
HT-225B Schmidt Concrete Hardness Test Rebound Hammer Concrete Test HammerUS$ 76 - 90MOQ: 1 Set
-
Hot Sale Micro-Deval Test Machine Testing MachineUS$ 2,500 - 3,200MOQ: 1 Set
-
40x40x160mm Three Gang Plastic Prism Mould For Cement MortarsUS$ 5.5 - 6.5MOQ: 1 Piece
-
High Quality 100mmCube Green Plastic Mold Concrete Test MouldUS$ 5 - 6.5MOQ: 1 Piece
Brand Name
OBRK
Place of Origin
Hebei, China
Model Number
JSY-76
Dia.75mm/150mm Aggregate Crushing Value Apparatus
Small MOQ:
we accept small quantity order to supports our cooperation.
Excellent quality with competitive price:
All our products are made in China and with competitive price.
OEM / ODM service:
We can offer OEM & ODM service.
Product Description
Dia.75mm/150mm Aggregate Crushing Value Apparatus
The aggregate crushing value provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Supplied complete with cylinder, plunger, base plate, tamping rod, and measure.
Dia.75mm product parameter:
| Product name | Brass Aggregate Crushing Value Apparatus | |
| Material | Brass | |
| Cylinder nominal diameter | 75mm | |
| Metal Measure size | (Dia.xH)57x90mm | |
| Tamping Rod | (Dia.xL)8X300mm | |
| Plunger and base plate Weight | 3.5KG | |
| Cylinder | Internal diameter.A | 78±0.5mm |
| Internal Deep.B | 70mm to 85mm | |
| Minimum wall thicks.c | 8mm | |
| Plunger | Diameter of piston,D | 76±0.5mm |
| Diameter of atem,E | >45.0 to ≤D mm | |
| Overall length of piston plus stem,F | 60mm to 80mm | |
| Minimum depth of piston,G | no less than 19.0mm | |
| Diameter of hole ,H | 10±0.1 | |
| Baseplate | Minimum thickness,I | 10mm |
| Length of each side of aquare,J | 110mm to 115 | |
| Total weight | 5Kg | |
Dia.150mm product parameter:
| Product name | Steel Aggregate Crushing Value Apparatus | |
| Material | Brass steel | |
| Cylinder nominal diameter | 150mm | |
| Metal Measure size | (Dia.xH)115x180mm | |
| Tamping Rod | (Dia.xL)16X600mm | |
| Plunger and base plate Weight | 16.6KG | |
| Cylinder | Internal diameter.A | 154±0.5mm |
| Internal Deep.B | 125mm to 140mm | |
| Minimum wall thicks.c | 16mm | |
| Plunger | Diameter of piston,D | 152±0.5mm |
| Diameter of atem,E | >95 to ≤D mm | |
| Overall length of piston plus stem,F | 100mm to 115mm | |
| Minimum depth of piston,G | no less than 25.0mm | |
| Diameter of hole ,H | 20±0.1 | |
| Baseplate | Minimum thickness,I | 10mm |
| Length of each side of aquare,J | 200mm to 230mm | |
| Total weight | 20Kg | |

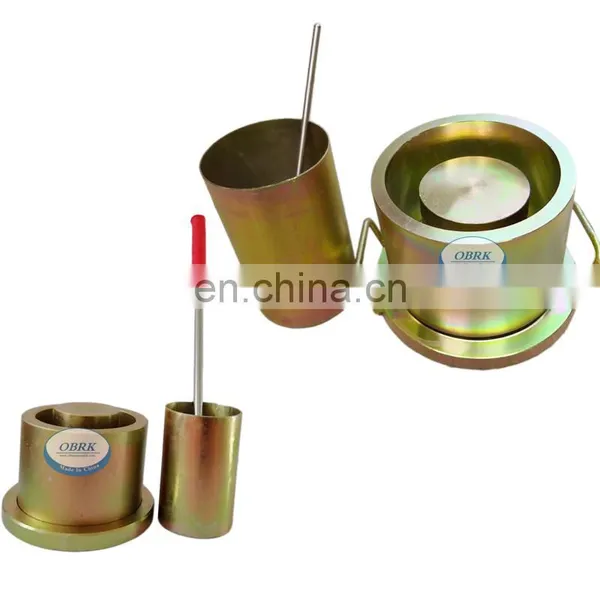

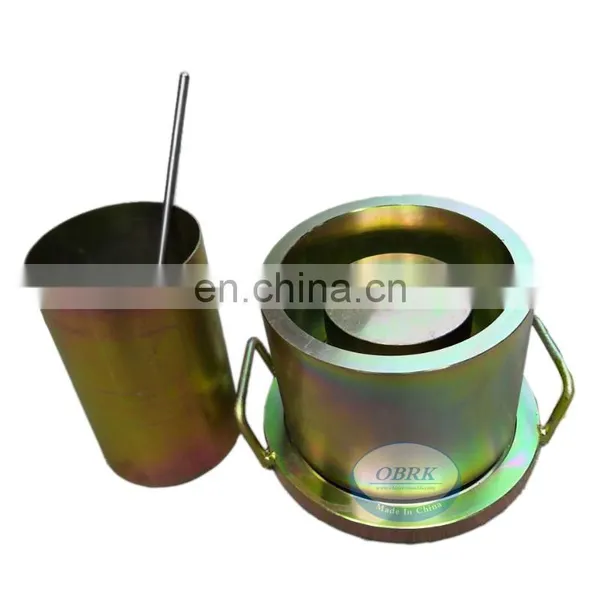

Product display
Consist of:
| Cylinder | 1PC |
| Plunger | 1PC |
| Base Plate | 1PC |
| Tamping Rod | 1PC |
| Measuring Cylinder | 1set |
