Portable Integrated Rebar Scanner GPR Instrument
- T/T Credit Card
You May Like
-
Aggregate Crushing Value (ACV) Sets for testing rock crushing index determiner
-
Concrete Non-destructive Scanner Ground Penetrating Radar
-
Brass standard test sieve for Sand soil grain sieving in Laboratory or field
-
Concrete Scanning Equipment For Rebar Steel Scanner
-
Standard cement Vicat test set with needle apparatus
-
Digital crack monitoring / crack integrated detector / Concrete cracks meter
Product Details
| Brand Name | OBRK | Place of Origin | Hebei, China | |
| Model Number | PQI-023 | Power | Electronic |
Product Description

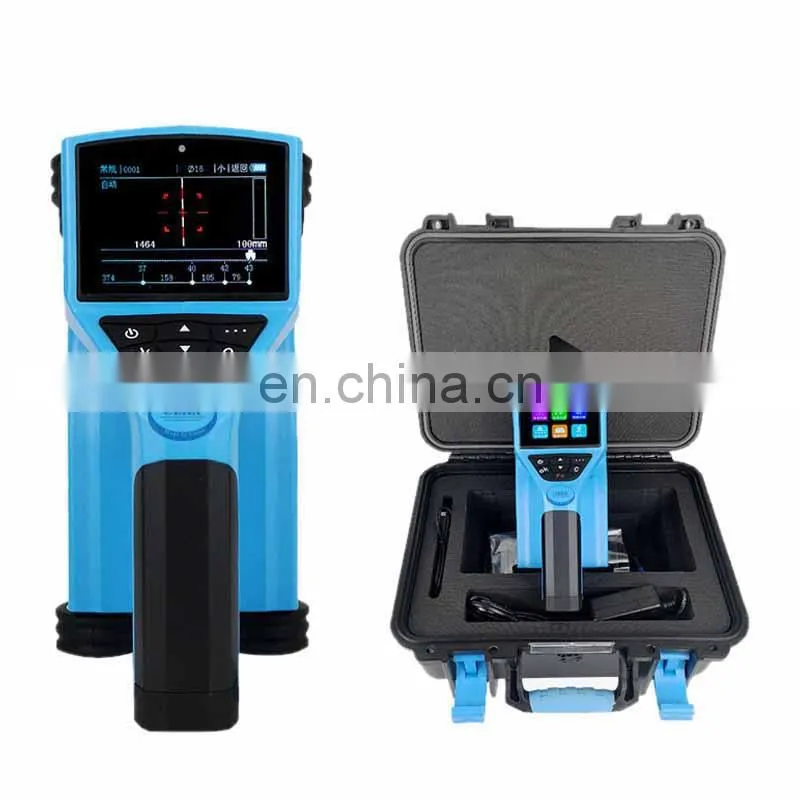

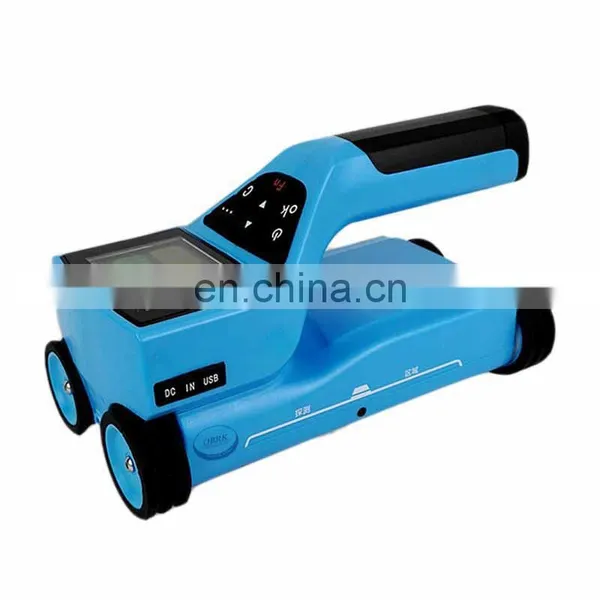

Portable Integrated Rebar Scanner GPR Instrument
Small MOQ:
we accept small quantity order to supports our cooperation.
Excellent quality with competitive price:
All our products are made in China and with competitive price.
OEM / ODM service:
We can offer OEM & ODM service.
The instrument is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of the steel bars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the steel bars. In addition, the magnetic properties inside the concrete structure can also be The position of the body and the conductor are detected, such as the internal cable of the wall, the plumbing pipe, etc., and the detection before construction can effectively avoid damage to these facilities during construction and reduce accidents.
| Item name | Portable Integrated Rebar Scanner GPR Instrument |
| Rebar diameter setting range | Φ6mm ~ Φ50mm |
| Small range | 2-100mm |
| Large range | 2-200mm |
Maximum thickness of protective layer | ±1 2-75mm |
| ±2 76-100mm | |
| ±3 101-130mm | |
| ±4 131-200 | |
| Diameter estimation range | 6mm-50mm |
| Diameter indication maximum error | ±1 specification |
| Diameter display accuracy | 0.1mm |
| Screen size | 3.2 Inch |
| Working temperature | -10℃~+40℃ |
| Working humidity | <90%RH |
| Power supply | Lithium battery |
| Weight | 5Kg |
We can ship By EMS,TNT,DHL and others ( door to door)
We be 24 hours online,if you have any questions,kindly contact us freely.
