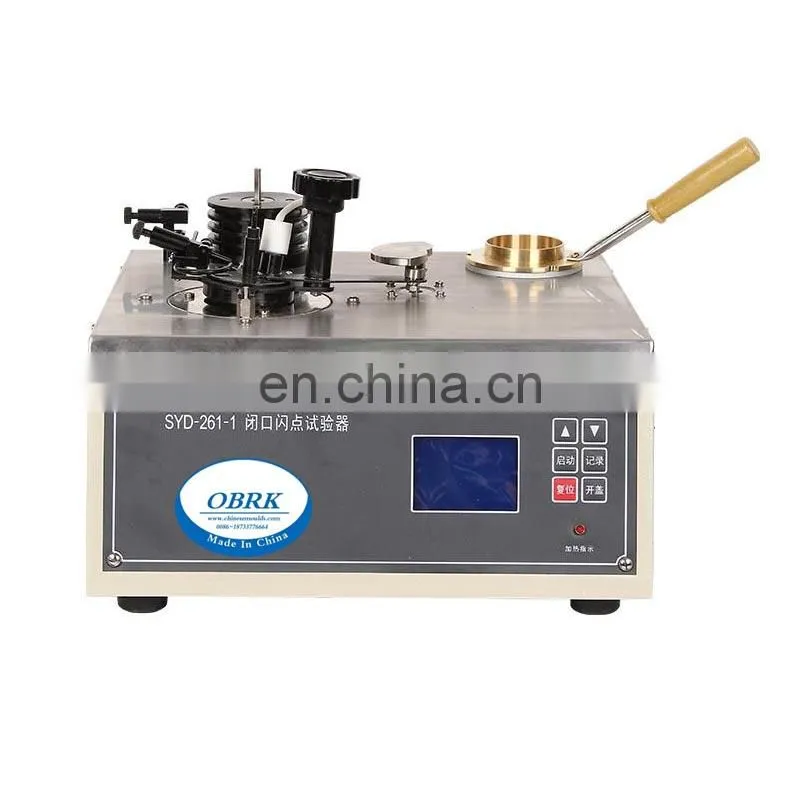

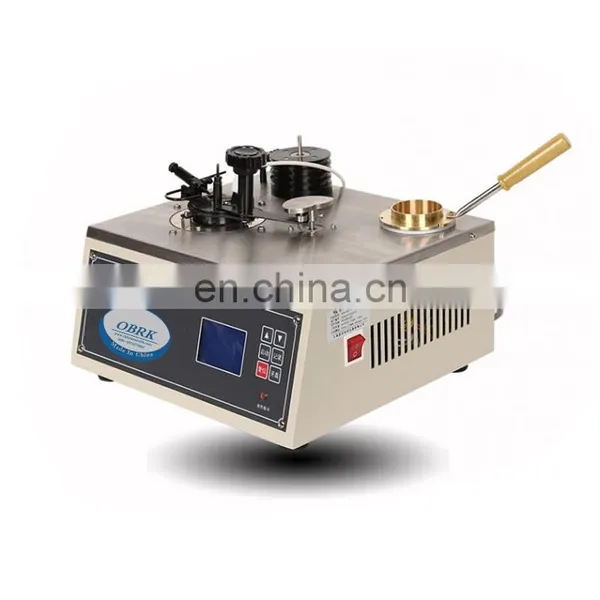

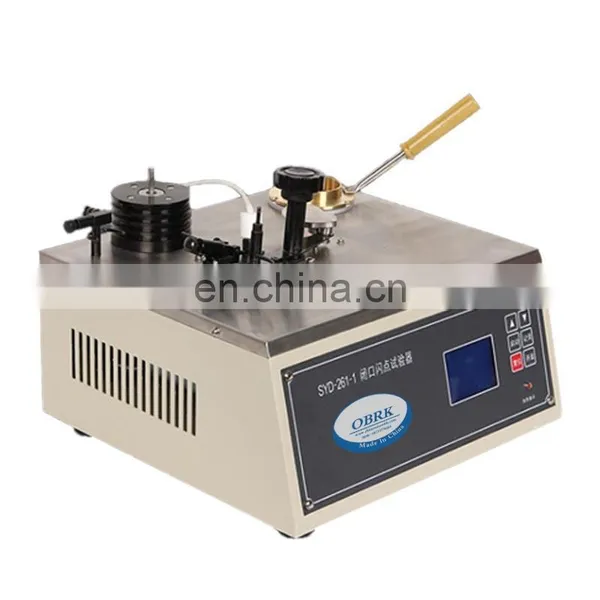

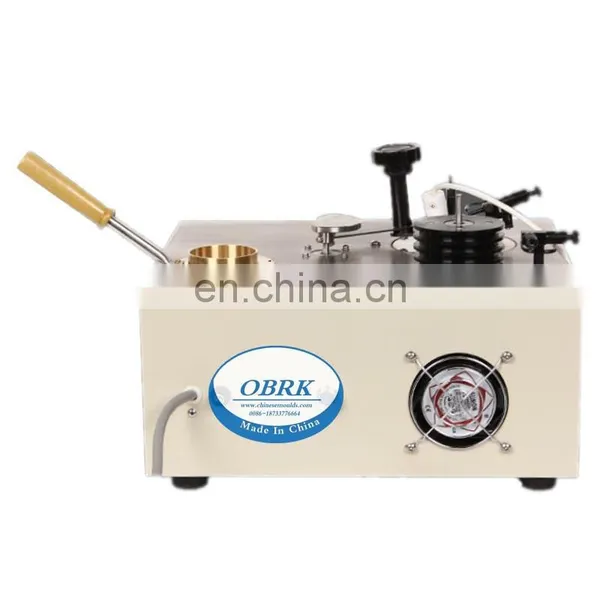

Automatic closed cup flash point tester/apparatus/test instrument
Function:
1. The design of this instrument is in full compliance with the requirements of the ISO 2719:2002 standard.
2. The heating power is continuous and steplessly adjustable. The power level is visually displayed by the voltmeter, and the temperature control method is advanced and reasonable.
3, the structure design is small, stainless steel countertops are beautiful, easy to remove oil.
4, easy to operate, accurate test results, selected by a number of measurement and testing units as a closed flash point detection instrument.
| Name | Electric Closed Cup Flash Point Apparatus |
| Power supply | AC (220±10%)V, 50Hz |
| Heating device | The heating power is continuously adjustable from 0 W to 600W |
| Heating rate | (1~8℃/min; Controllable and adjustable |
| Stirring rate | Procedure A: (90~120)RPM, Procedure B: (250±10)RPM |
| Standard | GB/T 261-2008 |
| Lgniting device |
(1) Igniting source: gas(or other civilian fuels,the same below) (2) Electric ignition. Gas flame diameter:0.7mm~0.8mm |
| Temperature probe | PT100 |
| Ambient temperature | ≤ 35℃ |
| Relative humidity | ≤ 85% |
| Maximum power consumption | 650W |
| Dimension(LxWxH) | 350x400x450mm |
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
We can delivery by sea at any port in China.
We also can ship by air via express company (door to door),it is quick and safe.
We can ship By EMS,TNT,DHL and others ( door to door).
We supply various Concrete Test Apparatus, Cement Test Apparatus, Soil/Road Test Apparatus,Asphalt Test Apparatus, Concrete Test Cube Mould and other Lab Apparatus.
If you need any Apparatus, please contact us.
