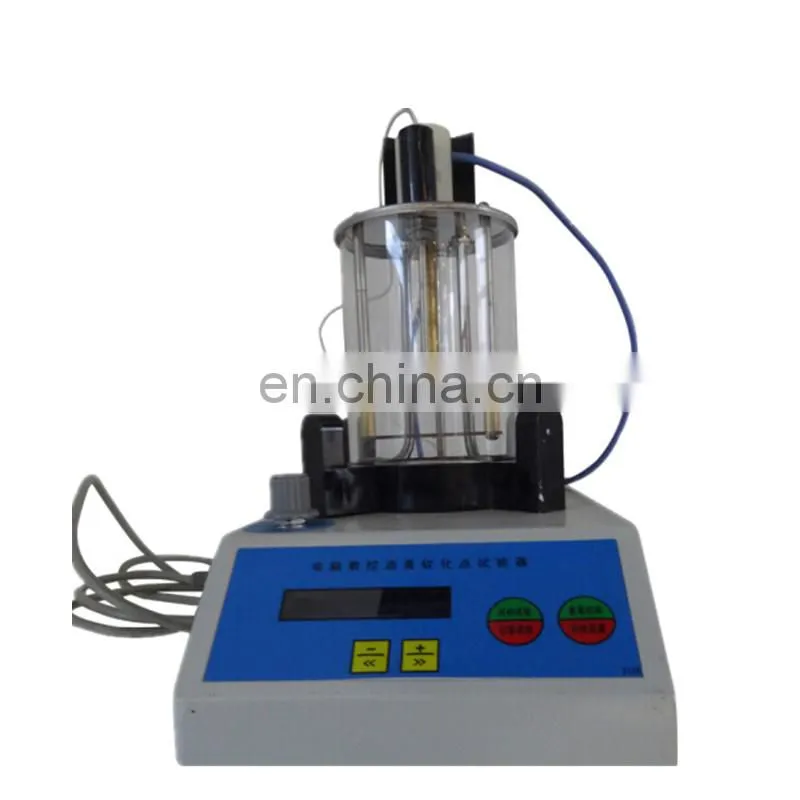

Testing Equipment Asphalt Softening Point Test (Ring-and-Ball Apparatus)
It is mainly used to determine the softening point of asphalt, coal pitch, also it’s suitable for resin and grease. It’s kind of common asphalt testing instrument.
Point of Petroleum Asphalt of National Standard of People’s Republic of China , T0608 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in the industrial standard of People’s Republic of China JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering.
| Temperature rang | -5 ~ 180 ℃ |
| Test Range | 5 ~ 180 ℃ |
| Heating rate | (5 ± 0.5) ℃ / min |
| Heating modes |
Heating rate plus fuzzy logic algorithm with PID control, magnetic stirring |
| Detection modes | Manual or automatic photoelectric detector test. |
| Ball mass | 3.5g ± 0.05g |
| Ball diameter | 9.53mm. |
| Ball sink | 25.4mm. |
| Rings | JTJ052-2000 standard procedures. |
| Timing range | 0-99 minutes 99 seconds |
| Temperature measurement accuracy | 0.2 ℃ |
| Implementation of the standards | GB / T4505, ASTMD36, T0606-2011. |
| Dimensions | 340x230x340mm |
| Weight | 4.5Kg |
| Power supply voltage | AC220V / 50HZV |
| Power | 800W |
| Ambient temperature | 5 ~ 40 ℃ |
| Humidity | ≤85 % |
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
We supply various Concrete Test Apparatus, Cement Test Apparatus, Soil/Road Test Apparatus,Asphalt Test Apparatus, Concrete Test Cube Mould and other Lab Apparatus.
If you need any Apparatus, please contact us.
Q:Are you trade company or factory?
A:We are trade company but we also have own factories. Building trade company is just for exporting various types of concrete mould and others products.
Q:Why your price is higher than others?
A:As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than ten years without any problem. We can provide one years free quality assurance.
Q:How to visit your company?
A:1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick you up.
