Concrete Cement Brick Compressive and Flexural Strength Testing Machine
- Tianjin
- T/T Credit Card
You May Like
-
Electro-hydraulic Servo Steel Universal Concrete Tensile Testing Machine
-
100*200 mm Steel Concrete Cylinder Test Mould
-
Digital 2000KN Concrete Compression Testing Machine/instrument for Brick,stone,cement
-
2000KN Digital Display Hydraulic Concrete Compression Testing Equipment CTM
-
3000KN Cement Concrete Compression Testing Machine/compression Tester
-
Hydraulic Pressure Cement Concrete Compression Strength Test Machine(Manual Screw Adjust)
Product Details
| Brand Name | OBRK | Place of Origin | Hebei, China | |
| Model Number | DYE-300SG-10D | Power | Electronic |
Product Description

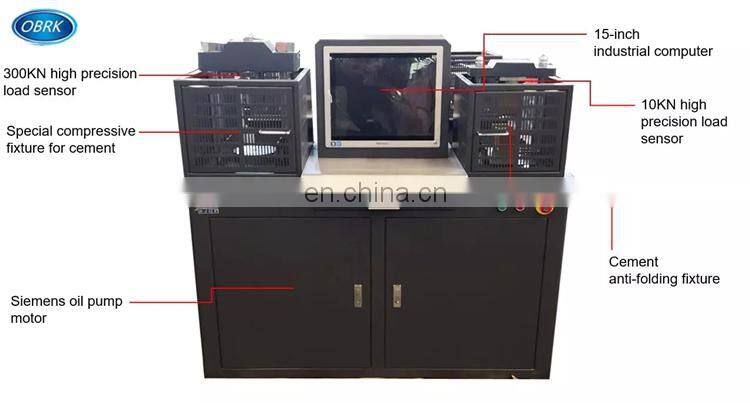

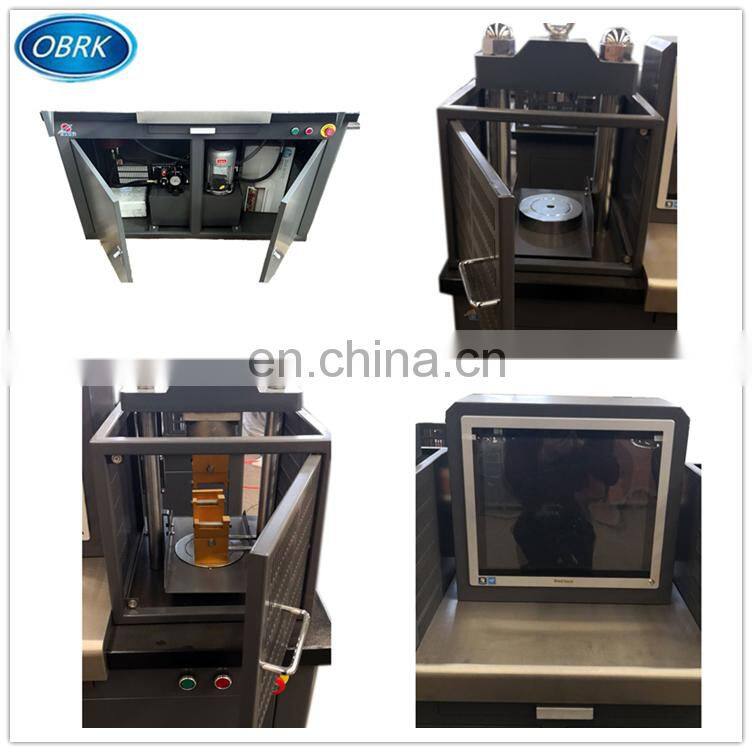

Concrete Cement Brick Compressive and Flexural Strength Testing Machine
This machine is a mechanical, electrical, instrument integration products, beautiful design, structural reinforcement, compact design, easy maintenance, saving floor space, the use of high-pressure pumps and low noise.
The main criteria for the detection of cement specimens compressive and flexural strength tests 40 * 40 * 160, optional bending device;
70.7x70.7 dust compression test compression test, computer control the whole process. Force value, real-time curve display time, loading rate constant charge, a key to complete the whole process of the test; print full A4 report, and central laboratory network, data upload.
Technical Parameters:
| Model | DYE-300SG-10D |
| Max. test force | Anti-stress 300; Flexural strength 10 |
| Test force measurement range | 4%-100% |
| Test Force showed the relative error | ≤ Display value±5% |
| Loading speed | 2.4kN/S |
| Space Between Upper And Lower | 180mm |
| Upper and lower platen size | 100/185 |
| Power | 380V/50HZ |
| Weight | 550kg |
| Host Dimension | 1350*600*1380mm |
| Package Size | 1450*700*1500mm |
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
We can delivery by sea at any port in China.
We also can ship by air via express company (door to door),it is quick and safe.
We can ship By EMS,TNT,DHL and others ( door to door).
We supply various Concrete Test Apparatus, Cement Test Apparatus, Soil/Road Test Apparatus,Asphalt Test Apparatus, Concrete Test Cube Mould and other Lab Apparatus.
If you need any Apparatus, please contact us.

Q:Are you trade company or factory?
A:We are trade company but we also have own factories. Building trade company is just for exporting various types of concrete mould and others products.
Q:Why your price is higher than others?
A:As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than ten years without any problem. We can provide one years free quality assurance.
Q:How to visit your company?
A:1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick you up.
