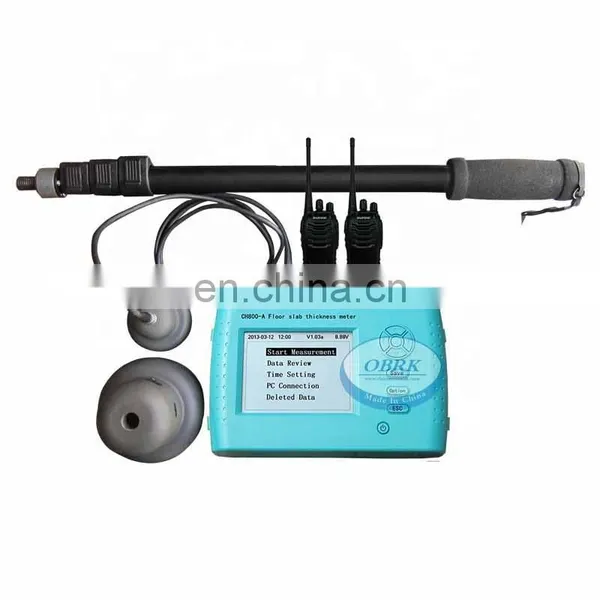

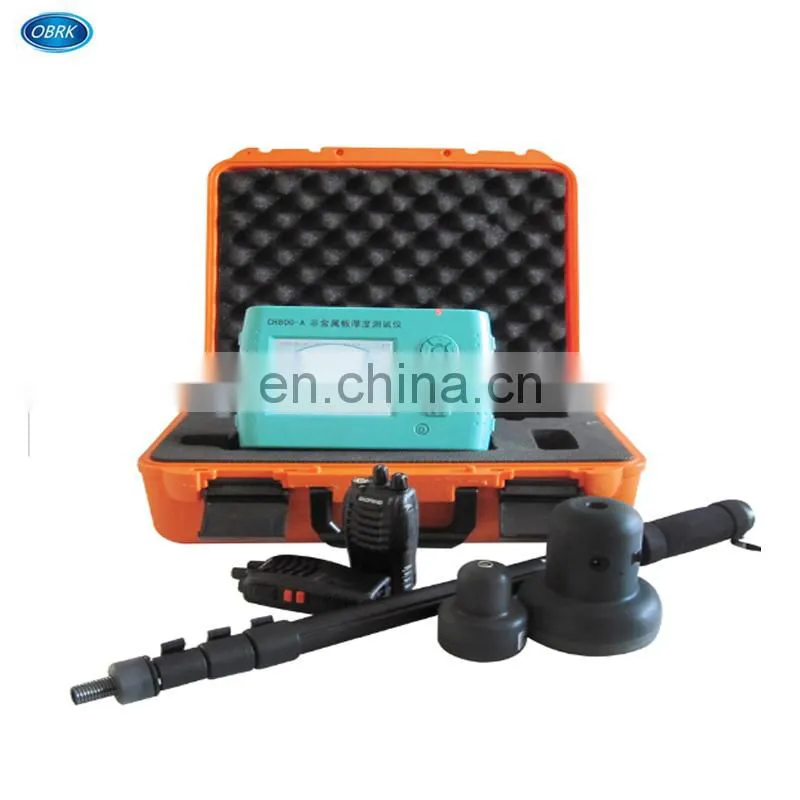

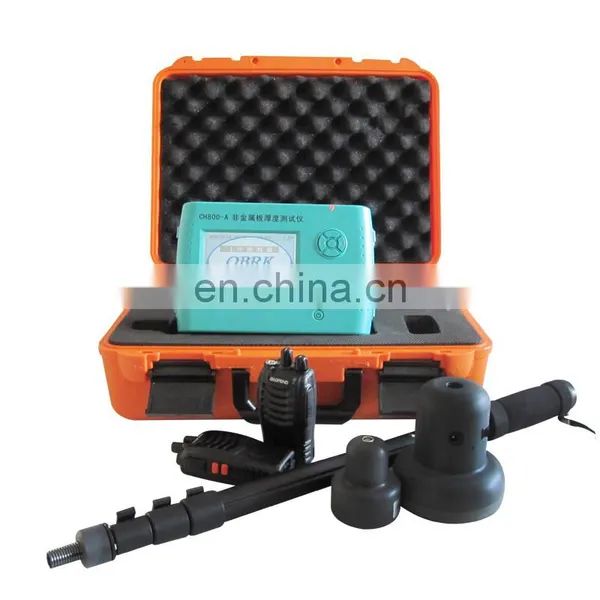

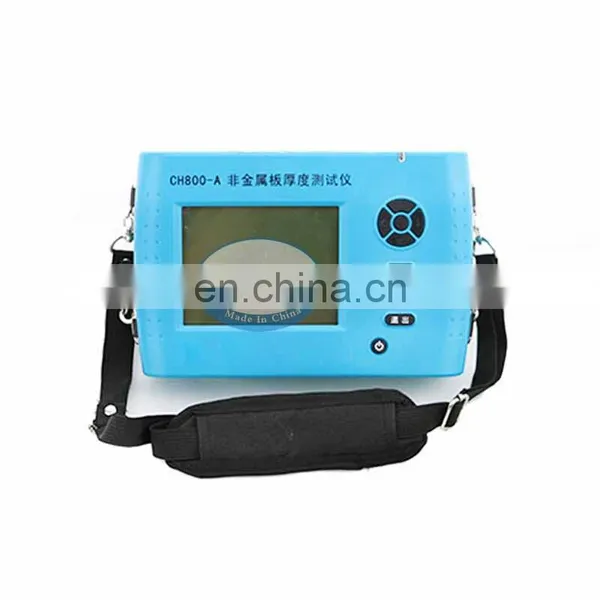

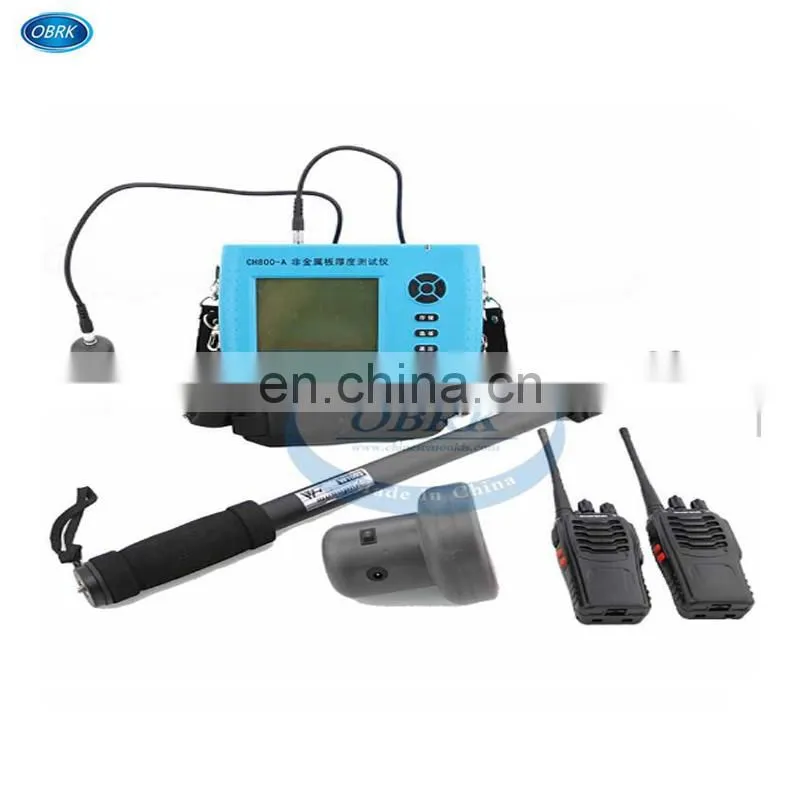

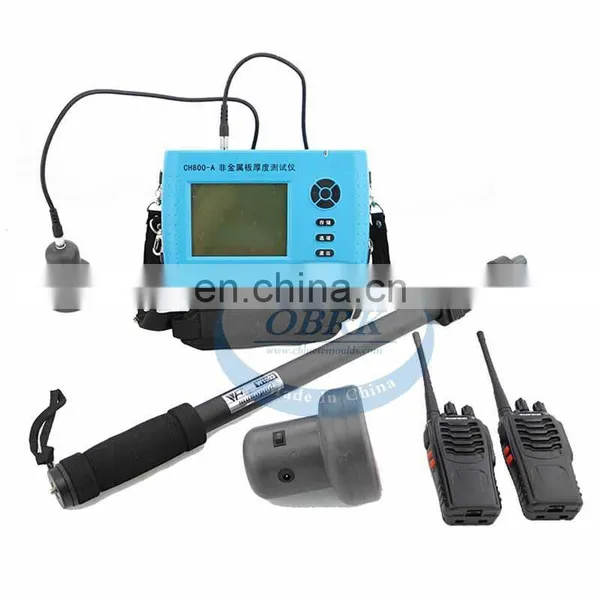

Convenient Digital Metal Concrete Integrated Floor Slab Thickness Gauge
Usge:
Testing concrete floor thickness Detection nonmetallic material thickness(Wall, beam, pillar, lumber, ceramic)
Product Features:
1.Host and receiving probe adopt fission style to decrease contact surface of receiving probe and floor.
2.Intelligent read result and automatic lock and real-time display thickness value reduce the human error and labor intensity.
3.Emission probe and receiving probe is wireless communication mode. No need to contact any wire.
4.Nondestructive testing of double surfaces. Floor does not need any treatment. No need coupling agent.
5.High test speed. Average 3 minutes could test 3-5 test points.
6.High test precision. Instrument provides data to guide to aim at the probe.
7.Thickness display directly. No need analysis conversion. The results can be stored and printed.
| Item name | Concrete Gauge Floor Slab Thickness Gauge |
| Test scope | 40mm~800mm |
| Permissible error | 40 ~ 600 mm ±1 mm |
| Permissible error | 601 ~ 800 mm ±2 mm |
| Data storage capacity | 3.2 group data |
| Transmitting probelayer | 100X120mm |
| Receiving probe | 60x80mm |
| Temperature | -10℃ to +40℃ |
| Standard | GB 50204-2002 |
| interface type | USB-B connector |
| Power supply | 9VDC Alkaline cell X 6 |
| Size | 230x150x70mm |
| Weight | 5Kg |
- Packaging Details Deval Abrasion Testing Machine is standard export wooden case.
- Port any port in china/Deval Abrasion Testing Machine
- We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe.
- We can ship By EMS,TNT,DHL and others ( door to door)
1. Installation and training:
(1). If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
(2). Without visiting, we will send you user manual and video to teach you to install and operate.
(3). If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
(1).One year guarantee for whole machine.
(2).24 hours technical support by email or calling
(3).If there is any problem found of the machine, we will repair it for free in one year.
Cangzhou Oubeiruike Instrument And Equipment Co., Ltd.
The company was founded in 2013, it is located in the hometown of Chinese Kung Fu Cangzhou. Here adjacent to the Beijing airport, Tianjin port. Huanghua port is a local port with convenient transportation. Oubeiruike is mainly engaged in the foreign trade of various instruments and equipments.
The Main products: concrete test mode, cement test mode, constant stress test machine, universal testing machine, test box, concrete and cement products performance test instruments and so on.
- Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester ....
- We assure high quality to you.
