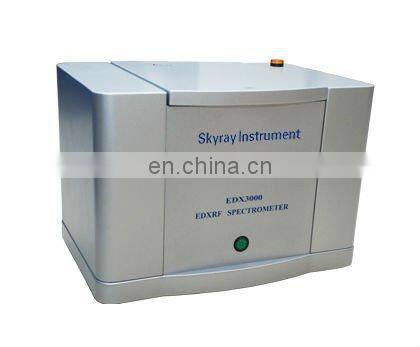

NAPCO Precision Gold Karat Tester EDX3000

NAPCO Precision Metal Tester EDX3000

Description and Specification

Instrument introduction

EDX3000 incorporates Napco’s years of experience in precious metal testing with its unique product configurations and fully functional software. Its ergonomically design and friendly software interfaces grant the users a simple measurement job.

Performance characteristics

Stable X-ray tube Electric-cooling Si-Pin detector instead of liquid nitrogen cooling detector.Napco patent product-Signal-to-Noise Enhancer (SNE) improves the stability and accuracy of the measurement greatly.

In-built high resolution camera, convenient for users to analyze samples at any moment.Digital pulse processor handles the data rapidly and accurately.Amplifier circuit.High and low voltage power.Single sample chamber, open and close manually, safe and convenient.Non-vacuum Chamber.This quotation include the cost of installation calibration, modification and training in purchaser’s place by Napco .

Oversea Engineer

Triple safety protection mode

Multi-variant non-linear regression procedure

independent matrix effect correction model

Overall steel structure; elegant and fashionable

Specially developed software with friendly interface

Accurate measurement even when no standard sample

Timely display of high definition graphs, carefree measurement

Technical specifications

Model: EDX3000

Measurable elements: Au, Ag, Pt, Pd, Cu, Zn, Ni, etc.

Analysis accuracy: 0.05%(above 96%)

Analysis range: 1ppm-99.99%

Forms of samples: powder, solid and liquid

Working voltage: AC 110V/220V (AC purified stabilized voltage power supply is suggested)

Ability of simultaneous analysis: 24 elements

Energy Resolution: (155±5)eV

Measurement time: 60-200s

Tube voltage: 5-50kV

Tube current: 50 -1000μA

Ambient temperature: 15°C-30°C

Ambient humidity: 35%-70%

Weight: 30KG

Standard configurations

Si-Pin detector,High voltage 5kv-50kv,X-ray tube 50uA-1000uA

SNE,MCA,Single sample chamber

Application fields Au,Ag, Pt, Pd, Cu, Zn, Ni, etc.

Electronic and Electric Appliances (RoHS)

Toy & Ceramics Metallurgy & Minerals
