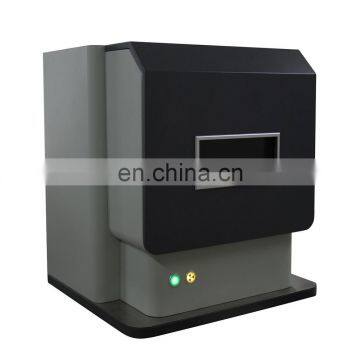

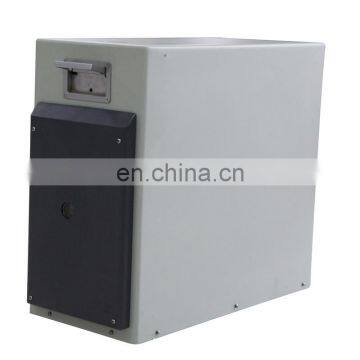

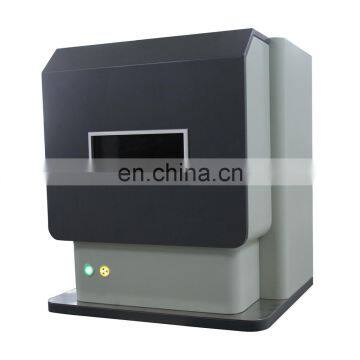

P9800 Energy Dispersion X-Ray Fluorescence Analyzer
A Full Range of Laboratory with exceptional new levels of performance
Specification
Fast and non-destructive compliance screening
Outstanding sensitivity and detection limits
Remarkable precision and accuracy
Measure lower than ever
Master the unknown regardless if they are liquid, solid or powder
Whether tree leaves, plastics, oil, granite or glass…
Elemental range:Na-U
Summary
P9800 Energy Dispersion X-Ray Fluorescence Analyzer is the most advanced all-element analytical instrument.XRF Analyzer specialized for powder sample detection adopts upper-irradiation instrumental structure, with X-ray tube excitation, detection by electrical refrigeration semiconductor detector, full spectrum analysis by 2048-channel digital spectrometer. The device with different measurement modes for light and heavy elements can accurately measure all the elements within Na-U and finish measurement of more than 30 elements at the same time. It is one of the important analytical tools in modern analytical chemistry.
Applications
The amazing P9800 Energy Dispersion X-Ray Fluorescence Analyzer excels at critical tasks from rapid screening analysis to precise product quality control. Apply it for processing in a variety of industries, for geology and mining, for environmental and waste monitoring, and for research and academia. The P9800 software tool provides an unprecedented ability to analyze unknown samples, regardless if they are liquid, solid or powder – whether tree leaves, plastics, oil, granite or glass…
Steel Industry: Pig iron, slag, mineral, ore, sinter, agglomerate, pellets, iron powder, iron ore, etc.
Cement Industry: Raw materials, clinker, cement, etc.
Refractory Material: mainly including high siliceous clay, high alumina bauxite, high magnesia magnesite, high chromia, corundum and other refractories.
Ceramic Enterprise: Raw material detection.
Nonferrous Industry(Mine): Auminum samples, lead and zinc ores(Pb-Zn mine), cooper ores(Cu mine), tinstone (Sn mine), silver ore(Ag mine), molybednum ore(Mo mine), etc.
Quality Inspection Department: Content analysis of industrial products including gold and silver.
Geological Industry: Geological prospecting, rock ore powder samples determination
Parameter
Item | Index |
Range of analyzed elements | Na~U |
Analytical range of element content | 1ppm~99.99% |
Measuring object status | Power Press Tablets |
Detector energy resolution | 130eV |
Digital multi-Channel analyzer | 2048 channels |
Energy range | 1~50KeV |
Tubular voltage | 5kV~50kV |
Tubular current | 50μA~1000μA |
Programmable gain control, adjustable within 1-65535; Offset | Adjustable within 0-4095 |
Lowest detection limit | Na≤0.1%; Mg, Al, Si≤0.01%; P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe≤0.001%; Pb, Zn, Cu, Mo, Cd, Ag,etc. ≤0.0001% |
Analytical precision | RSD Standard Deviation≤0.1% (statistics on data of a certain sample by 12 continuous analysis focused on main elements) |
Instrumental analytical error | a.|Instrumental Analytical Value - Real Value|≤National First-Class Standard Analytical Error, with passing rate 90% b.|Instrumental Analytical Value - Chemical Value|≤twice National First-Class Standard Analytical Error, with passing rate 95% |
