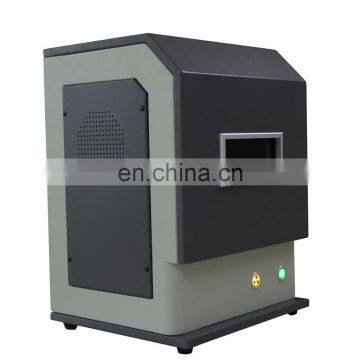

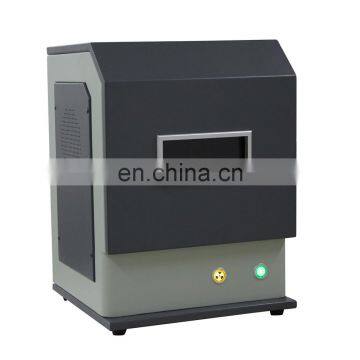

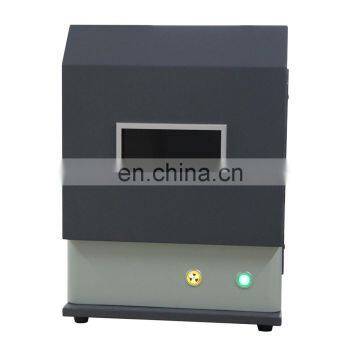

P9800S Full Elemental Cement Analyzer
Summary
Cement full elemental analyzer. The device uses digitized spectral analysis technology to analyze nine elements (Cl, K, Si, Mg, Al, S, P, Ca, Fe) in cement raw clinker at one time and automatically calculate the elemental composition of raw materials, with the analysis of speed, high precision, good stability, simple operation, low failure rate and other notable features of the cement enterprises used to control the production played a very good effect.
Applications
Cement manufacturing industry: raw materials, raw materials, clinker, cement and other ingredients analysis;
Limestone industry: Limestone various composition analysis.
Parameter
Item |
Index |
Elements |
Na, Mg, Al, Si, P, S, Cl, K, Ca, Mn, Fe analyzed by our instrument |
Sample demand |
10-15g |
Detector resolution |
Better than 140ev |
Tube voltage |
0-50Kv |
Tube current |
1~1000μA |
Analysis range |
1ppm-99.9% |
Energy range |
1-40keV |
Multi-element analysis at the same time |
9 kinds of elements can be analyzed simultaneously |
Measure time |
Only 1-3 minutes to get the content of all the elements that need to be measured |
Instrument analysis accuracy |
standard deviation≤0.08% |
Analysis error |
Better than the national standard requirements |
Radiation dose |
<25μsv/h |
Operation temperature |
10~35℃ |
Humidity |
30~70%RH |
Power supply |
AC 220V±10%, 50/60Hz |
