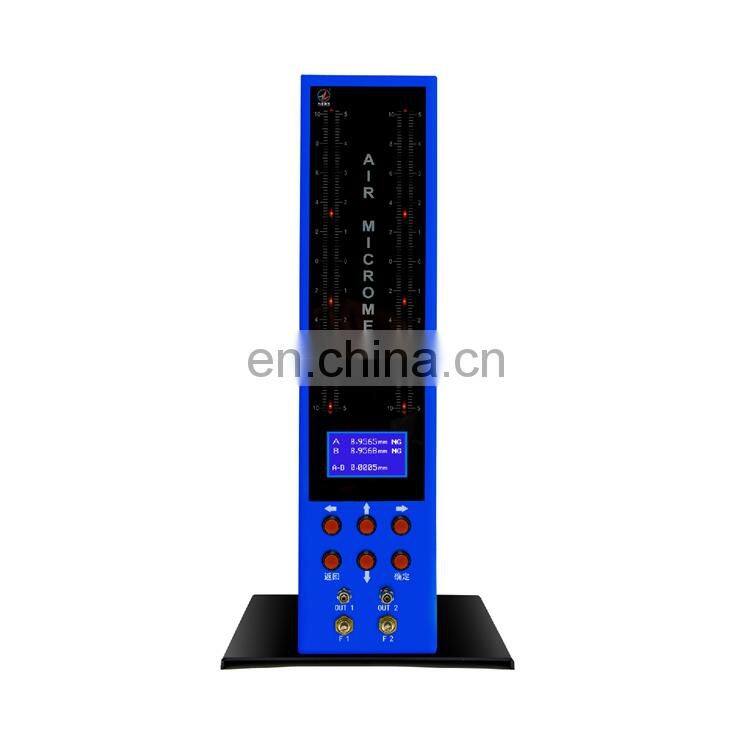

Help CenterDigital Electronic Column Types Inductance Micrometer
Related Products
-
High-precision Gas Momentum Meter Digital Air Pressure GaugeUS$ 1,100 - 1,100MOQ: 1 Set -
Air Micrometer Hole Diameter MeasurementUS$ 1,100 - 1,100MOQ: 1 Set
-
High Quality Float Type Pneumatic Measuring InstrumentUS$ 1,715 - 1,715MOQ: 1 Set
-
Air Gauge Pneumatic Measuring Instrument Air Electronic Digital Column MicrometerUS$ 1,715 - 1,715MOQ: 1 Set
-
Air Gauge UnitUS$ 500 - 500MOQ: 1 Set
Features
A fix magnification type with weight reduced compact body
Operation is simple, Compact and lightweight
At the same time display the relative value of the detection size, absolute value
Displays Max and Min values and its AVG
5 measurement ranges of 0.005mm~0.100mm
Display resolution of 0.0001mm~0.0010mm
101 dots 3 color LED bar (green, red, orange)
Pass/Fail assessments can be easily made via the three-color LED bar graph
Each channel ten sets of programs can be set to carry out a variety of measurements
Password for rewriting program protection.
Differential pressure sensor provided excellent stability reading
All models are shipped with a digital display function (operating mode or value of measurements).
Accommodates memory capture measurements and continuous capture measurements in addition to regular measurements.
2000 measurement data can be saved without loss of power failure
Specifications
|
Item |
EMA-200E Air Micrometer |
|
Detection method |
Semiconductor A/E conversion system |
|
Channel |
2 |
|
Display |
Three-color LED display, 101-dot, bar graph |
|
Digital display (displays mode, measurements and parameters) |
|
|
Judgement function |
Measurement and parameter ranking assessments: +NG, OK1-30 and +NG |
|
Operating display function |
Comes standard with 10 basic operational modes for single channel specs |
|
Measurement function |
Inner diameter, outer diameter, thickness, highness, taper, straightness, verticality, concentricity. Accommodates memory capture measurements and continuous capture measurements in addition to regular measurements. |
|
Output interface |
RS-485 |
|
Air pressure supplied |
300~700kPa |
|
Power |
100~240V±10% 50/60Hz 11VA |
|
Weight (Kg) |
2.8 |
|
Dimension (mm) |
50(W)*350(H)*200(D) |
|
Optional |
Audible alarm, USB, Air auto shut off, Wireless transmission, QR code with measurements |
Performance
|
Items |
Standard Performances |
||||
|
Measuring range |
5µm |
10µm |
25µm |
50µm |
100µm |
|
Display resolution |
0.1µm |
0.2µm |
0.5µm |
1.0µm |
2.0µm |
|
Max. measuring error |
0.2µm |
0.4µm |
1.0µm |
2.0µm |
4.0µm |
|
Repeatability |
0.1µm |
0.2µm |
0.5µm |
1.0µm |
2.0µm |
|
Response time |
Max 1.2s |
||||
