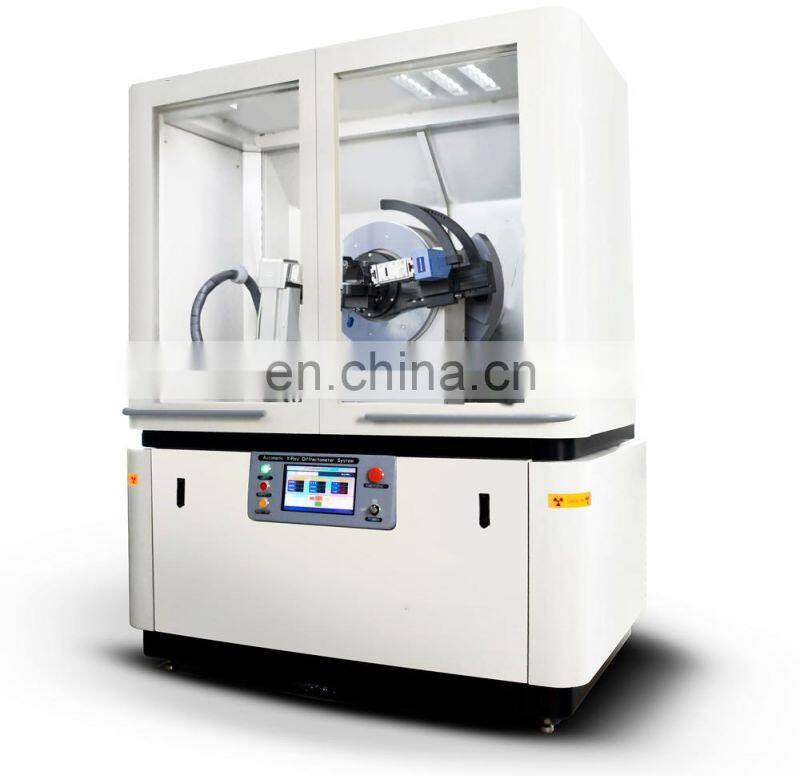

DJ-3700 X-ray Diffractometer
An ideal solution for materials research analysis
Unknown samples in a variety of phase identification
Mixed samples with known quantitative phase analysis
Crystal structure analysis
Crystal structure changes under Unconventional conditions
Analysis on material surface film
Analysis on metal material texture and stress
Summary:
The DJ-3700 is a versatile, high performance, high stability X-ray powder diffractometer that opens a new chapter in domestic diffractometers. With performance that keeps pace with the times. The newly designed TD Series X-Ray Diffractometer combines fast analysis, ease of operation and user-safety, with a modular hardware architecture and a software system tailored to the customer's needs.
Applications:
Further expand your application range with a wide range of accessories from Dr.J Technology based on excellent performance.
In clay mineral / cement building materials / environmental dust / food inspection / chemical products / drug inspection / asbestos / polymer / steel / non-ferrous metals / machinery / shipbuilding / welding / automotive / silicate / ceramic / cement / glass / catalyst / electrical components / electronic materials / magnetic materials / superconducting materials / building materials / fiber / paper / agricultural chemicals / dyes / pigments / coatings / ecological materials / oil / coal / electricity / ore / soil / rock / environment, etc.
l Phase identification
l Precision calculation of unit cell parameters
l Crystallinity, grain size and distortion
l Rietvild crystal structure analysis
l Quantitative analysis
l Residual stress analysis
l Texture test
l Paralympic test
l In situ test
l Particle size distribution
l Micro area test
l Multi-purpose film testing, etc.
l Transmission
Parameters:
X-ray Tube (domestic or imported) |
Target: Optional targets such as Cu, Fe, Co, Cr, Mo, W (metal or ceramic optional) Focus Size: 1×10 mm 2 or 0.4 × 14m m2 Rated power: 2.4kW or 2.7kW (ceramic tube or metal cermic tube technology) |
X-ray Generator (PLC control) |
Maximum output power: 3kW high frequency high voltage generator (domestic /import) X-ray tube voltage: 10-60kV, 0.1kV/step X-ray tube current: 5~50mA, 0.1mAVstep Output stability: ≤0.01% (power supply fluctuation±10%) |
Goniometer |
Goniometer structure Hollow shaft vertical goniometer θs-θd structure (sample level is fixed) Goniometer scanning radius: Standard 225mm (150~285mm continuously adjustable) Scanning range: -110°~160° Scan speed: 0.006°~120°/min Positioning speed: 1200°/min Drive mode: θs-θd linkage, θs-θd single Scan mode: Stepping, continuous, segmentation, transmission scannin Minimum step angle: 0.0001° measurement accuracy: ≤0.001° 2θ angle repeatability: 0.0002° |
Recording control unit (Detector) |
Detector Type: Array Detector Maximum linear count rate: up to 1X10℃cps (noise diffraction intensity is more than 100 times that of SC DCS controller readout time is only 89µs Dynamic range: [bit] 24 Energy range [keV]4-40 * Read time: [µs] 89 Energy resolution (rms): [eV]687±5 |
Safety Protection Alarm |
KV and mA are too high or too low, overload protection, no water alarm, X-ray tube over-temperature and other multiple protection, to prevent radiation leakage, protective door interlock protection and platform lead shielding protection |
X-ray leakage |
≤0.1µSv/h (maximum power of X-ray tube, without subtracting the background) |
Stability |
≤0.5%(40kV, 40Ma, continuous for 8 hours) |
Dimensions(main body) |
1170mmx870mmx1800mm (LengthxWidthxHeight) |
Transmission |
Industrial Ethernet |
