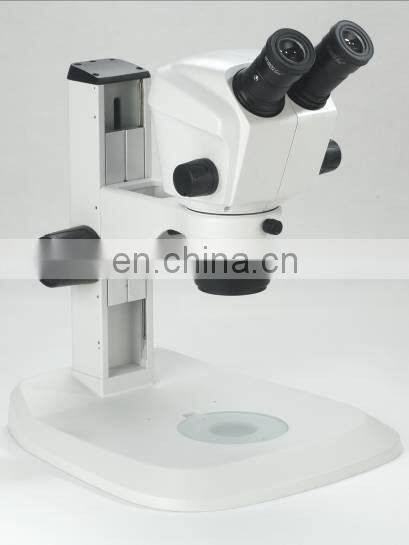

Help CenterHigh Resolution Optical Instrument Stereo Zoom Microscope
Related Products
-
Factory Supplied USB Binocular Zoom Stereoscopic MicroscopeUS$ 300 - 600MOQ: 1 Piece -
Easy Operation Trinocular Electronic Zoom Stereo MicroscopioUS$ 300 - 600MOQ: 1 Piece
-
High End Material Biological USB Digital Stereo Zoom Trinocular MicroscopeUS$ 300 - 600MOQ: 1 Piece
-
Biological Compound Stereo Zoom Microscope With Aluminum Alloy PadUS$ 300 - 600MOQ: 1 Piece
-
Laboratory Scanning Digital Electron Binocular Stereo Zoom MicroscopeUS$ 300 - 600MOQ: 1 Piece
SZ650 Main Technical Specification
|
Model |
SZ650 |
SZ680 |
SZ780 |
|
Objectives Zoom Range |
0.7X-4.5X |
0.68X-4.7X |
0.66X-5.1X |
|
Zoom Ratio |
1 : 6.5 |
1 : 6.8 |
1 : 7.8 |
|
Field Diameter (mm) |
Φ22 |
Φ23 |
Φ24 |
|
Working Distance (mm) |
110 |
110 |
110 |
|
Stereo Angle ( °) |
12 |
12 |
12 |
|
35 |
35 |
||
|
Interpupillary Adjustable Distance (mm) |
50-75 |
50-75 |
50-75 |
|
Video Output Distribution |
NO |
0:100 standard |
|
|
50:50 optional |
|||
|
Guide Rail Stand Focusing Distance (mm) |
80 |
||
|
Pillar Stand Focusing Distance (mm) |
115 |
||
SZ650 Series Objective & Eyepiece Parameter List (0.7×-4.5×)
|
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
110mm |
36mm |
|
|
10XEyepiece/Φ22mm |
Magnification |
3.5~22.5 |
7~45 |
14~90 |
|
Field dia. (mm) |
62.9~9.8 |
31.43~4.89 |
15.71~2.44 |
|
|
15XEyepiece/Φ16mm |
Magnification |
5.25~33.75 |
10.5~67.5 |
21~135 |
|
Field dia. (mm) |
45.71~7.11 |
22.86~3.56 |
11.43~1.78 |
|
|
20XEyepiece/Φ12mm |
Magnification |
7~45 |
14~90 |
28~180 |
|
Field dia.(mm) |
34.28~5.33 |
17.14~2.67 |
8.57~1.33 |
|
SZ650/680/780 Series Zoom Stereo Microscope Outfit
|
Items |
SZ650BP |
SZ650B2L |
SZ680BP |
SZ680B2L |
SZ780BP |
SZ780B2L |
|
|
Main Body |
Binocular |
√ |
√ |
√ |
√ |
√ |
√ |
|
Trinocular |
|
|
× |
× |
× |
× |
|
|
10XEyepiece/Φ22mm |
√√ |
√√ |
|
|
|
|
|
|
10XEyepiece/Φ23mm |
|
|
√√ |
√√ |
|
|
|
|
10XEyepiece/Φ24mm |
|
|
|
|
√√ |
√√ |
|
|
15XEyepiece/Φ16 mm |
×× |
×× |
×× |
×× |
×× |
×× |
|
|
20XEyepiece/Φ12mm |
×× |
×× |
×× |
×× |
×× |
×× |
|
|
0.5X/2X Objective |
× |
× |
× |
× |
× |
× |
|
|
Focusing unit |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
No light |
√ |
|
√ |
|
√ |
|
|
|
Reflecting 3W LED |
|
√ |
|
√ |
|
√ |
|
|
Transmitting 3W LED |
|
√ |
|
√ |
|
√ |
|
|
Black & white Plate |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
Glass Plate |
|
√ |
|
√ |
|
√ |
|
|
Arm stand |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
Pillar stand |
× |
× |
× |
× |
× |
× |
|
|
Focusing Arm stand |
× |
× |
× |
× |
× |
× |
|
|
Base (330×300mm) |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
C-mount 0.5X,0.7X,1X |
|
|
× |
× |
× |
× |
|
Note:"√" In Table Is Standard Outfits, "×" Is Optional Accessories.
