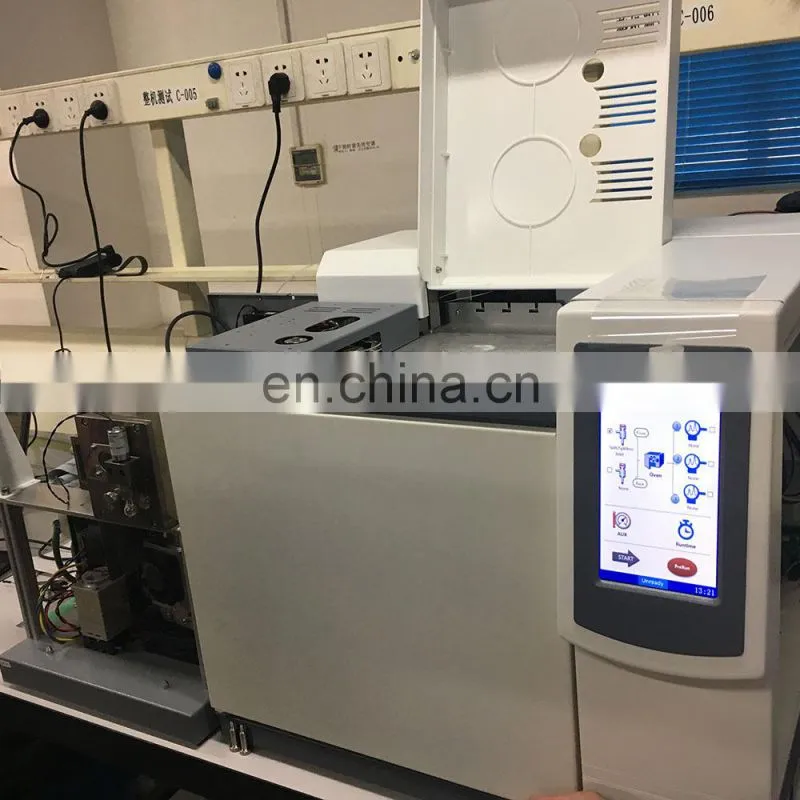

DW-GC1290 Gas Chromatography
Features:
1.Control system: designed for monitoring and controlling the instrument via the computer.
2.Column Compartment/oven with superior thermal performance, multistage (20 ramps) programmed temperature control function. (supported by “control system”)
3.Advanced built-in data acquisition system , supporting real time instrument status monitoring, detection signal acquisition and PC control
4.Column oven supports quick heat-up and rapid cool-down with automated back-door opening.
5.Flexible sample introduction system: 2 sample injectors could be installed and operated simultaneously with independent temperature control.
6.High sensibility and stability detector.
7.2 independent and analog signals output.
8.M6 software, compatible with GLP/FDA-21 CFR Part11 requirements and regulations. (electronic records and signatures)
Electronic pneumatics control system:
| Flow rate | 200ml/min (N2), 1000ml/min (He) |
| Flow rate accuracy | ±5% |
| Flow rate repeatability | ±0.35% |
| Split ratio | 0-5000(He), 0-1000(N2) |
| Inlet temperature | 0-420℃ |
Gas chromatography and accessories:
Carrier Gas System + Sample Introduction System + Separation System + Temperature Control System + Detector
Carrier Gas System: air source/ purification and desiccation device/ flow rate control device
Sample Introduction System: sample injector
Separation System: chromatographic column(packed column and capillary column)
Temperature Control System (Column Oven): constant temperature and programmed temperature
Detector: FID/ FPD/ NPD
Advanced Microcomputer Control System:
1.Superior performance with advanced, microcomputer-based temperature control system
2.High temperature accuracy (optimum ± 0.02℃), high reliability, and anti-interference
3.Self-diagnosis/ self-protection function (overheat protection, power-off protection, etc.)
4.Intuitive display of timing program, detector status, measurement range, current setting, etc
