Home > Instruments & Meters > Analysis Instrument > Gas Analyzer > High Quality Real Time PCR Machine With Six Channels With Gradients Gentier 96E

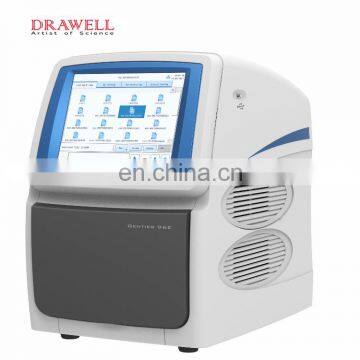

High Quality Real Time PCR Machine With Six Channels With Gradients Gentier 96E
US$ 18,500 - 22,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Drawell
Place of Origin:
China
Model Number:
96E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Channel Gradient Real Time Pcr Machine PriceUS$ 12,000 - 21,000MOQ: 1 Piece -
Gentier 48R Real Time Quantitative PCRUS$ 6,000 - 10,000MOQ: 1 Piece
-
Gentier 96R Real Time Quantitative PCR System Fluorescent PCR MachineUS$ 16,250 - 17,000MOQ: 1 Piece
-
Professional Gradient PCR Thermal Cycler With 96 Well PlateUS$ 500 - 20,000MOQ: 1 Piece
-
Desktop Vercital Air Flow Cabinet LaminarUS$ 247 - 247MOQ: 1 Piece
Brand Name
Drawell
Place of Origin
China
Model Number
96E
Product Description
Specification
Thermal Block | ||
Sample capacity(wells) | 96 | |
Reaction Volume | 0-100 μL | |
Consumables | 0.2ml 96-well Plates（unskirt）; 0.2ml 8-strip tubes ,0.2ml PCR single tube(Optical flat cap,clear，frosted，white tube) | |
Temperature range | 0°C-100°C | |
Heating/cooling method | Peltier | |
Max heating rate | 6.1°C/sec | |
Average heating rate | 4.5°C/sec | |
Max cooling rate | 5.0°C/sec | |
Average cooling rate | 2.8°C/sec | |
Temperature accuracy | ±0.1℃ | |
Temperature uniformity | ±0.1℃ | |
Gradient Range | 1°C-40°C | |
Gradient block | 12 row | |
Special temperature portocol | Gradient PCR,Long PCR,Touch Down PCR | |
Heat Lid | ||
Temperature range | Room Temperature–110°C | |
Optical System | ||
Excitation Source | 6 LEDs | |
Detector | Photodiode | |
Detection Position | Excitation and scan at top | |
Detection method | 6 channels scanning at the same time, no edge effect. | |
Detection time | 7 seconds for 96 wells for all channels | |
Range of excitation/ emission wavelengths (nm) | 1 465 /510 (FAM,SYBR Green I，SYTO9，EvaGreen，LC Green) 2 527/ 563 (HEX,VIC,TET,JOE) 3 580 /616 (ROX,Texas Red) 4 632/ 664( Cy5) 5 680 /730 (Alexa Fluor680) 6 465 /616 (FRET) | |
Probe | Taqman Probe,Molecular beacons probe,Scorpion probe ,FRET | |
Multiplexing | Up to 6 targets | |
Fluorescence Linearity | r≥0.990 | |
Fluorescence Dynamic Range | Adjustable | |
Performance | ||
Sample Linearity | /r/≥0.999 | |
Sample repeatability | Ct value CV≤0.5% | |
Sample Dynamic Range | 1-1010 copies | |
Software Funtions | ||
Data Analysis modes | Qualitative analysis,Absolute quantification, Relative quantification,Genotyping analysis,Endpoint analysis， Melt curve analysis, High Resolution Melting | |
Control modes | 1.10.4' touch screen 2. PC direct control 3. WLAN control(One PC can control max 10 units, and device can be controled by any PC in the WLAN) | |
Sample Drawer | Touch sreen commend | |
Data Stroage | Upload and download through USB disk,1000 results can be stored in machine | |
Power failure protection | Automaticly start running experiments after power supply, no need wait PC software | |
Customize Report | Templetes reserved ,report can customized | |
Administration Management | Administrator can set funtions limts for users | |
Transport Locker | Automaticly detect transport locker | |
Fault Management | Fault report and analysis, solution instruction | |
LIS connection | CSV,Excel,TXT format data output,open port for LIS connection | |
Others | ||
PC operating system | Win 7, Win 10 | |
Communication Port | 1 ethernet and 3 USB | |
Footprint(WxDxH) | 355mm X 480mm X 485mm | |
Weight | 30kg | |
Power usage | AC 100 to 125 V / 200 to 240 V (50/60 Hz). | |
power consumption | 900VA | |
Work environment | Tempereture:10°C~30°C Humidity:20%~85% | |

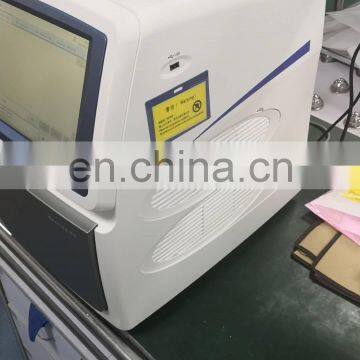

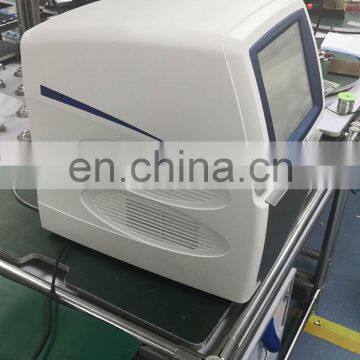

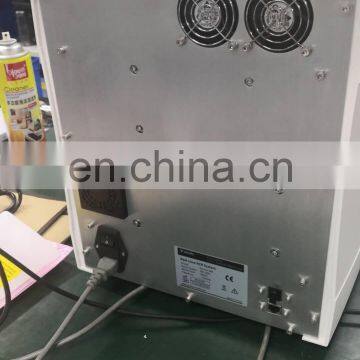

Details Images
