XRD Analyzers X Ray Diffractometer

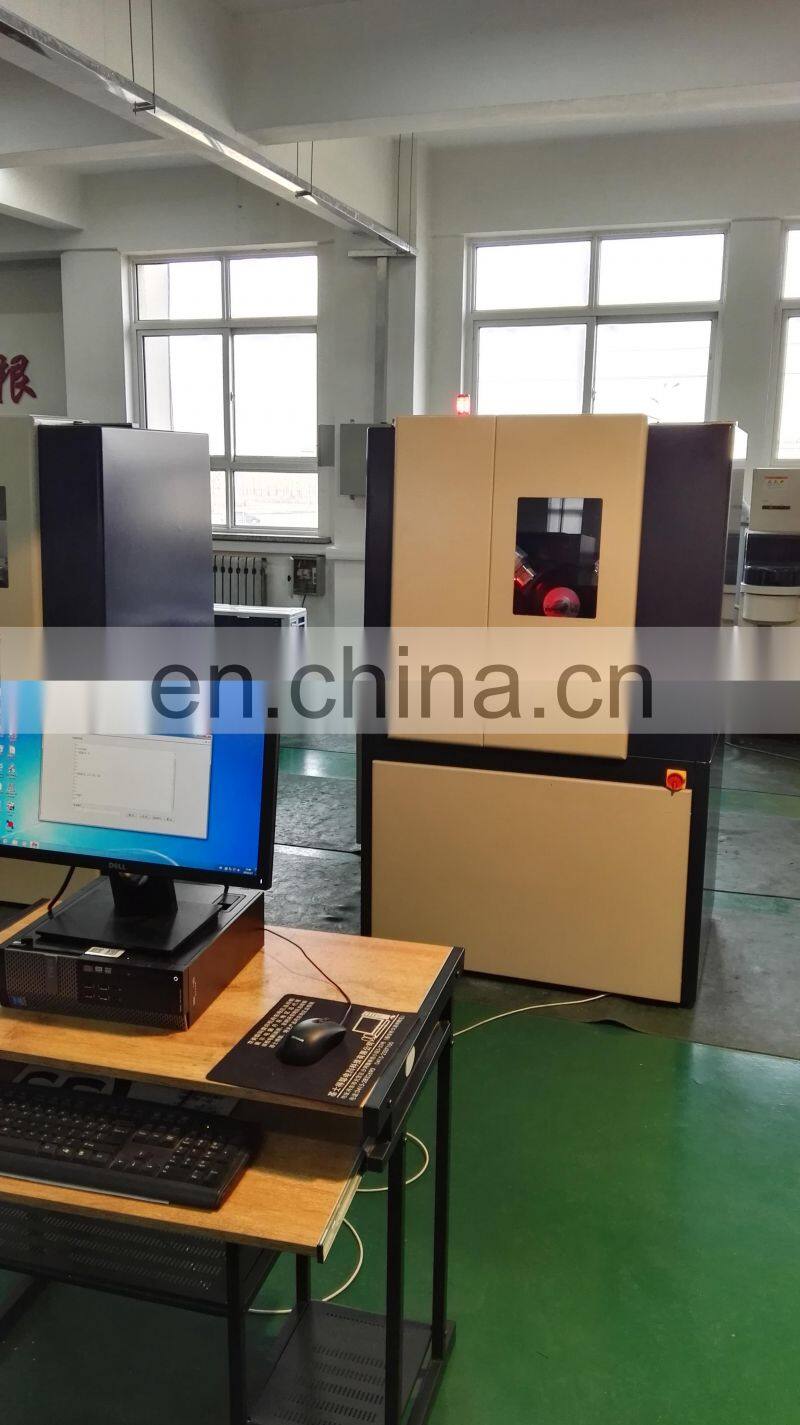

Product Name

Combined Multi-functional X-ray Diffractometer

Model No.

DW-XRD-2700A

Rated power

3kW(HF,HV control technology)

Tube voltage

10-60kV

Tube current

5-50mA

X-ray tube

Metal ceramic tube / Target material: Cu, Fe, Co, Cr, Mo, etc / Power:2.4kW

Focus size

1x10mm  or  0.4x14mm   or  2x12mm

Stability

≤0.005%

Goniometer structure

Sample level (θ-θ)

Radius of diffraction

225mm(or custom by request:150-285mmrange)

2θ Scanning range

-6~160°(θs:-3~80°, θd:-3~80°)

Scanning speed

0.0012°-50°/min

Angle locating speed

1500°/min

Scanning fashion

θs/θd  dlinkage/single action;  continuous, stepping and Omg

Minimal stepping angle

1/10000°

Angle repeatable accuracy

1/10000°

2θ Angular linearity

International standard sample(Si,AI203),the angle deviation of all peak in full spectrum are not more than ±0.02°

Detector

Proportional counters(PC) or scintillation counter(SC),Silicon drift detector(SDD),High speed one-dimensional semiconductor array detector

Maximal counting rate of linearity

5x10⁵CPS(PC,SC with the compensate function of miss counting),15x10⁴CPS(SDD), 9X10⁷CPS(one-dimensional semiconductor array detector)

Energy resolution ratio

≤25%(PC,one-dimensional array),≤50%(SC),≤200eV(SDD)

Counting fashion

Differential coefficient or integral, PHA automatically, dead time regulate

Stability of system measure

≤0.01%

Scattered rays dose

≤1μSv/h (without X-ray protective device)

Instrument integrative stability

≤0.1%

Figure size

1000 x 800 x 1600

 Name

Components

Unit

Qty

Remark

X-ray high-voltage generator

 1508 high-voltage transformer

set

1

 X27.05 high voltage cable(100kVP)

piece

1

Length:3.0m

 3310 pipe sleeve(including automatic  optical shutter)

set

1

 X25.07 X-ray generator auto control system

set

1

Including 1 piece of power cable

 X25.01 stage(Metal shell)

set

1

Lead+ lead glass protection

 DS2901/24 Metal ceramic insulation X-ray tube

piece

1

Cu target, 2.4kW

Goniometer System

 DG-3512H goniometer (θ-θ)

set

1

 Slit and powder sample holder

set

1

1 set for each

 Through-hole sample plate

piece

5

Aluminium matrix

 Blind-hole sample plate

piece

10

Quartz matrix

 Filter

piece

1

Match with target material

 Slit Plate and Lighting System Adjustment Accessories

set

1

Recording and controlling system

Closed proportional detector

set

1

Recording and controlling unit

set

1

Motor and communication cable

set

1

2 motor cables, 1 communication cable

Power supply unit

set

1

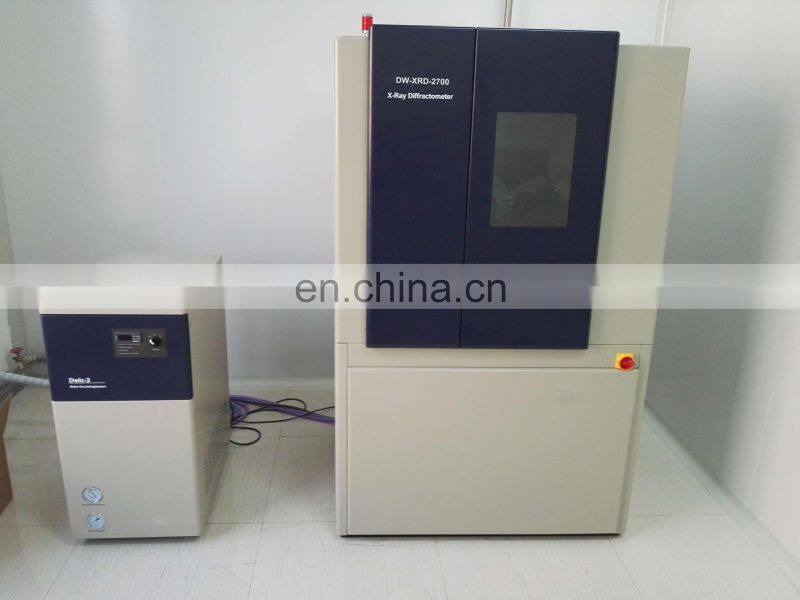

Circulating water cooling system

 Circulating water cooling system

set

1

Split type

 Circulating water connecting tube

piece

2

PC system

CPU: Intel i series; RAM: 4G; Hard drive: 500G; 19 inch LED; GPU: high performance HD series.

set

1

DELL

A4 laser printer

set

1

System Control and Applicable Software

 AL Series Diffractometer Control Program Software

set

1

Windows7

Diffraction data processing software

set

1

 Diffraction data card base: PDF4-2004

set

1

 Crystal Structure Data Base : ICSD-2004

set

1

Technical documents

 AL series XRD user manual

copy

1

 Data Process and Applicable Software User Manual

copy

1

Circulating Water Cooling System User Manual

copy

1

Spare parts

 Fuses 1,1.5,2,2.5,3,3+(A)

piece

10

10 pieces for each

 Tools

set

1

 Agate Mortar diameter 100mm

set

1

 Graphite monochromator

set

1

Reflectivity>28%
