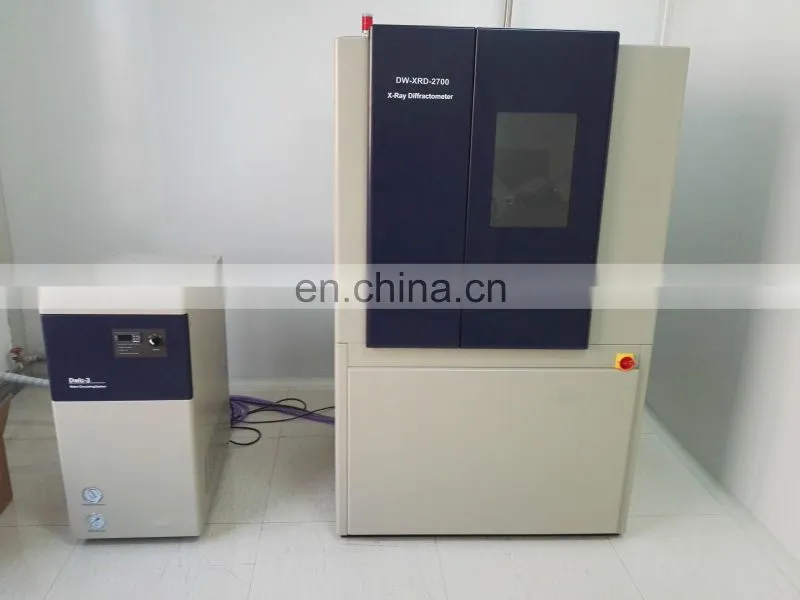

Help CenterX Ray Diffractometer XRD Machine DW-XRD-2700A
Related Products
-
NIR Spectrophotometer DW-S430US$ 5,000 - 9,900MOQ: 1 Piece -
AA320n Atomic Absorption SpectrophotometerUS$ 4,000 - 17,000MOQ: 1 Piece
-
Metal Analysis Atomic Fluorescence SpectrometerUS$ 9,000 - 15,000MOQ: 1 Piece
-
Hollow Cathode Lamp Aas Lamp (HCL)US$ 180 - 180MOQ: 1 Piece
-
DW-AA4530F Atomic Absorption Spectrophotometer PriceUS$ 13,900 - 14,100MOQ: 1 Piece
Combined Multi-functional X-ray Diffractometer | |
Model No. | DW-XRD-2700A |
Rated power | 3kW(HF,HV control technology) |
Tube voltage | 10-60kV |
Tube current | 5-50mA |
X-ray tube | Metal ceramic tube / Target material: Cu, Fe, Co, Cr, Mo, etc / Power:2.4kW |
Focus size | 1x10mm or 0.4x14mm or 2x12mm |
Stability | ≤0.005% |
Goniometer structure | Sample level (θ-θ) |
Radius of diffraction | 225mm(or custom by request:150-285mmrange) |
2θ Scanning range | -6~160°(θs:-3~80°, θd:-3~80°) |
Scanning speed | 0.0012°-50°/min |
Angle locating speed | 1500°/min |
Scanning fashion | θs/θd dlinkage/single action; continuous, stepping and Omg |
Minimal stepping angle | 1/10000° |
Angle repeatable accuracy | 1/10000° |
2θ Angular linearity | International standard sample(Si,AI203),the angle deviation of all peak in full spectrum are not more than ±0.02° |
Detector | Proportional counters(PC) or scintillation counter(SC),Silicon drift detector(SDD),High speed one-dimensional semiconductor array detector |
Maximal counting rate of linearity | 5x105CPS(PC,SC with the compensate function of miss counting),15x104CPS(SDD), 9X107CPS(one-dimensional semiconductor array detector) |
Energy resolution ratio | ≤25%(PC,one-dimensional array),≤50%(SC),≤200eV(SDD) |
Counting fashion | Differential coefficient or integral, PHA automatically, dead time regulate |
Stability of system measure | |
Scattered rays dose | ≤1μSv/h (without X-ray protective device) |
Instrument integrative stability | ≤0.1% |
Figure size | 1000 x 800 x 1600 |
Configuration Table
Name | Components | Unit | Qty | Remark |
X-ray high-voltage generator | 1508 high-voltage transformer | set | 1 |
|
X27.05 high voltage cable(100kVP) | piece | 1 | Length:3.0m | |
3310 pipe sleeve(including automatic optical shutter) | set | 1 |
| |
X25.07 X-ray generator auto control system | set | 1 | Including 1 piece of power cable | |
X25.01 stage(Metal shell) | set | 1 | Lead+ lead glass protection | |
DS2901/24 Metal ceramic insulation X-ray tube | piece | 1 | Cu target, 2.4kW | |
Goniometer System | DG-3512H goniometer (θ-θ) | set | 1 |
|
Slit and powder sample holder | set | 1 | 1 set for each | |
Through-hole sample plate | piece | 5 | Aluminium matrix | |
Blind-hole sample plate | piece | 10 | Quartz matrix | |
Filter | piece | 1 | Match with target material | |
Slit Plate and Lighting System Adjustment Accessories | set | 1 |
| |
Recording and controlling system | Closed proportional detector | set | 1 |
|
Recording and controlling unit | set | 1 |
| |
Motor and communication cable | set | 1 | 2 motor cables, 1 communication cable | |
Power supply unit | set | 1 |
| |
Circulating water cooling system | Circulating water cooling system | set | 1 | Split type |
Circulating water connecting tube | piece | 2 |
| |
PC system | CPU: Intel i series; RAM: 4G; Hard drive: 500G; 19 inch LED; GPU: high performance HD series. | set
| 1
| DELL |
A4 laser printer | set | 1 |
| |
System Control and Applicable Software | AL Series Diffractometer Control Program Software | set | 1 | Windows7 |
Diffraction data processing software | set | 1 |
| |
Diffraction data card base: PDF4-2004 | set | 1 |
| |
Crystal Structure Data Base : ICSD-2004 | set | 1 |
| |
Technical documents | AL series XRD user manual | copy | 1 |
|
Data Process and Applicable Software User Manual | copy | 1 |
| |
Circulating Water Cooling System User Manual | copy | 1 |
| |
Spare parts | Fuses 1,1.5,2,2.5,3,3+(A) | piece | 10 | 10 pieces for each |
Tools | set | 1 |
| |
Agate Mortar diameter 100mm | set | 1 |
| |
Graphite monochromator | set | 1 | Reflectivity>28% |
