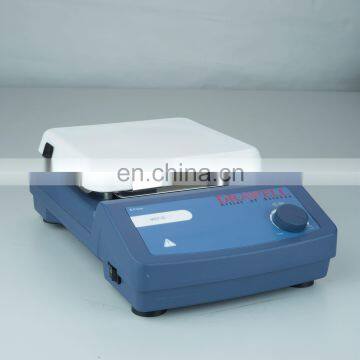

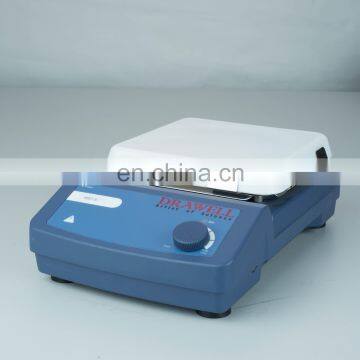

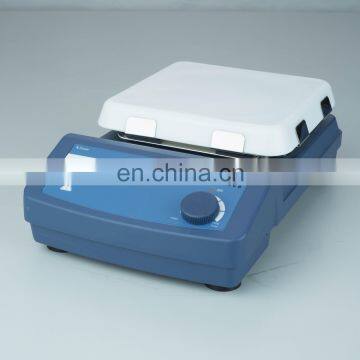

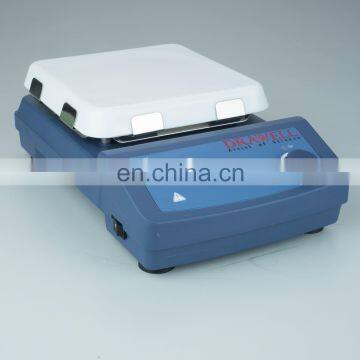

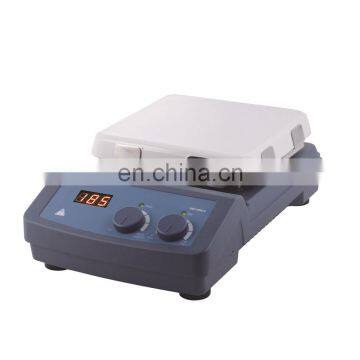

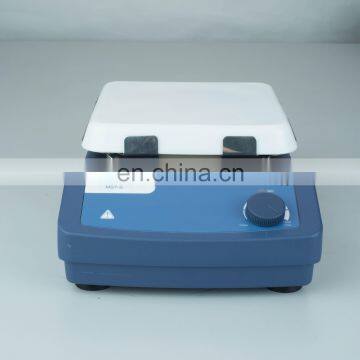

MS7-H550-S LED Digital Magnetic Hotplate Stirrer

Name: MS7-H550-S LED Digital Magnetic Hotplate Stirrer
Brand: Drawell
Price: USD $200 - 400 / Piece

FOB Price

USD $200 - $400 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Drawell

Place of Origin:

Shanghai, China

Model Number:

MS7-H550-S

Product Description

MS7-H550-S

•   LED display for precise monitoring of temperature
•   A wide speed range of 0 to 1500rpm
•   Max. Heating plate temperature 550°C
•   External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
•   The “HOT” warning will flash if the work plate temperature is above 50°C

Specifications	MS7-H550-S
Work plate Dimension [W x D]	184x184mm (7 inch)
Work plate material	Glass ceramic
Motor type	Shaded pole motor
Motor rating input	15W
Motor rating output	1.5W
Power	1030W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity, [H2O]	10L
Max. magnetic bar[length]	80mm
Speed range	0-1500rpm
Speed display	Scale
Temperature display	LED
Heating temperature range	Room temp.-550°C, increment 5°C
Temperature control accuracy	±10°C
Overheating protection	580°C
Temperature display accuracy	±1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" warning	50°C
Protection class	IP21
Dimension [WxDxH]	215x360x112mm
Weight	4.5kg
Permissible ambient temperature and humidity	5-40°C, 80%RH
