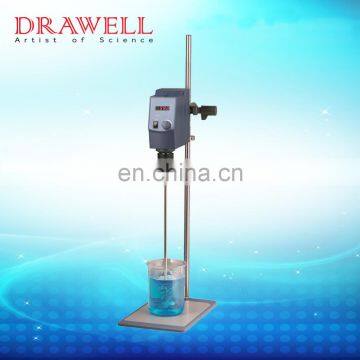

LED Digital Overhead Stirrer High Performance

FOB Price

USD $200 - $500 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Drawell		Place of Origin	Shanghai, China
Model Number	OS40-S/OS20-S

OS40-S

· High reliability and outstanding performance.

· A wide range of speed from 50 to 2200rpm.

· Brushless DC motor for long life, maintenance free and explosion proof.

· LED screen for monitoring actual speed.

· Safety circuits allow for safe stop function in anti-stall or overload conditions.

Specifications	OS40-S
Max. stirring quantity(H2O)	40L
Motor type	brushless DC motor
Motor input power	120W
Motor output power	100W
Voltage	100-220V, 50/60 Hz
Power	130W
Speed range	50-2200rpm
Speed display accuracy	±3rpm
Speed display	LED
Overload protection display	LED lights
Max. torque	60Ncm
Viscosity max.	50000mPas
Chuck range diameter	0.5-10mm
Dimension[WxHxD]	83x.220x186mm
Weight	2.8kg
Protection class	IP42
Permissible ambient temperature and humidity	5-40°C 80%RH

OS20-S

· High reliability and outstanding performance.

· A wide range of speed from 50 to 2200rpm.

· Brushless DC motor for long life, maintenance free and explosion proof.

· LED screen for monitoring actual speed.

· Safety circuits allow for safe stop function in anti-stall or overload conditions.

Specifications	OS20-S
Max. stirring quantity(H2O)	20L
Motor type	brushless DC motor
Motor input power	60W
Motor output power	50W
Voltage	100-220V, 50/60 Hz
Power	70W
Speed range	50-2200rpm
Speed display accuracy	±3rpm
Speed display	LED
Overload protection display	LED lights
Max. torque	40Ncm
Viscosity max.	10000mPas
Chuck range diameter	0.5-10mm
Dimension[WxHxD]	83x220x186mm
Weight	2.8kg
Protection class	IP42
Permissible ambient temperature and humidity	5-40°C, 80%RH
