Product Details
Brand Name: | DRAWELL | Place of Origin: | China | Model Number: | MS-H-ProT |
Product Description

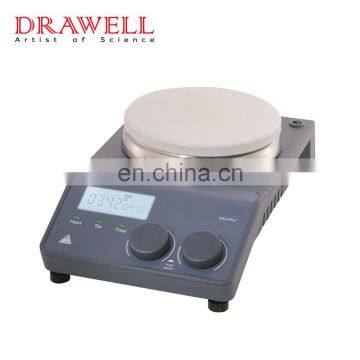

LCD Digital Magnetic Hotplate Stirrer with Timer
Model: MS-H-ProT
Features:
Safe Heating and Mixing
• Conforms to international safety standards and regulations
• Brushless DC motor is maintenance free and explosion-proof
• Fully closed aluminum alloy casing has a high IP protection class(IP42)
• The temperature sensor consists of two independent safety circuits, which switches off heating in case of any over temperature situation
• "HOT" sign warning to prevent burns, even if switched off.
Precise temperature and speed control
• Temperature is up to 340°C
• Intergrated temperature sensor PT 1000 for precise temperature control. Control accuracy is ±0.2°C
• Excellent heat control accuracy at the work plate: ±1(<100°C) ±1%(>100°C)
• Electronic speed control, max speed is 1500rpm.
Convenient
• Digital process timer allows for unattended operation and can be set from 1min to 99h 59min. When the set time has elapsed, the operation stops
• Backlit LCD display target and actual temperatures and speed
• Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode.
• Stainless steel with ceramic coated hotplate allows immediate heat transfer for quick heat-up times, chemical-resistant and scratch proof
• Max. stirring quantity 20L
• PC can control and document all parameters via RS232 interface
• Used with a wide variety of accessories
Work plate dimension | φ135mm(5 inch) |
Work plate material | stainless steel cover with ceramic |
Motor type | Brushless DC motor |
Motor rating input | 18W |
Motor rating output | 10W |
Power | 550W |
Heating output | 500W |
Voltage | 100-120/200-240V 50/60Hz |
Stirring positions | 1 |
Max. stirring quantity[H2O] | 20L |
Max. magnetic bar[length] | 80mm |
Speed range | 100-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Heating temperature range | Room temp.-340°C, increment 1°C |
Temperature control accuracy | ±1°C(<100°C) |
Over temperature protection | 360°C |
Temperature display accuracy | ±0.1°C |
External temperature sensor | PT1000 (accuracy ±0.2) |
"Hot" warning | 50°C |
Timer function | 1min to 99h 59min |
Data connector | RS232 |
Protection class | IP42 |
Dimension[WxDxH] | 160×280×85mm |
Weight | 2.8kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
