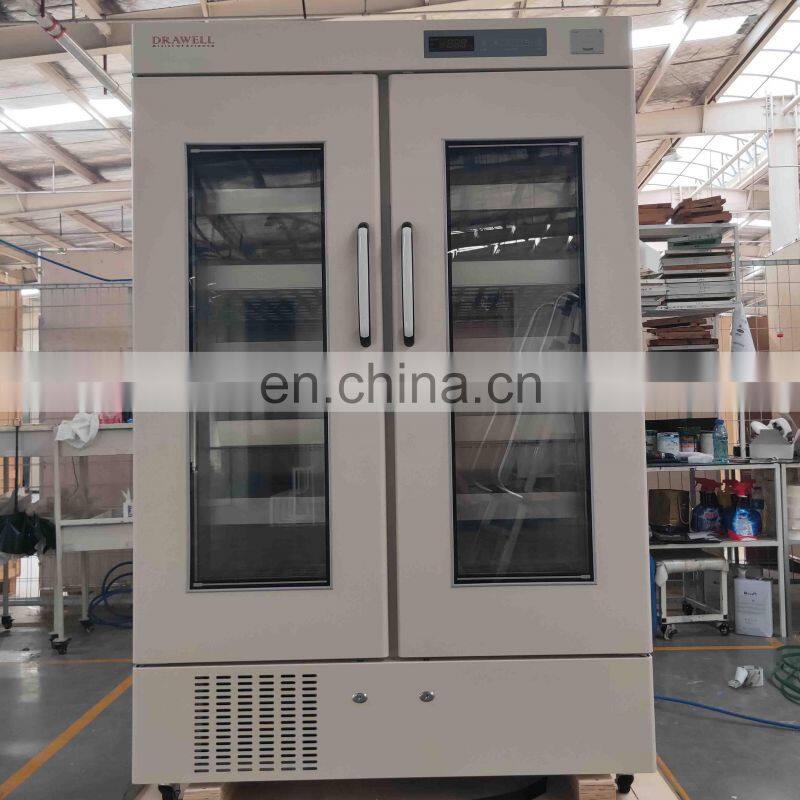

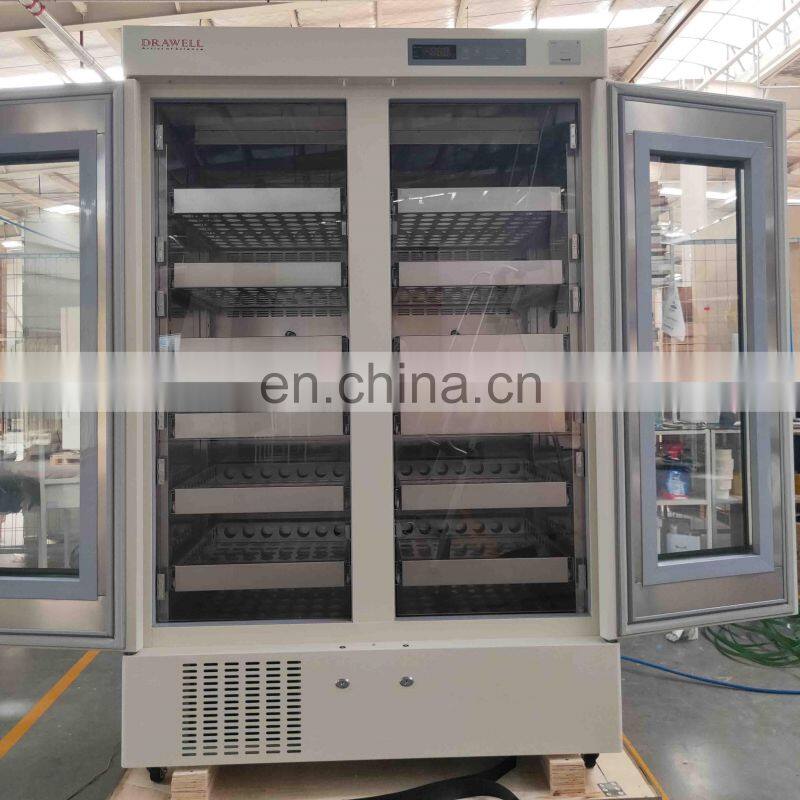

Double Door Blood Bank Refrigerator

FOB Price

US$ 500 - 22,000 / Piece

1 Piece(Min. Order)

Port Shanghai/Chongqing/Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Drawell		Place of Origin	Shanghai, China
Model Number	MBC-4V1008

Product Description

4℃ Blood Bank Refrigerator

Appliance Area:
Special for blood storage as well as medicine storage,bio-products storage.
Suitable for blood stations, hospitals and CDC.

Temperature Control:

1.Controlled,displayed and alarmed with high precised sensor,
intelligent controlled fan and forced-air cooling system, microprocessor-based temperature controller,display,temperature resolution is 0.1℃,inside temperature is 4±1℃

2.Security:
Double digital display of two sensors’ temperature, ensures temperature homogeneity
Five alarm systems: high and low temperature alarms, power failure alarm, door open alarm, sensor failure alarm and back-up battery failure alarm.
Two alarm styles: buzzing, flashing
Delay prevention when starting, to avoid influencing other equipment or line breakdown for simultaneous running
Fault-running safety system, ensures no affection on blood storage when long term electronic control failure happens.

3.Refrigerating System
Branded compressor, non-CFC environmental refrigerant with high efficiency
Excellent cooling system design
New material for sealing system, good heat preservation

4.Humanized Design
Adjustable shelf inside, convenient for usage
Safety lock design prevents sporadic door opening
Back-up battery inside extend up to 48 hours in case of power failure (optional)
Fluorescent light equipped inside
Automatic defrosting design, easy to use
LED digital display, easy to read
Selected shock-proof and corrosion-proof bins of inside and outside, suit in all condition and easy to clean
Wide range of voltage design from 187V to 242V
Transparent double vacuum toughened glass door, ensure no condensation under high temperature and humidity environment

Parameter:

	Model	MBC-4V108	MBC-4V208	MBC-4V658	MBC-4V1008
Specificaitons	Shelf/drawer	Shelves/2	Shelves/4	Shelves/12	Drawers/12
	Cooling	Forced -air Cooling	Forced -air Cooling	Forced -air Cooling	Forced -air Cooling
	Defrost	Auto	Auto	Auto	Auto
	Refrigerant	R134a	R134a	R134a	R134a
	Power consumption(kWh/24h)	1.95	2.22	6.31	8.53
	Noise(db)	49.6dB(A)	51.2dB(A)	51.2 dB(A)	53.6 dB(A)
	Ambient temperature(℃)	10~32℃	10~32℃	10~32℃	10~32℃
	Temperature range(℃)	4±1℃	4±1℃	4±1℃	4±1℃
Cooling system	Compressor brand/QTY	EMBRACO/1	EMBRACO/1	SECOP/1	SECOP/1
	Sensor	NTC	NTC	NTC	NTC
	Temperature controller	Microprocessor	Microprocessor	Microprocessor	Microprocessor
	Display	Digital display	Digital display	Digital display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz	220/50Hz	220/50Hz	220/50Hz
	Power(W)	175W	183W	364W	513W
	Current(A)	0.6A	0.8A	2.42A	2.37A
Material	Inside material	Stainless steel	Stainless steel	Stainless steel	Stainless steel
	Outside material	Color sprayed steel	Color sprayed steel	Color sprayed steel	Color sprayed steel
	Insulation	PURF	PURF	PURF	PURF
Size	Capacity(L/cu.ft)	108/3.81	208/7.34	658/23.23	1008/35.59
	Bloodbags(450ml)	66	132	360	576
	NT./GT.(kg)	74/95	96/120	202/257	265/335
	Exterior size(WDH)(mm)	522X635X1030	522X635X1530	1220×648×1885	1220×878×1885
	Interior size(WDH)(mm)	432×462×478	432×462×978	1100×454×1325	1100×684×1325
	Package size(WDH)(mm)	6905801200	5806901700	13007352110	13009602130
Alarm	High/low temperature	Y	Y	Y	Y
	Power off	Y	Y	Y	Y
	Temperature controller malfunction	Y	Y	Y	Y
	Backup battery malfunction	Y	Y	Y	Y
	Ambient temperature	10~32℃	10~32℃	10~32℃	10~32℃
	Backup battery Alarm for power off	72h	72h	72h	72h
Optional	Caster	Y	Y	Y	Y
	Outer door/Type	1/Heating & Foam glass door	1/Heating & Foam glass door	2/Heating & Foam glass door	2/Heating & Foam glass door
	Inner door	2	4	6	6
	Test hole	1/25MM	1/25MM	1/25MM	1/25MM
	Thermal Printer	Y	Y	Y	Y
	Light	LED	LED	LED	LED
	Temperature recorder	Optional	Optional	Optional	Optional
Other	Qualifications	ISO9001,ISO13485,ISO14001	ISO9001,ISO13485,ISO14001	ISO9001,ISO13485,ISO14001	ISO9001,ISO13485,ISO14001
