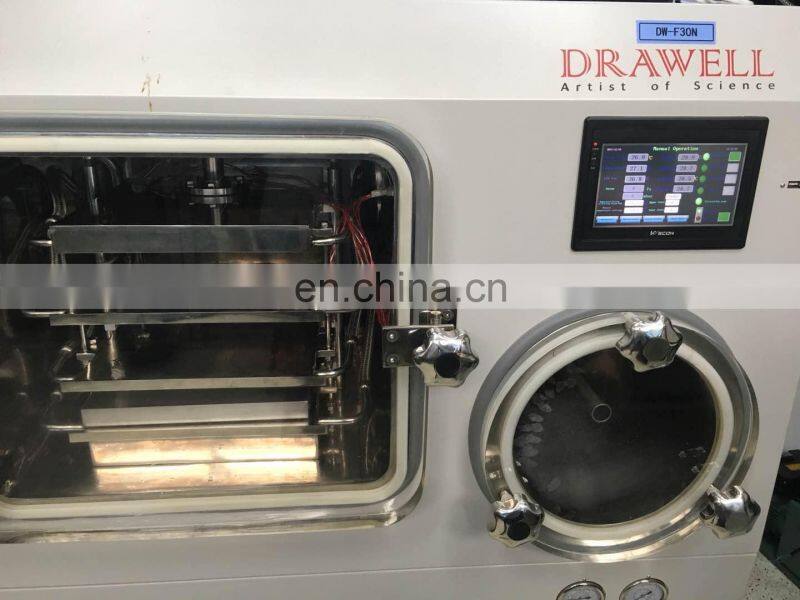

DW-30F Silicone Oil Heating Freeze Vacuum Dryer for Laboratory
US$ 1,500 - 30,000
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Drawell Deionized Pure Water System of Laboratory Water Purification System
-
Reverse Osmosis Water Purification System Can do for Waste Water Purification
-
MODEL Ultra Pure UV Water Deionization With Ultra Pure Water System, New
-
New Deionized Pure Water System, Water Purification Machine Price
-
Lab Water Purifier Machine Dura 12/24 Series
-
Super Series Water Purification System
Product Details
| Brand Name | Drawell | Place of Origin | Shanghai, China |
Product Description
DW-30F Silicone Oil Heating Freeze-Drying Machine
- Pre-freeze drying process at in situ situation, reduce the complicate operation from drying process, become automatically;
- Shelf temperature differences ± 1 ℃, dry effect uniform;
- Intermediate medium circulation technique, shelf can refrigeration, heating, temperature adjustable, controllable, pilot scale test and production process;
- Due to drying chamber and cold trap for fission structure, special gas circuit designed, capture water ability is strong and drying time to be short;
- Embedded touch screen, PLC controlled and PID temperature controlled display lyophilized curve and history curve;
- Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
- Optional eutectic point test device;
- U disk data available;
- Equipped with PC software can print curve, browsing curve, modify data;
- Square tray is shape not easily to deformed, easy to operate and clean;
- Can be configured charging valve, rechargeable dry inert gas.
- Drying chamber adopts high light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;
- Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.
Drying chamber | DW-30F | Ordinary | Top-Press |
Drying Area | 0.3 m2 | 0.3 m2 | |
No.of Tray | 3+1 layer | 3+1 layer | |
Temp. Range | -70~70 ℃ | -70~70 ℃ | |
Shelf Gap | 50 mm | 70 mm | |
Shelf Size | 400mm×270mm | 400mm×270mm | |
Capture water trap | φ22 Schering bottles | 540 | 540 |
φ16 Schering bottles | 1080 | 1080 | |
φ12 Schering bottles | 1950 | 1950 | |
Temperature | -70℃(No-load) | -70℃(No-load) | |
Ability to Capture Water | 6Kg/24h | 6Kg/24h | |
Parameters | Power | 2.1 kw | 2.1kw |
Power Supply | 110-115V or 220-240V 50/60Hz | 110-115V or 220-240V 50/60Hz | |
Plate Load Capacity | 3 L | 3 L | |
Electric Defrost |
| √ | |
Vacuum | <10 Pa | <10 Pa | |
Dimension | 630×800×1400 mm | 1060×700×1500 mm | |
Drying chamber shape | square | square | |
N.W./ G.W | 300KG/ 340KG | 360KG/400KG | |
