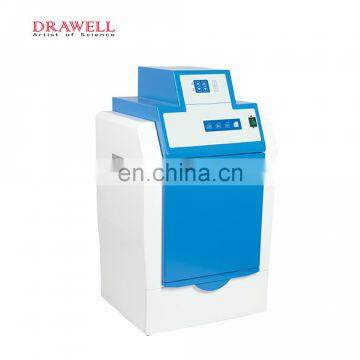

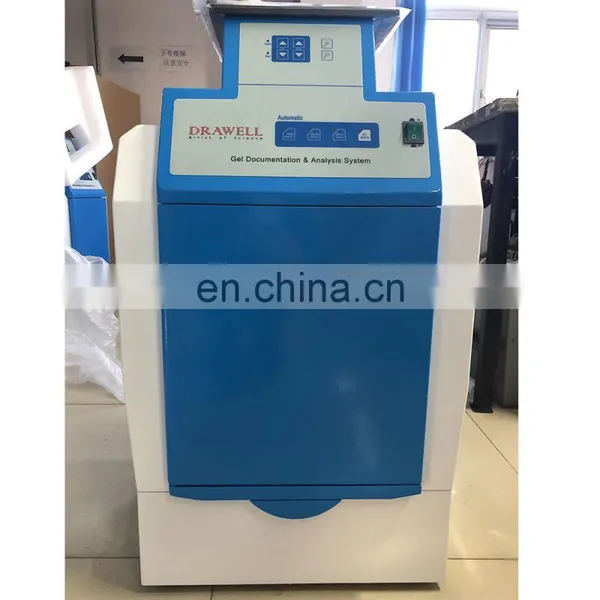

Gel Documentation Imaging System

Gel documentation DW04S-3C

Technical specifications

Effective pixels: 1280×1024

Pixel density: 10 bit

Pixel size: 5.4×5.4(um)

Resolution: 1.4 megapixels

Signal to noise ratio: ≥56db

Sensitivity: Can detect the double chain DNA of EB staining below 20pg.

Camera: low illumination and high resolution digital CCD

Zoom lens: F=1:1.2,2/3 inch 6 times zoom lens

Filter: 590(nm)

UV light transmission area(W×L): 250×200(mm)

Visible light transmittance area(W×L): 250×210(mm)

Transmission UV wavelength: 302(nm)

Reflectance UV wavelength: 254,365(nm)

Transmission UV lamp power:302nm(8W)

Reflectance UV lamp power: 254nm(11W),365nm(11W)

Volume(L×W×H): 470×405×820(mm)

Weight: 29.0kg

Characteristic feature

• CCD with lower lux and high-resolution, easy to get dim stripes and real-time browse, whole-screen display and simple to operate:

• Six time zoom lens and simple to enlarge and shrink gel photos.

• The center position indicator, which can ensure the gel is placed in the center position.

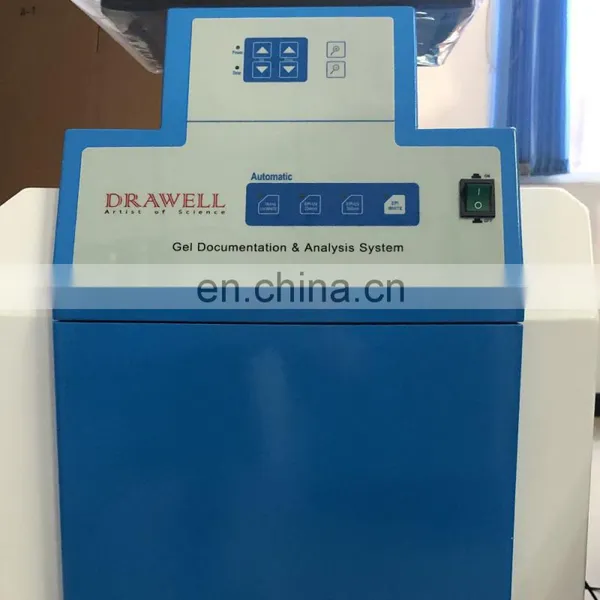

• Intelligent control box:

• You can realize the control of the zoom, focus, aperture, UV light and white light through panel key.

• Safety function for your eyes that automatically shuts down the UV light when the door is opened and reactivates the UV light when the door is shut.

• Timed shut down: The UV light protection system automatically shuts down the lights after 15 minutes to maximize the life of lamp and vitreous.

• The zoom lens is protected with RS232 interface.

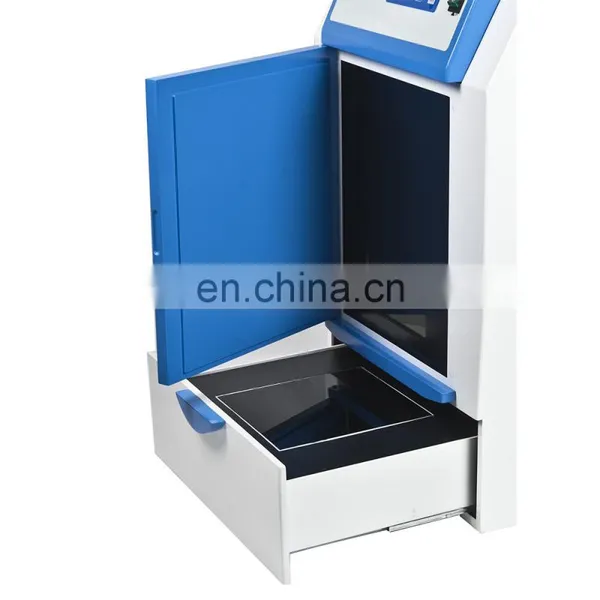

• Drawer-style gel platform, convenient to observe, operate, and cutting gel.

• Transferring plate changes UV-light into white-light.

• Using a multi-layer gel-filter effectively filters background noise.

• You can realize the control of the zoom, focus, aperture, UV light and white light through computer mouse.

• Regular and reliable system convenient to maintain and exchange parts.
