DW-CZ-BL Gel Documentation System Hemoglobin Electrophoresis

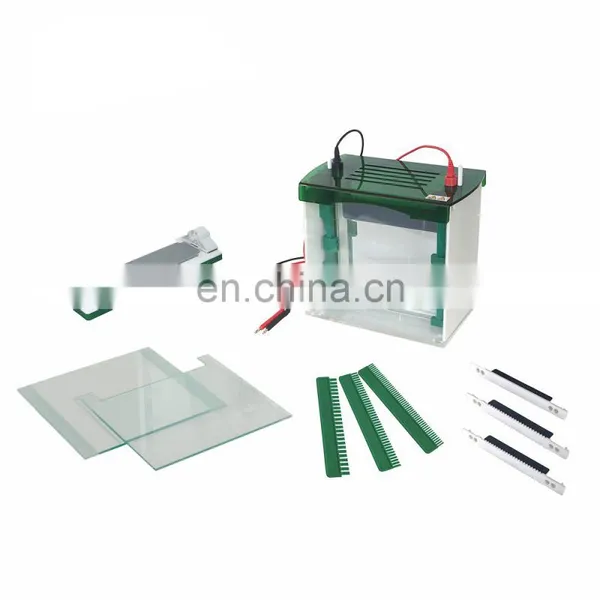

Vertical Electrophoresis DW-CZ-BL

Technical specifications

Glass plate size(W×L):216*220 mm

Gel Size(W×L):186*205 mm

Gel thickness: 1.0(mm)

Gel amount:1~2(pieces)

Sample volume:(1.0mm)25,40,52wells

Buffer Volume:~3500(ml)

Dimension(L×W×H):280*140*250(mm)

Net weight:5.6(kg)

Characteristic features

• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.

• With the gel making device of normal position,don’t should to moving the glass plate from the process of making gel to electrophoresis.

• With the Precast gel inner core, do not affecting the operation of

  gel making while the electrophoresis.

• Safety cover open button design, convenient opening the cover.

• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.

• Auto-switch-off when the lid is removed.
