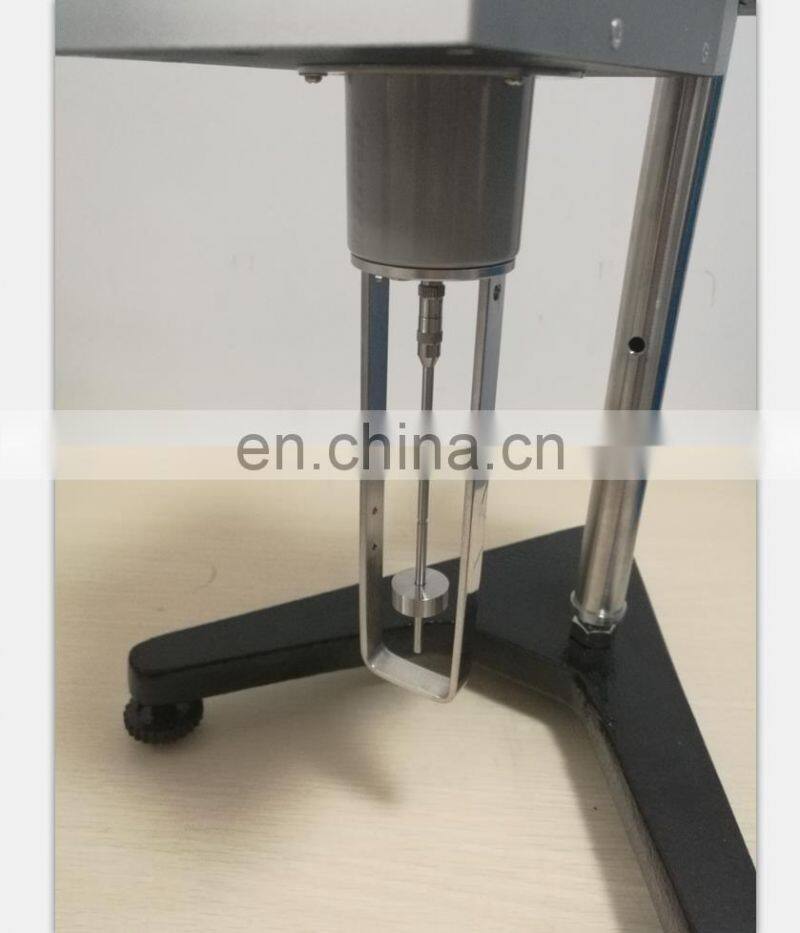

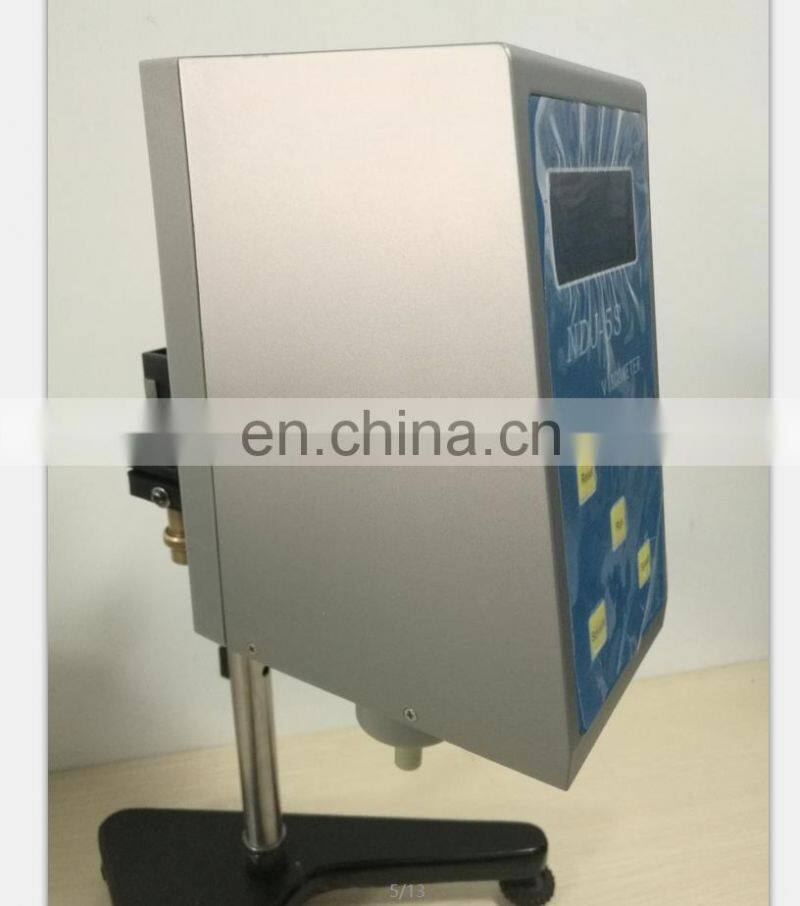

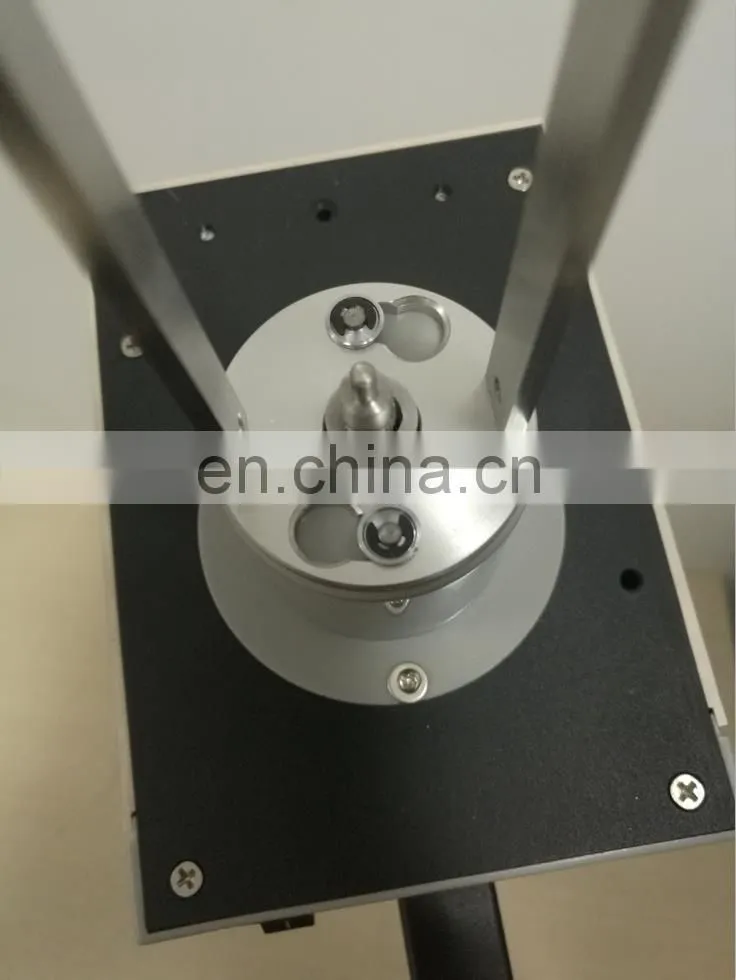

NDJ-5S Digital Viscometer
The main technical indicators
Measuring Range(mPa·s) | 20 ~ 100,000 |
Rotating Speed (RPM) | Four adjustable speed:6,12,30,60 |
Number of Spindles | Spindles (Code L1,L2,L3,L4) are equipped with the product |
Accuracy | ±1% full scale range in use |
Return Capacity | ±0.5% full scale range in use |
Power | Power adapter ( input: 100-240V,50/60Hz) |

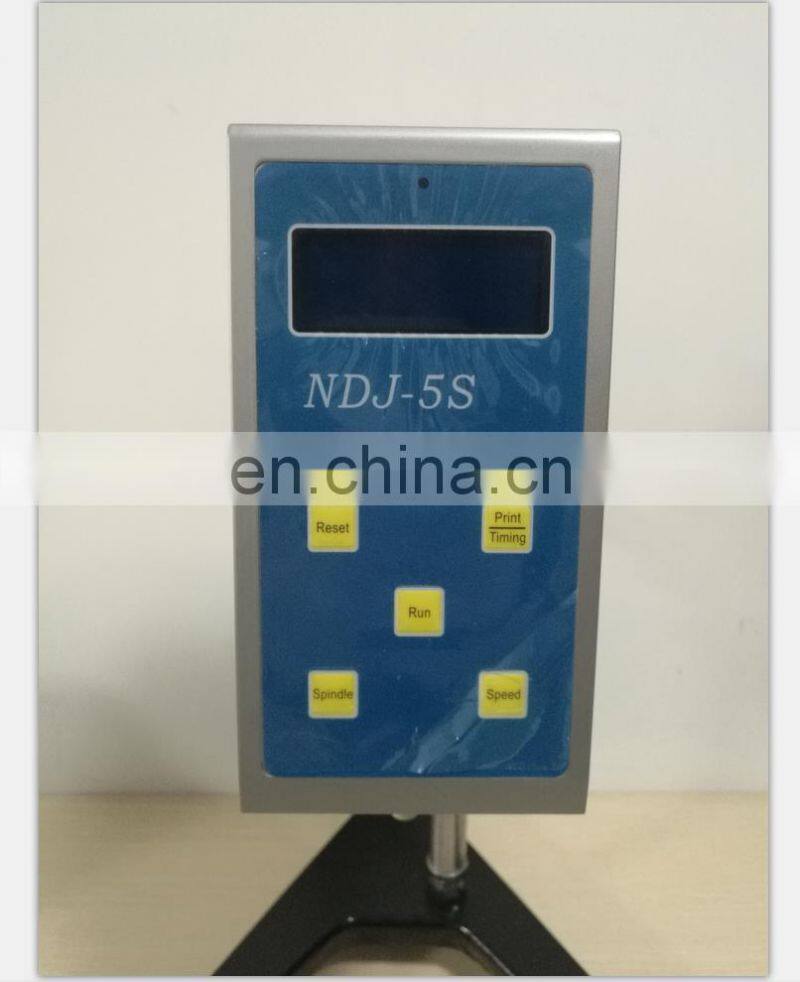

LCD screen display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. |
.Apparatus to be equipped

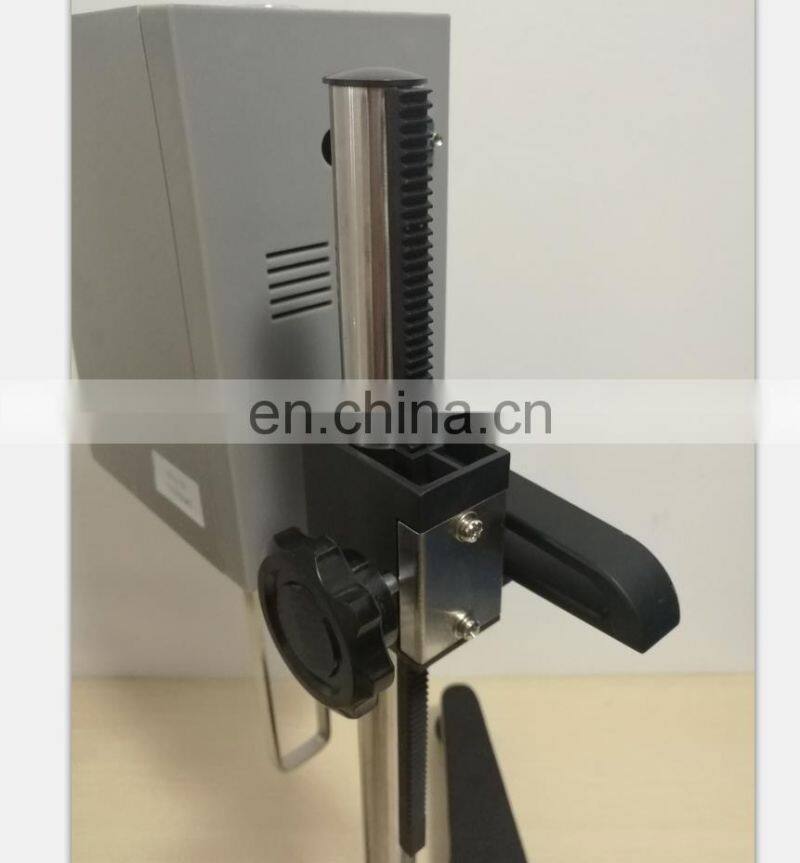

. digital viscosity meter | 1 pce | ·ascending and falling rack | 1 set |

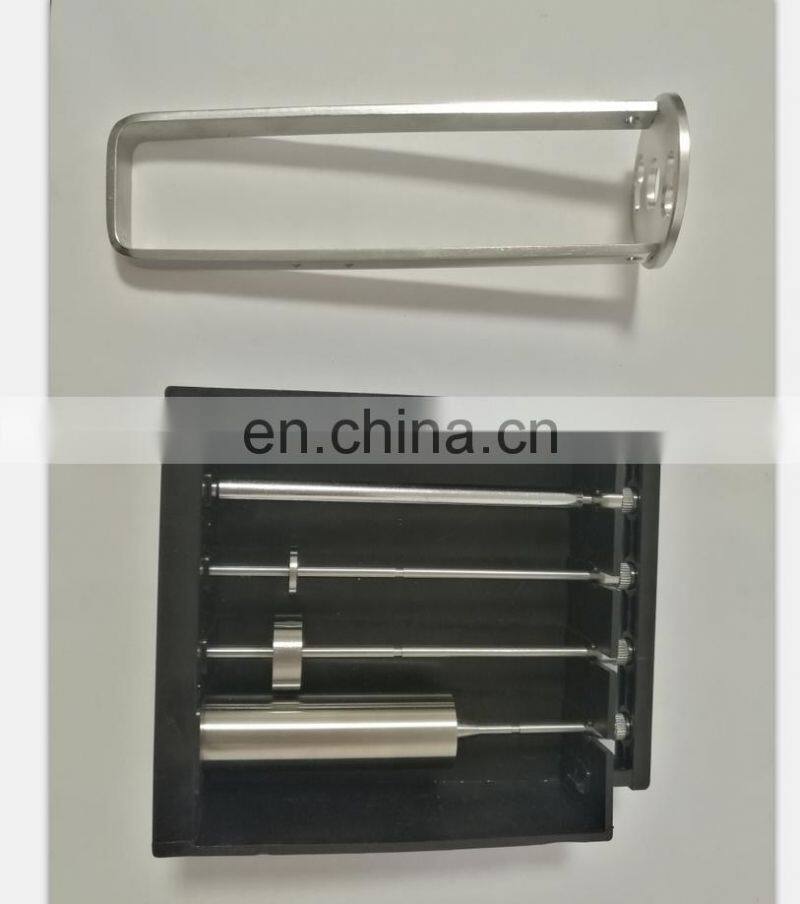

. standard spindle | 1 set | ·power adapter | 1 pce |
·protective frame of spindle | 1 pce | ·spanner | 1 pce |

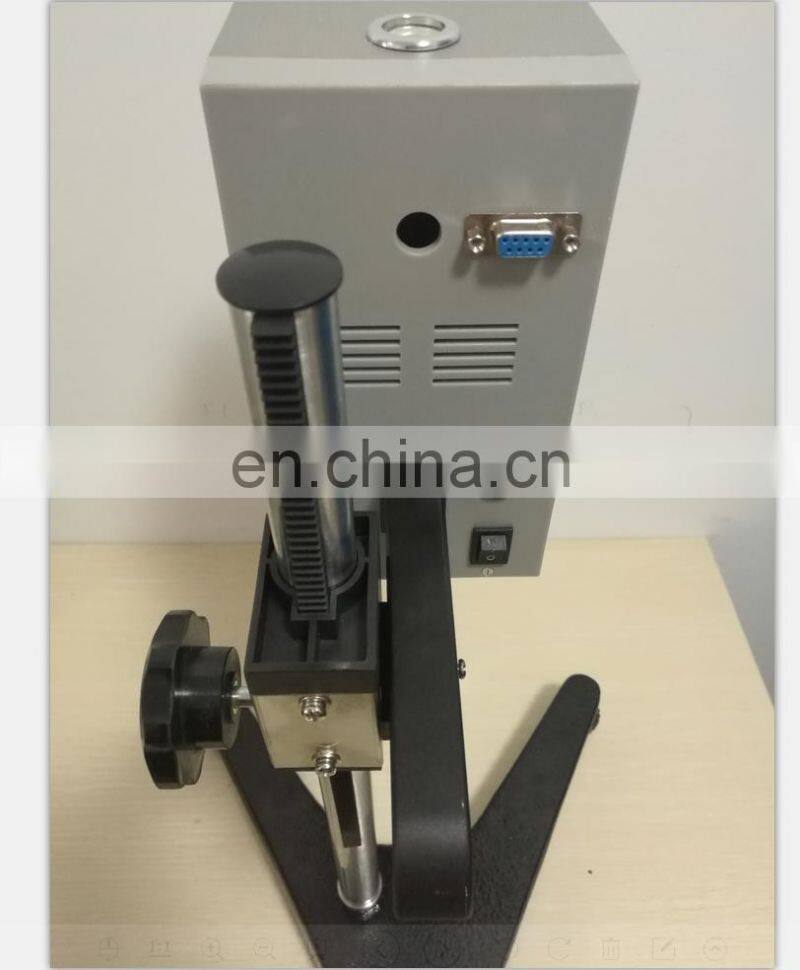

·Seat and leveling feet | 1 set | . RS232 standard output interface | 1 pce |
.Options
·Extreme low viscometer adapter (with one spindle L0) |
·Small sample adapter (with spindle 21, 27, 28 and 29 each) |
·Spindle L5 |
·Temperature-controlled heater (with spindle 21, 27, 28 and 29 each) |
·RTD temperature probe |
·Specially used printer
|
