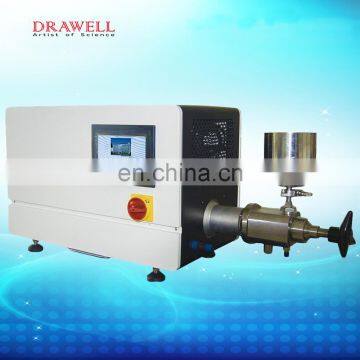

Drawell-D207A Ultra High Pressure Homogenizer

Drawell-D207A Ultra High Pressure Homogenizer

Main Technical Parameters

1) The maximum working pressure 1800bar / 180Mpa / 26100psi pressure adjustable

2) The maximum design pressure is 2070bar / 207Mpa / 30015psi

3) Maximum processing capacity 15 L / H (250ml / min)

4) The minimum processing capacity of 15ml

5) Material residue 0ml (no residue)

6) Motor power 3.0Kw / 380V / 50Hz

7) Overall dimensions L1070 * W340 * H460

8) Weight <60KG

9) Maximum feed particles & lt; 100 microns

10) Flow control Inverter control, adjustable flow and flow adjustable

11) Pressure, temperature sensors using the German brand pressure sensor optional thermostat bath

    Built-in cooler configuration cooler, does not consume materials, control homogeneous temperature

12) No need to exhaust

13) PLC touch screen

14) Using PLC control and 7-inch touch screen operation

15) Historical data storage, query

16) With temperature alarm and automatic protection

17) System high pressure and operating temperature are one digital

18) Real-time pressure and temperature curve display

19) Has the operation permission limit function

20) Electric control drive part of Japan's Matsushita servo motor

21) Condensate water connection plate with condensate access disk

 Spares and tools:

            1) One set of special tools

                 2) One standard spares package

                 3) Operation manual
