12L Drawell 1000 Degree Muffle Furnace

12L Drawell 1000 Degree Muffle Furnace thumbnail-1
12L Drawell 1000 Degree Muffle Furnace thumbnail-2
12L Drawell 1000 Degree Muffle Furnace thumbnail-3
12L Drawell 1000 Degree Muffle Furnace thumbnail-4
12L Drawell 1000 Degree Muffle Furnace photo-1
12L Drawell 1000 Degree Muffle Furnace photo-2
12L Drawell 1000 Degree Muffle Furnace photo-3
12L Drawell 1000 Degree Muffle Furnace photo-4
US$ 800 - 1,200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DRAWELL
Place of Origin:
Shanghai, China
Model Number:
4-10T/TP
Contact Supplier Request Quote Chat Now
Shanghai Drawell Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DRAWELL
Place of Origin Shanghai, China
Model Number 4-10T/TP



High Temperature Muffle Furnace



Summary: Muffle furnace is an essential equipment widely used in metallurgical laboratory for fusion experiment,
heat treatment department for annealing, quenching and other high temperature places.

Features:

• One-piece design, several sets of data shows in a big LCD screen, easy
operator with elegant appearance.

• PID high precision temperature control, zero power loss.

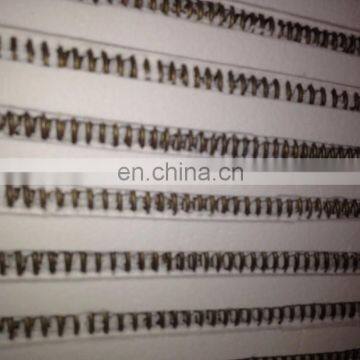

• Imported HRE ultra-temperature alloy heating element, long life and
energy-efficient.

• Short temperature rising time, from indoor temperature to 1200℃takes less
than 30 minutes.

• Little thermal pollution, new type ceramic fiber insulation material. When
the temperature reaches 1000 ℃and after lasting 1 hour, temperature of the
shell is not so hot (about 50 ℃)

• Several temperature controllers for customers to choose. Little temperature
fluctuation after going into the hold mode (temperature precision+-1℃,
temperature uniformity +- 5℃). P type step multiplex temperature controller,
rise and fall slope can be preset.







Model

1.5-10T/TP

2.5-10T/TP

4-10T/TP

8-10T/TP

16-10T/TP

Power

1.5KW

2.5KW

4KW

8KW

16KW

Temperature rising time

RT+10~1000<30min

RT+10~1000<30min

RT+10~1000<30min

RT+10~1000<30min

RT+10~1000<40min

Type of heating element

Resistance wire

Resistance wire

Resistance wire

Resistance wire

Resistance wire

Furance dimension

W×D×H(mm)

200×120×80

300×200×120

300×200×200

400×300×300

500×400×400

Cubage

1.9L

7.2L

12L

36L

80L

Overall dimension

W×D×H(mm)

430×550×605

510×590×705

530×690×715

700×860×860

800×960×960

Model

1.5-12T/TP

2.5-12T/TP

4-12T/TP

8-12T/TP

16-12T/TP

Power

1.5KW

2.5KW

4KW

8KW

16KW

Temperature rising time

RT+10~1200<30min

RT+10~1200<30min

RT+10~1200<30min

RT+10~1200<30min

RT+10~1200<40min

Type of heating element

Resistance wire

Resistance wire

Resistance wire

Resistance wire

Resistance wire

Furance dimension

W×D×H(mm)

430×550×80

300×200×120

300×200×200

400×300×300

500×400×400

Cubage

1.9L

7.2L

12L

36L

80L

Overall dimension

W×D×H(mm)

430×550X605

510×590×705

530×690×715

700×860×860

800×960×960

Remarks: "T"--------- Ceramic fiber furnace; "P"---------- Intelligent program resistance furnace.
