MDL-III-785-Lock Narrow spectral line width 600mW 785nm Laser for spectrum analysis
APPLICATION:
Diode infrared laser module at 785nm is made features of ultra compact, long lifetime and easy operating, which is specially designed for Raman spectroscopy , measurement, communication, spectrum analysis, etc.
SPECIFICATIONS:
Model | MDL-III-785-Lock | ||
Wavelength (nm) | 785±0.3 | ||
Spectral line width(nm) | <0.2 | ||
Output power (mW) | >1, 50, 100, … ,600 | ||
Dimensions of beam at the aperture (mm) | ~10×1 | ||
Transverse mode | Multimode | ||
Operating mode | CW | ||
Power stability (rms, over 4 hours) | <1%, <3%, <5% | ||
Warm-up time (minutes) | <5 | ||
M2 factor | <20 | ||
Beam divergence, full angle (mrad) | <3. 0 | ||
Beam height from base plate (mm) | 24. 8 | ||
Polarization ratio | >50:1 | ||
Pointing stability after warm-up (mrad) | <0.05 | ||
Operating temperature (℃) | 10~35 | ||
Power supply (90-264VAC or 5VDC) | PSU-III-LED | PSU-III-FDA | PSU-III-OEM |
Modulation option | TTL/Analog 1Hz-5KHz, 1Hz-10KHz, 1Hz-30KHz, and TTL on/off | ||
Expected lifetime (hours) | 10000 | ||
Warranty | 1 year | ||
Laser Head

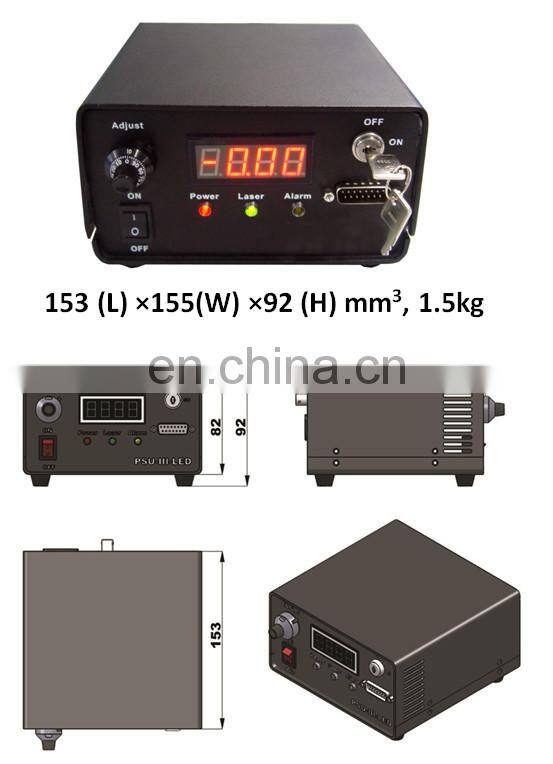

PSU-III-LED Power supply
PSU-III-FDA Power supply

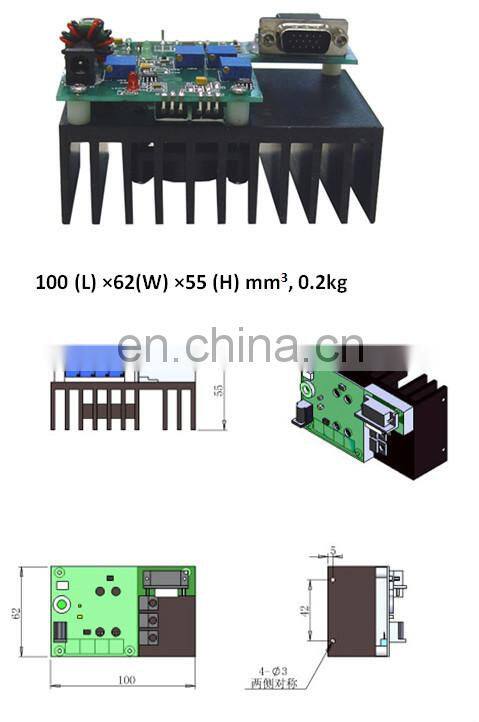

PSU-III-OEM Power supply
