Home > Electrical & Electronics > Electric Motor > DC Motor > 57mm 12000rpm 24V 250W Dc Brushless Motor
US$ 20 - 20
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
57HBL
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
38zyn02A 25w dc Motor 12v 70mNm 25 Watt RatedUS$ 20 - 20MOQ: 100 Pieces -
80zyt01a Equivalent to GR80 Brush Dc Motors Rated 24volt 2900rpm 180wUS$ 20 - 20MOQ: 100 Pieces
-
63ZYT01B 12 Volt 4000rpm 0.2Nm 75w dc MotorUS$ 15 - 15MOQ: 100 Pieces
-
42ZYT04C High Speed Dc Motor 10000rpm 92wUS$ 14 - 14MOQ: 100 Pieces
-
63ZYT01A-12volt Brushed dc Motor 12v 3100rpm 0.15NmUS$ 11.5 - 16MOQ: 20 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
57HBL
Type
Servo Motor
Certification
CE, ROHS
Torque
0.14Nm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Series Wound
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
24V
Output Power
250w
Continuous Current(A)
customed
Speed(RPM)
12000rpm
Commutation
Brushless

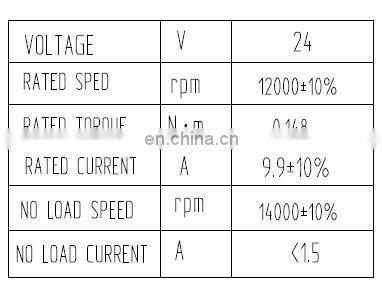

57mm high speed 12000rpm 24V 250W Dc Brushless Spindel Motor IP55
General specification:
Item | Specification |
Winding type | Delta |
Hall effect angle | 120degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.025mm@460g |
End play | 0.025mm@4000g |
Max.radial force | 75N@10mm from the flange |
Max.axial force | 15N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Electric connection:
Lead NO. | Lead Color | Lead Gauge | Function | DESCRIPTION | |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS | |
2 | Black | GND | GROUND FOR HALL SENSORS | ||
3 | Yellow | HALL A |
| ||
4 | Green | HALL B |
| ||
5 | Blue | HALL C |
| ||
6 | Yellow | UL1007/20AWG | PHASE U |
| |
7 | Green | PHASE V |
| ||
8 | Blue | PHASE W |
| ||
