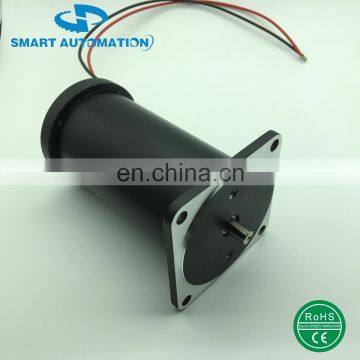

DC Electric Wheel Chair Motor Small Size Big Power 12v 24v Rated 4500rpm 200w

DC Electric Wheel Chair Motor Small Size Big Power 12v 24v Rated 4500rpm 200w thumbnail-1
DC Electric Wheel Chair Motor Small Size Big Power 12v 24v Rated 4500rpm 200w thumbnail-2
DC Electric Wheel Chair Motor Small Size Big Power 12v 24v Rated 4500rpm 200w thumbnail-3
DC Electric Wheel Chair Motor Small Size Big Power 12v 24v Rated 4500rpm 200w photo-1
DC Electric Wheel Chair Motor Small Size Big Power 12v 24v Rated 4500rpm 200w photo-2
DC Electric Wheel Chair Motor Small Size Big Power 12v 24v Rated 4500rpm 200w photo-3
US$ 12 - 30 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
63zyt03-W
Contact Supplier Request Quote Chat Now
Changzhou Smart Automation Motor Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart Automation
Place of Origin Jiangsu, China
Model Number 63zyt03-W
Certification CE, ROHS
Torque 0.44N.m
Usage Car, Electric Bicycle, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Continuous Current(A) customed
Speed(RPM) 4500rpm
Commutation Brush

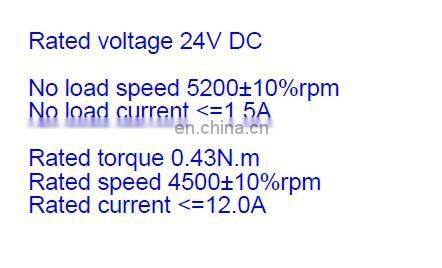

Motor technical parameter:

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 56

Insulation class: H,

 CE and ROHS certified



Options:

 Customized voltage, winding, shaft, mounting, and lead configurations

 EMI/RFI suppression circuit; Thermal protection

 High temperature Class H insulation



We CAN MAKE CUSTOMED VOLTAGE, SHAFT, FRONT MOUNTING, MOTOR PERFORMANCE, BELOW MODEL IS ONLY FOR REFERENCE





DC Electric Wheel Chair Motor Small Size Big Power 12v 24v rated 4500rpm 200wDC Electric Wheel Chair Motor Small Size Big Power 12v 24v rated 4500rpm 200w



DC Electric Wheel Chair Motor Small Size Big Power 12v 24v rated 4500rpm 200w







More

DC Electric Wheel Chair Motor Small Size Big Power 12v 24v rated 4500rpm 200w
