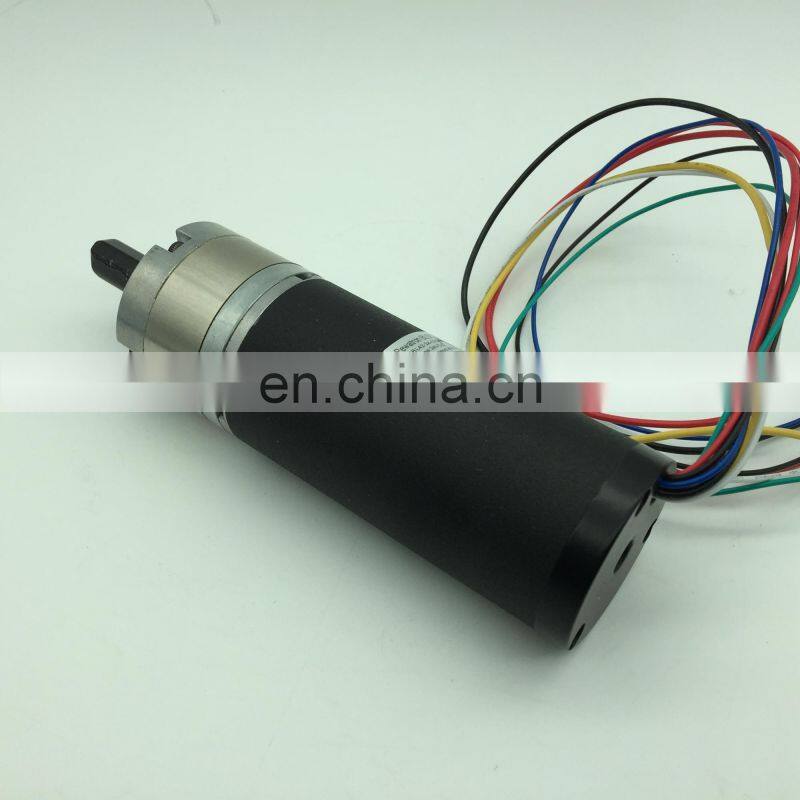

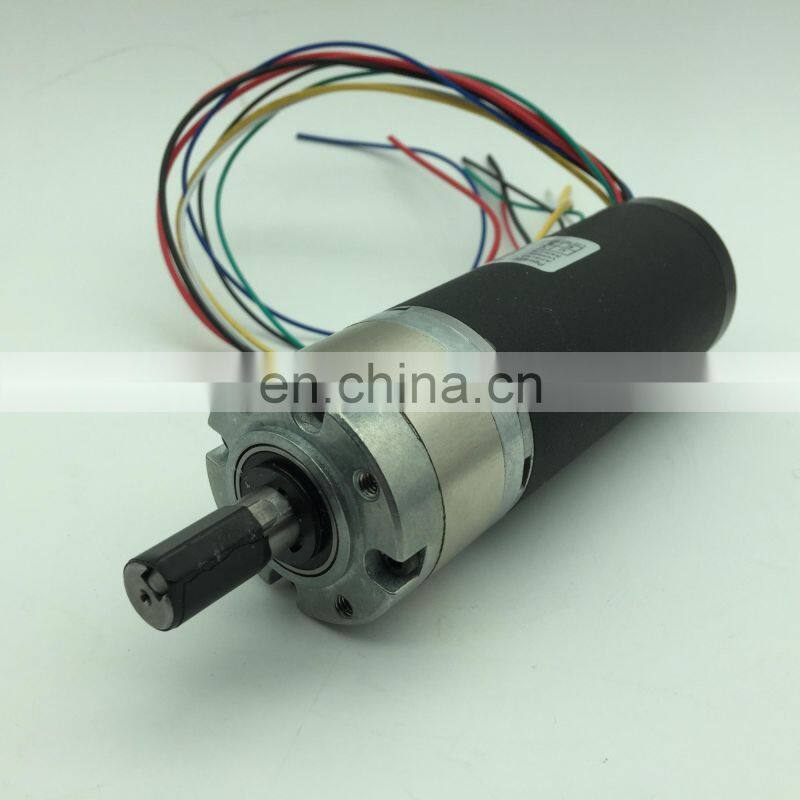

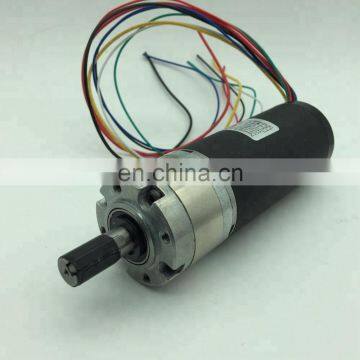

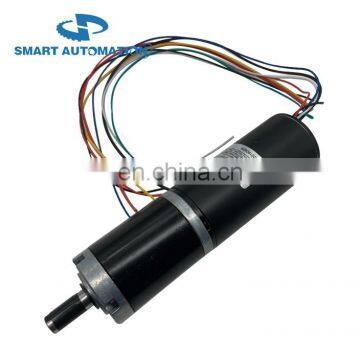

42JXE100K.42RBL 42mm Brushless Planet Gearhead Dc Motor, Option for Brakes
US$ 10 - 30
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
Brushless DC Geared Motor 300w to 500w Used for Training Equipment
-
86mm High Power Brushless Dc Gear Motor Upto 120Nm, Helical Gears Big Torque Low Noise
-
57mm 24v Brushless dc Gear Motor 8Nm 100rpm, With Option Encoder HS28A
-
57mm 24v Bldc Gear Motor Rated 8Nm 100rpm 85w, With Optical Encoder
-
80PMB800K.80RBL Large Torque High Power Brushless Dc Gear Motor BLDC Rated Torque Upto 80Nm
-
60JXE450K.80RBL Economical Planetary Gear BLDC Motors Rated Torque Upto 45Nm 100w 200w 300w 400w
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 42JXE100K.42RBL | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | customed | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brushless |
Product Description
size 42mm electric dc brushless motor, 12v 24v 36v option for planetary gearhead, optical encoder, electric brake assembly
General specification:
|
Item |
Specification |
|
Winding type |
Delta |
|
Hall effect angle |
120degree electrical angle |
|
Shaft run out |
0.025mm |
|
Radial play |
0.06mm@450g |
|
End play |
0.08mm@450g |
|
Max.radial force |
15N@10mm from the flange |
|
Max.axial force |
10N |
|
Insulation class |
Class B |
|
Dielectric Strength |
500VDC for one minute |
|
Insulation resistance |
100MΩMin.500VDC |
Electric connection:
|
Lead NO. |
Lead Color |
Lead Gauge |
Function |
DESCRIPTION |
|
|
1 |
Red |
UL1007/26AWG |
VCC |
SUPPLY VOLTAGE FOR HALL SENSORS |
|
|
2 |
Black |
GND |
GROUND FOR HALL SENSORS |
||
|
3 |
Yellow |
HALL A |
|
||
|
4 |
Green |
HALL B |
|
||
|
5 |
Blue |
HALL C |
|
||
|
6 |
Yellow |
UL1007/20AWG |
PHASE U |
|
|
|
7 |
Green |
PHASE V |
|
||
|
8 |
Blue |
PHASE W |
|
||

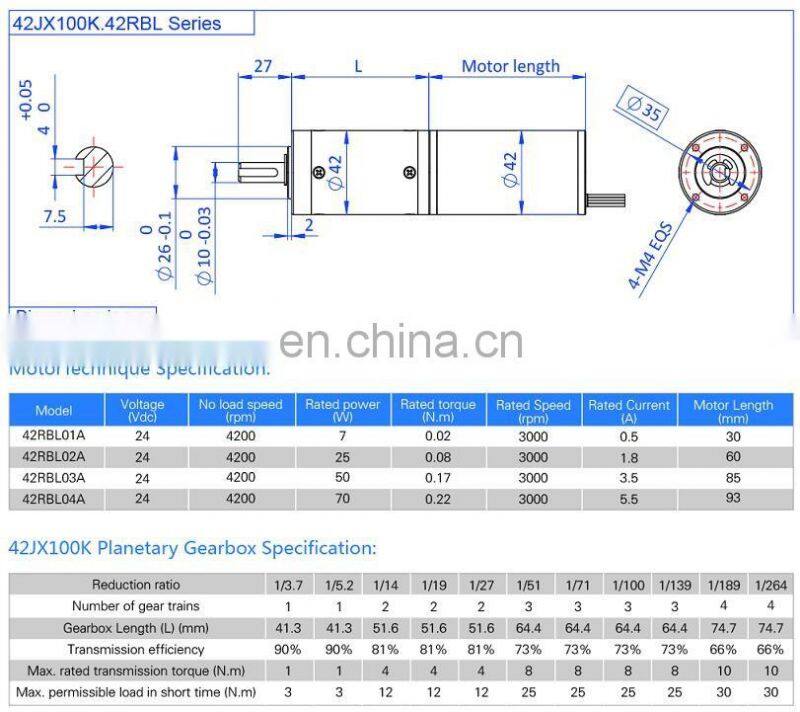

42JXE100K.42RBL Planetary Gear Motor Series

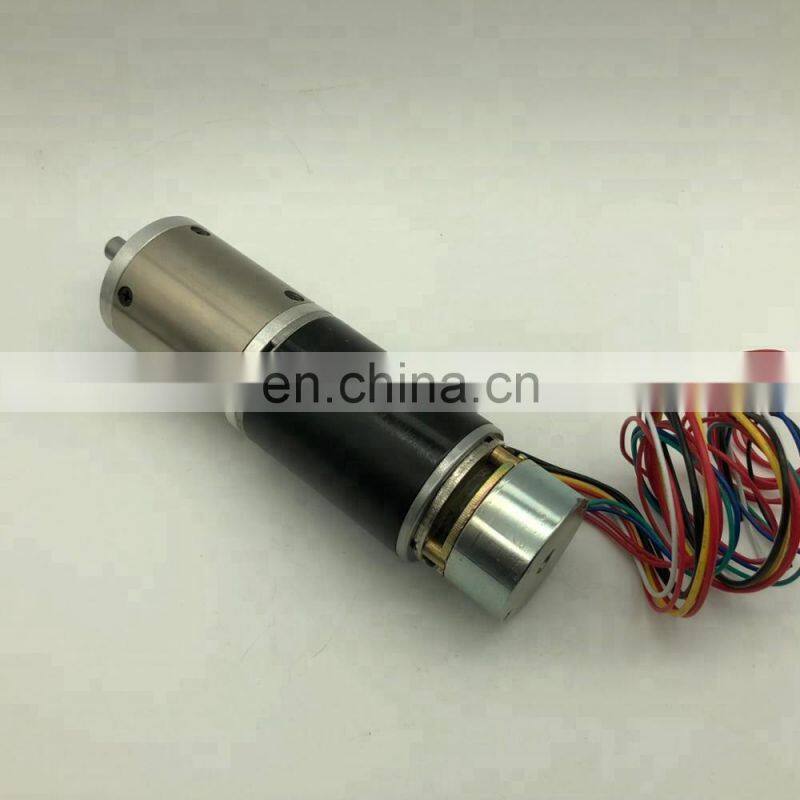

with brake
