Home > Electrical & Electronics > Electric Motor > DC Motor > 82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W

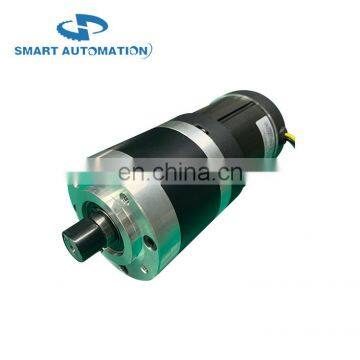

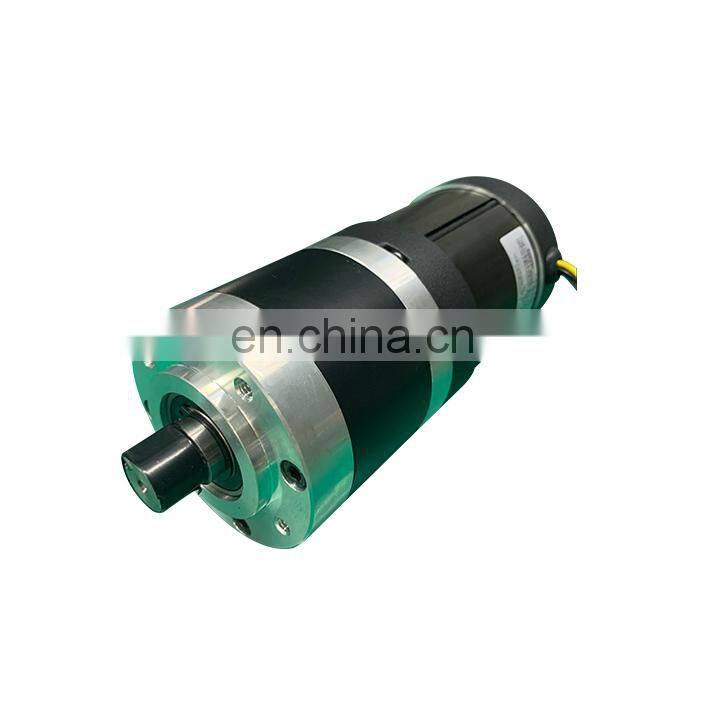

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W

Name: 82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W
Brand: Smart Automation
SKU: 166315779
Availability: InStock

Changzhou Smart Automation Motor Manufacturing Co., Ltd.

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W thumbnail-1

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W thumbnail-2

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W thumbnail-3

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W thumbnail-4

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W photo-1

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W photo-2

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W photo-3

82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700W photo-4

US$ 60 - 200 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Brand Name:

Smart Automation

Place of Origin:

Jiangsu, China

Model Number:

82pn.86bl

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Smart Automation

Place of Origin Jiangsu, China

Model Number 82pn.86bl

Type Servo Motor

Certification CE, ROHS

Torque customed

Usage Car, Electric Bicycle, Fan, Home Appliance

Construction Series Wound

Efficiency IE 1

Protect Feature Drip-proof

Continuous Current(A) customed

Speed(RPM) CUSTOMED

Commutation Brushless

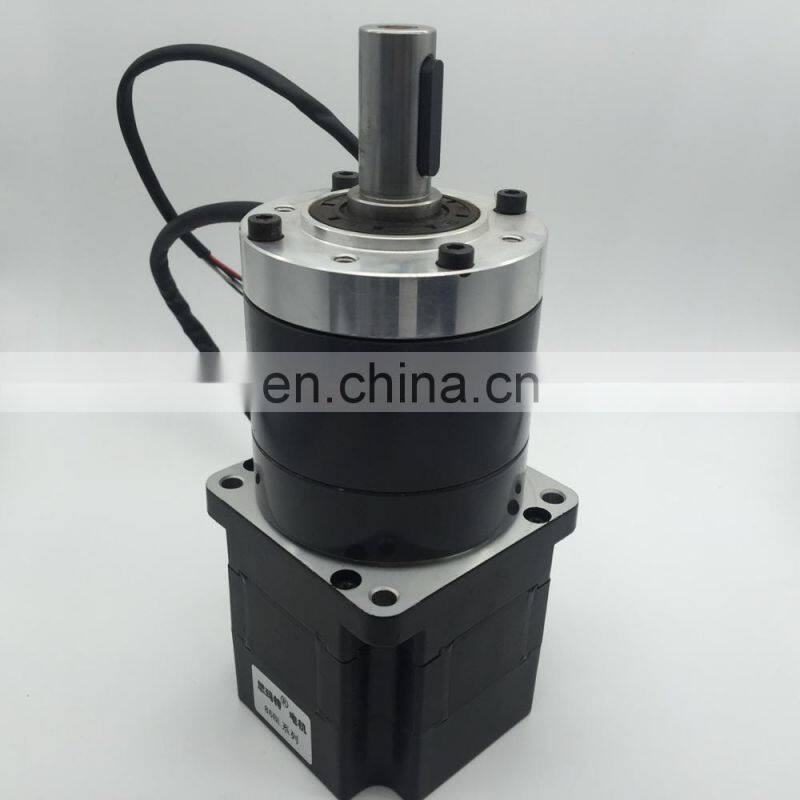

82PN.86BL Brushless Dc Planetary Gear Motor

86RBL Technique Specification

Model		86RBL01A / 86BLS01A	86RBL02A / 86BLS02A	86RBL03A / 86BLS03A
Number of phase		3
Number of pole		8
Voltage	V	48v (Option for 12v 24v up to 230vdc)
No load speed	rpm	3600	3600	3600
Rated torque	Nm	1.0	1.8	2.5
Rated Speed	rpm	3000	3000	3000
Rated Current	A	8.6	14.8	20
Rated Power	W	314	565	785
Weight	Kg	2.2	3.2	4.2
Length	mm	80	105	130

Planetary Gearbox Specifications

Gearbox Model: 82PN (Helical Gear)

Reduction ratio	Rated tolerance torque	Max momentary tolerance torque	Efficiency	L(mm)
1/3.65 1/5.36 1/6.55 1/8.63	20N.m	40 N.m	90%	58.3±0.5
1/13.5 1/18.9 1/24.6 1/28 1/33.9 1/44.7 1/67	60 N.m	120 N.m	81%	80.5±0.5
1/81.1 1/91.3 1/102.9 1/119 1/127.7 1/145.4 1/165.6 1/191.6 1/231.6 1/301.7 1/393	120N.m	240 N.m	73%	103.2±0.5

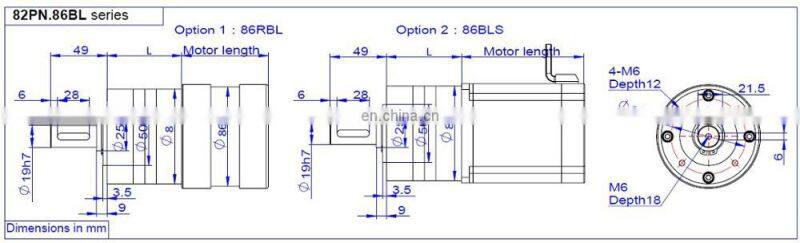

Drawing

86BLS Squre flange

86RBL ROUND FLANGE
