86RBL Round 86mm 48 Volt Dc Motor Brushless Option 24v 36v, Big Torque High Power Upto 750w
US$ 30 - 80
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
SmartAutomation
Place of Origin:
Jiangsu, China
Model Number:
86RBL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
42mm High Torque Brushless dc Planetary Gear Motor With Electric BrakeUS$ 50 - 80MOQ: 5 Pieces -
86RBL01 BLDC Motor Kit, Rated 48v 3000rpm 1Nm 300wUS$ 35 - 50MOQ: 5 Pieces
-
Sensorless BLDC Motor, 57mm Brushless dc Motor IP54 24VDC 6000 RpmUS$ 50 - 50MOQ: 5 Pieces
-
36BL Series 3 Phase 12v 24v High Speed 6000rpm 8000rpm Brushless dc MotorUS$ 6 - 20MOQ: 5 Pieces
-
42BL Round Dc Brushless Motor 12vdc 24vdc 36vdc, OPTION With Driver Brake Encoder AssembledUS$ 10 - 30MOQ: 5 Pieces
Brand Name
SmartAutomation
Place of Origin
Jiangsu, China
Model Number
86RBL
Type
Servo Motor
Certification
CE, ROHS
Torque
customed
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Series Wound
Efficiency
IE 1
Protect Feature
Drip-proof
Continuous Current(A)
customed
Speed(RPM)
3000rpm
Commutation
Brushless

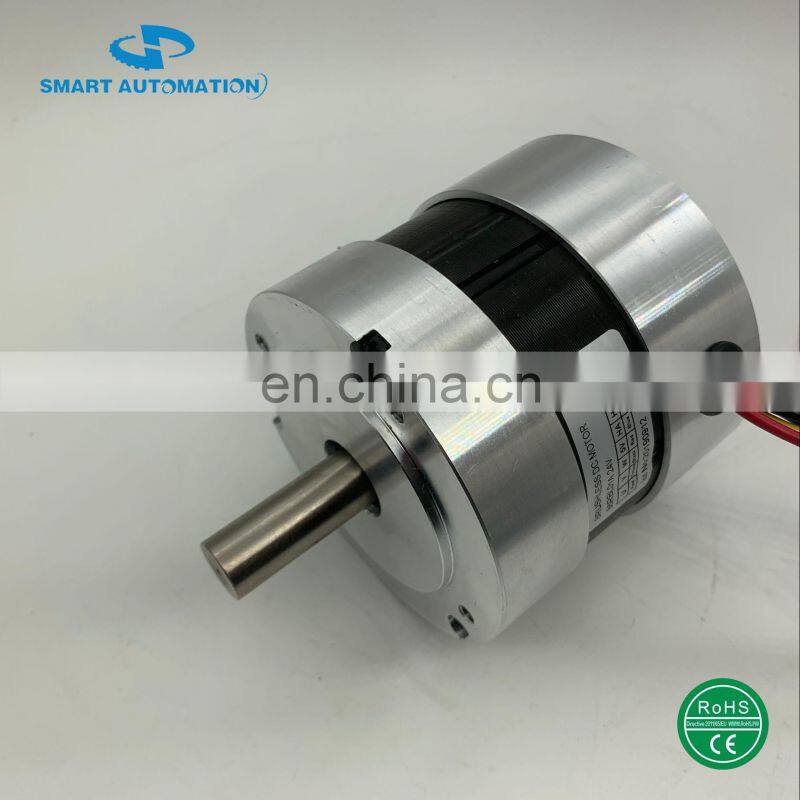

86RBL Round 86mm 48 volt Dc Motor Brushless Option 24v 36v, Big Torque High Power upto 750w

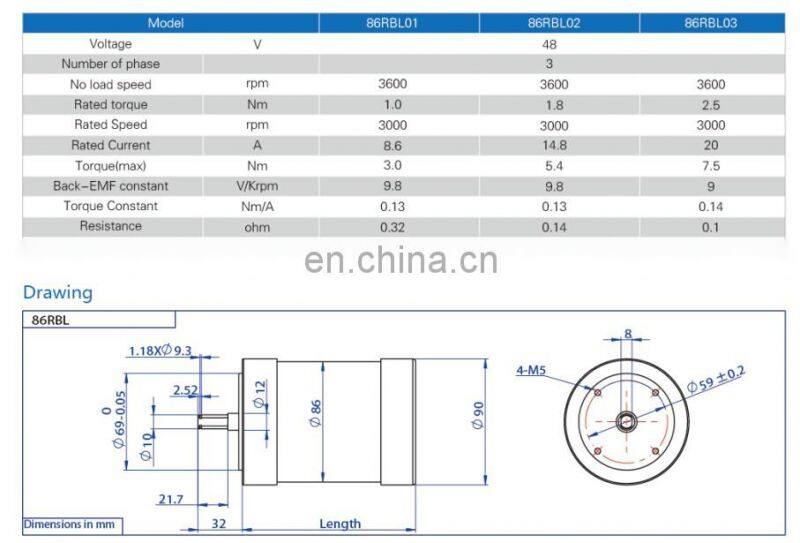

86RBL Series Round Type 86mm Brushless Dc Motor
General specification:
Item | Specification |
Winding type | Delta |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.05mm |
Radial play | 0.06mm@450g |
End play | 0.08mm@450g |
Max.radial force | 220N@20mm from the flange |
Max.axial force | 80N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Electric connection:
Lead NO. | Lead Color | Lead Gauge | Function | DESCRIPTION | |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS | |
2 | Black | GND | GROUND FOR HALL SENSORS | ||
3 | Yellow | HALL A |
| ||
4 | Green | HALL B |
| ||
5 | Blue | HALL C |
| ||
6 | Yellow | UL1007/14AWG | PHASE U |
| |
7 | Green | PHASE V |
| ||
8 | Blue | PHASE W |
| ||
