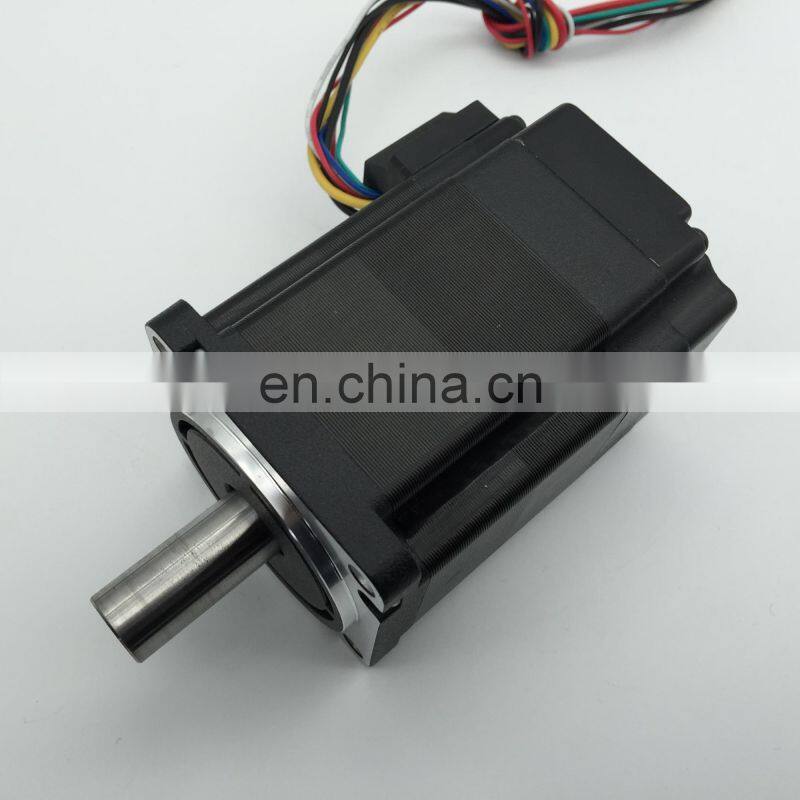

70BLS Brushless dc Moto Catalogue 1.5Nm Rated Torque
US$ 20 - 30
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
60BLS Frame Size 60mm IE1 Electric Bldc Motor Specification Upto 200w
-
57HBL High Torque Version 57mm Bldc Motors, 20w Upto 200w
-
Customization 12 Volt 24 Volt Upto 60vdc Brushless DC Motor BLDC, Power 50w 100w Upto 1500w
-
High Quality 12v Brushless dc Motor 10000rpm, With Different Torque and Power
-
Good Quality 12v 24v 36v 48v Upto 230vdc Brushless DC Motor Manufacturer, Customization and OEM
-
86BL Brushless Dc Machine Motor 48volt 300w 400w 500w 800w
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 70BLS | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | customed | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 48V | Output Power | 157-471 W | |
| Continuous Current(A) | customed | Speed(RPM) | 3000 rpm | |
| Commutation | Brushless |
Product Description
Technique parameter:
1. Number of Poles /phase:8/3
2. Insulation Class:B
3. Option for customized shaft, mounting
4. Option for customized voltage, winding & performance
Model | Rated Voltage | No load Speed | Rated Torque | Rated Speed | Rated current | Rated power | L |
VDC | RPM | Nm | rpm | A | W | mm | |
70BLS01 | 48 | 3500 | 0.5 | 3000 | 4.3 | 157 | 86 |
70BLS02 | 48 | 3500 | 1 | 3000 | 8.7 | 314 | 116 |
70BLS03 | 48 | 3500 | 1.5 | 3000 | 12.9 | 471 | 136 |
