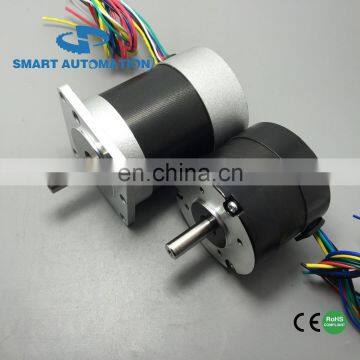

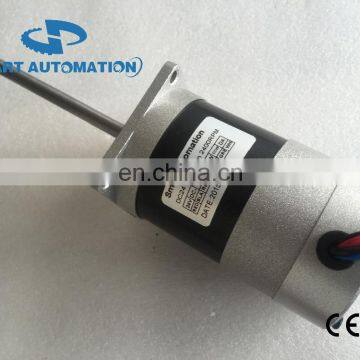

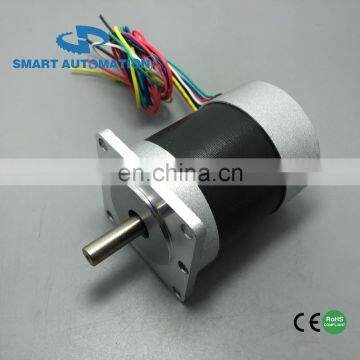

57HBL High Torque Version 57mm Bldc Motors, 20w Upto 200w
US$ 10 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
57HBL(S)01,02,03,04
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customization 12 Volt 24 Volt Upto 60vdc Brushless DC Motor BLDC, Power 50w 100w Upto 1500wUS$ 6 - 50MOQ: 5 Pieces -
High Quality 12v Brushless dc Motor 10000rpm, With Different Torque and PowerUS$ 20 - 50MOQ: 1 Piece
-
Good Quality 12v 24v 36v 48v Upto 230vdc Brushless DC Motor Manufacturer, Customization and OEMUS$ 6 - 99MOQ: 5 Pieces
-
86BL Brushless Dc Machine Motor 48volt 300w 400w 500w 800wUS$ 30 - 100MOQ: 5 Pieces
-
28mm Coreless Brushless dc Motor, Rated Speed 20000rpmUS$ 15 - 30MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
57HBL(S)01,02,03,04
Type
Servo Motor
Certification
CE, ROHS
Torque
upto 0.5Nm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Series Wound
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12V, 24V, 36v ,48v,230V
Output Power
to 200w
Continuous Current(A)
customed
Speed(RPM)
4000rpm
Commutation
Brushless
57mm Series Brushless Dc Motor
General specification:
Item | Specification |
Winding type | Delta |
Hall effect angle | 120degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.025mm@460g |
End play | 0.025mm@4000g |
Max.radial force | 75N@10mm from the flange |
Max.axial force | 15N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Electric connection:
Lead NO. | Lead Color | Lead Gauge | Function | DESCRIPTION | |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS | |
2 | Black | GND | GROUND FOR HALL SENSORS | ||
3 | Yellow | HALL A |
| ||
4 | Green | HALL B |
| ||
5 | Blue | HALL C |
| ||
6 | Yellow | UL1007/20AWG | PHASE U |
| |
7 | Green | PHASE V |
| ||
8 | Blue | PHASE W |
| ||

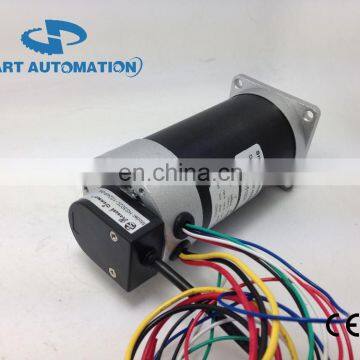

WITH ENCODER VERSION
CONTROLLER INTEGRATED VERSION

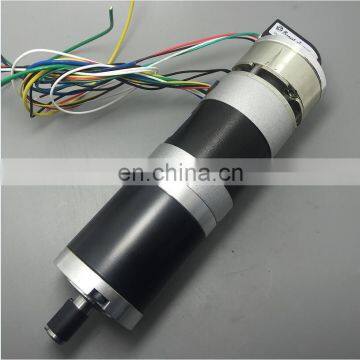

GEARED VERSION
ELECTRIC BRAKE INTEGRATED VERSION
