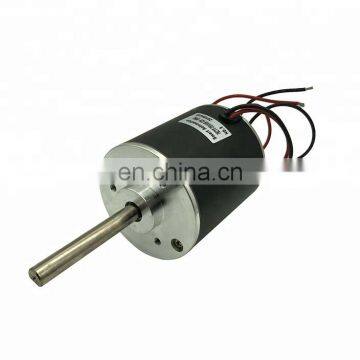

76mm 3'' Dc Motor 12v for Tennis Ball Machine
USD $10 - $30
/ Piece
5 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
63ZYT01A Brushed Dc Motor for Medical Equipment, equivalent to dunker gr63x25
-
63mm 24v dc motor for Medical apparatus and instruments, equivalent to dunker gr63x25
-
12v 24v 100W 200W 250W Dc Planetary Gear Motor, Low cost Hight torque
-
high speed 12V 24V packaging machine dc Motor no load 10000rpm
-
12 volt 24 volt dc Motor used for packing machine upto 200w
-
80mm 12v 24v 38v 48v Dc Electric Motor wit Big Brush long life, replace TRANSTECNO Motor big torque
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 76ZYT | |||
| Certification | CE, ROHS | Torque | 250mNm | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance, Other | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | 12a max. | Speed(RPM) | 4500rpm | |
| Commutation | Brush |
Product Description
Permanent Magnet Brush DC Motor
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
