Home > Products > brushed dc motors > 12 Volt 24 Volt dc Motor Used for Packing Machine Upto 200w
12 Volt 24 Volt dc Motor Used for Packing Machine Upto 200w
US$ 8 - 20
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
80mm 12v 24v 38v 48v Dc Electric Motor Wit Big Brush Long Life, Replace TRANSTECNO Motor Big Torque
-
80mm Brushed Long Life Dc Motor, to Replace TRANSTECNO Motor
-
Good Quality High Torque 63mm Brushed Dc Motor Equivalent to Dunker Gr63, Custom Specification & OEM
-
54mm 18v Brushed Dc Motor Rated 12 Volt 180mNm
-
54zyt 14204 Series 24v Brushed Dc Motor Rated 24 Volt 3200rpm 184mNm 62w
-
63ZYT01A-24v Brushed Dc Motor Equivalent Gr63x25 0.15Nm 50w
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 63ZYT01-SERIES | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 0.2N.m | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12, 24 | Output Power | 200w | |
| Continuous Current(A) | customed | Speed(RPM) | 9500rpm rated | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 63ZYT01-packing machine | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 9500 | 9500 | 9500 |
Continuous rated torque | N.m | 0.2 | 0.2 | 0.2 |
Continuous current | A | 24.1 | 12.2 | 7.3 |
Starting torque | N.m | 4.0 | 4.0 | 4.0 |
Starting current | A | 423 | 206.4 | 125.8 |
No load speed | rpm | 10000 | 10000 | 10000 |
No load current | A | 3.0 | 2.0 | 1.0 |
Demagnetization current | A | 500 | 300 | 200 |
Rotor inertia | gcm2 | 400 | 400 | 400 |
Weight of motor | g | 1000 | 1000 | 100 |
Motor length | mm | 95 | 95 | 95 |

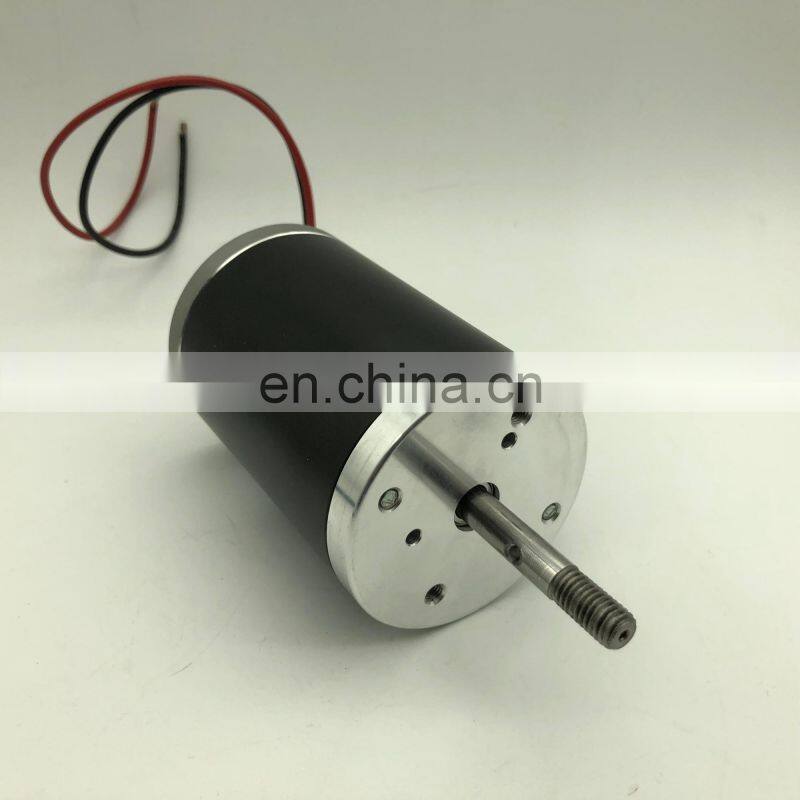

MOTOR PICTURES
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
