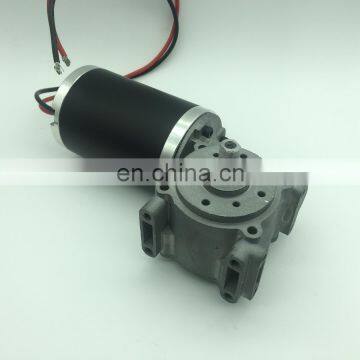

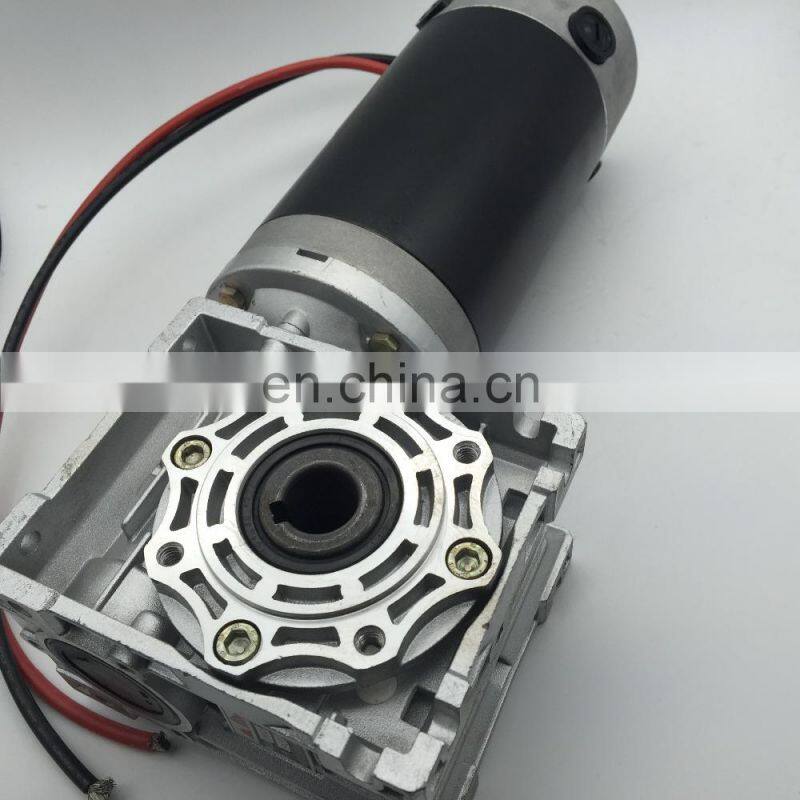

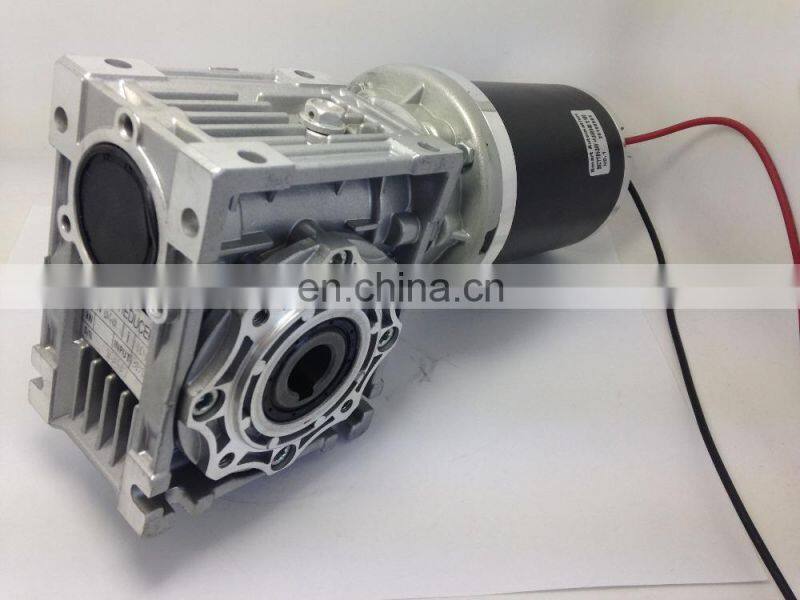

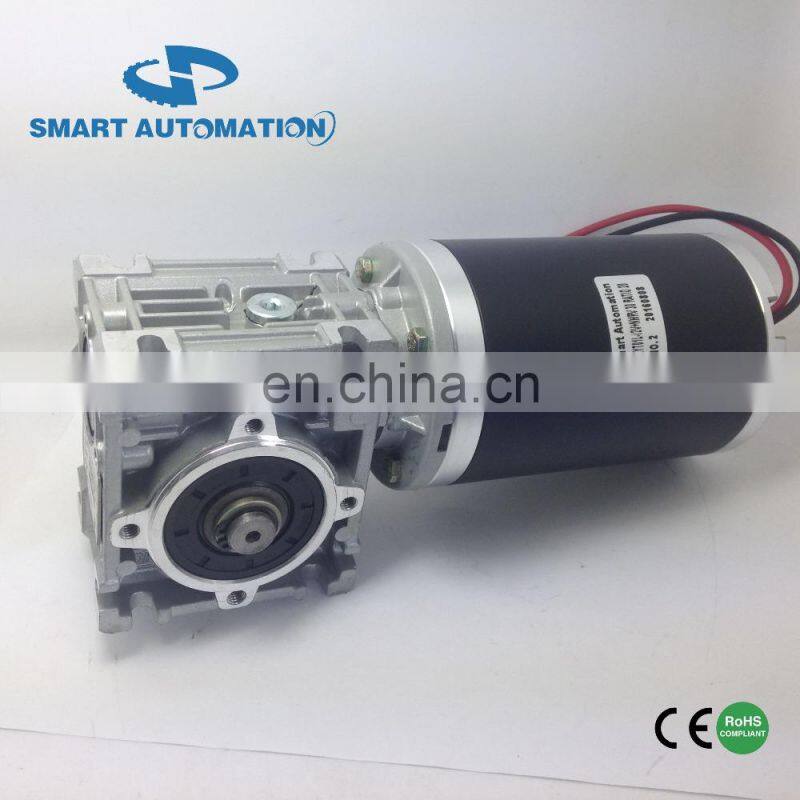

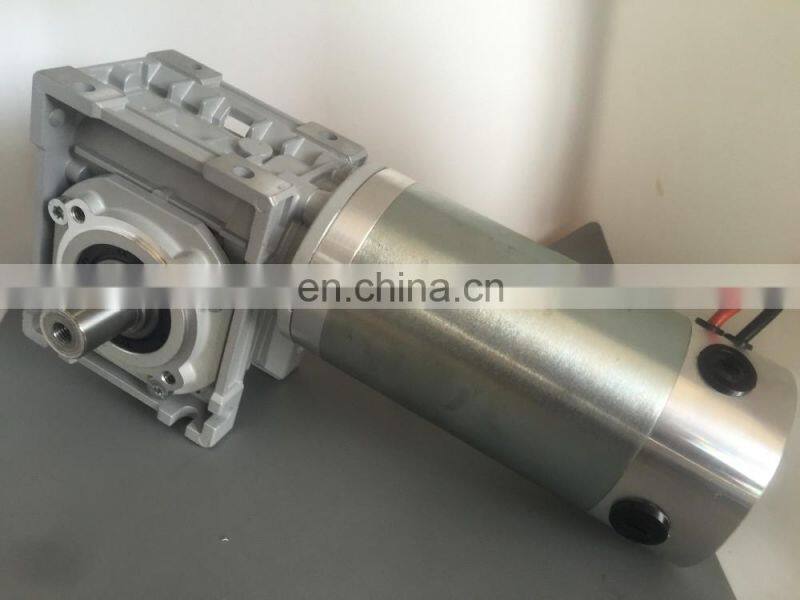

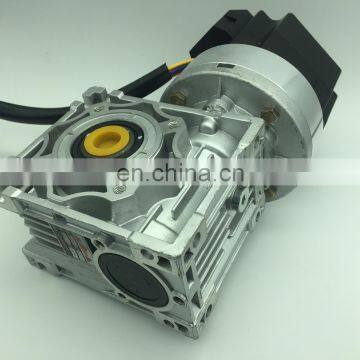

High Power Large Torque dc Lift Motor
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Smart automation | Place of Origin | Jiangsu, China | |
| Model Number | NMRV.ZYT | Type | Gear Motor | |
| Certification | CE, ROHS, VDE | Torque | customed | |
| Usage | Car, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v 24v | Output Power | upto 600w | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description
NMRV30.80ZYT SERIES PM DC WORM GEAR MOTOR(S1 SUTY)
NMRV40.90ZYT SERIES PM DC WORM GEAR MOTOR
NMRV40.90ZYT SERIES PM DC WORM GEAR MOTOR(S1 DUTY)

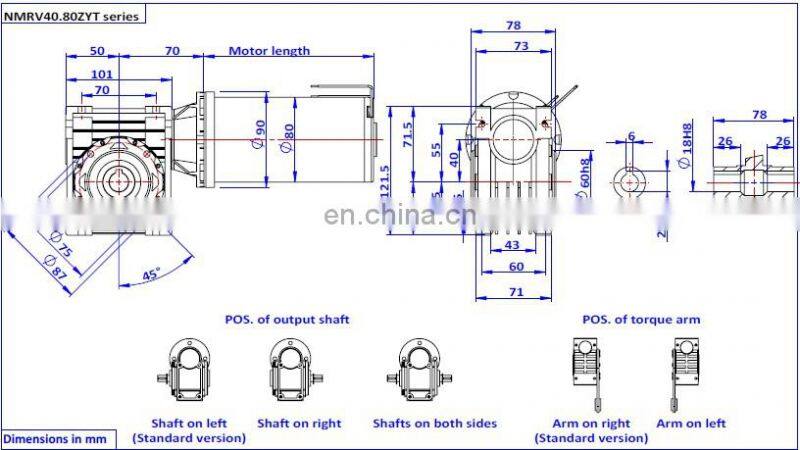

NMRV40.90ZYT SERIES Gear Motor Drawing:
90ZYT Series Motor Specification:
Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B CE and ROHS certified
Model | Rated voltage VDC | No load speed rpm | Rated speed rpm | Rated torque N.m | Output power W | Stall torque N.m | Motor Length mm |
90ZYT01L | 12/24/36/48 | 2000 | 1500 | 1.0 | 150 | 4.1 | 155 |
90ZYT02L | 12/24/36/48 | 2000 | 1500 | 1.5 | 236 | 7.1 | 199 |
We provide customized voltage, winding, shaft, mounting, and lead configurations
Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder
NMRV40.90ZYT01L Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 |
Transmission efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% | 50% |
No load speed(rpm) | 400.0 | 266.7 | 200.0 | 133.3 | 100.0 | 80.0 | 66.7 | 50.0 | 40.0 | 33.3 | 25.0 | 20.0 |
Rated speed(rpm) | 300.0 | 200.0 | 150.0 | 100.0 | 75.0 | 60.0 | 50.0 | 37.5 | 30.0 | 25.0 | 18.8 | 15.0 |
Rated torque (N.m) | 4.5 | 6.4 | 8.5 | 12.0 | 15.0 | 18.8 | 21.0 | 26.0 | 30.0 | 33.0 | 40.0 | 50.0 |
NMRV40.90ZYT02L Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 |
Transmission efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% | 50% |
No load speed(rpm) | 400.0 | 266.7 | 200.0 | 133.3 | 100.0 | 80.0 | 66.7 | 50.0 | 40.0 | 33.3 | 25.0 | 20.0 |
Rated speed(rpm) | 300.0 | 200.0 | 150.0 | 100.0 | 75.0 | 60.0 | 50.0 | 37.5 | 30.0 | 25.0 | 18.8 | 15.0 |
Rated torque (N.m) | 6.8 | 9.6 | 12.8 | 18.0 | 22.5 | 28.1 | 31.5 | 39.0 | 45.0 | 49.5 | 60.0 | 75.0 |
NMRV050.90ZYT SERIES PM DC WORM GEAR MOTOR
More:

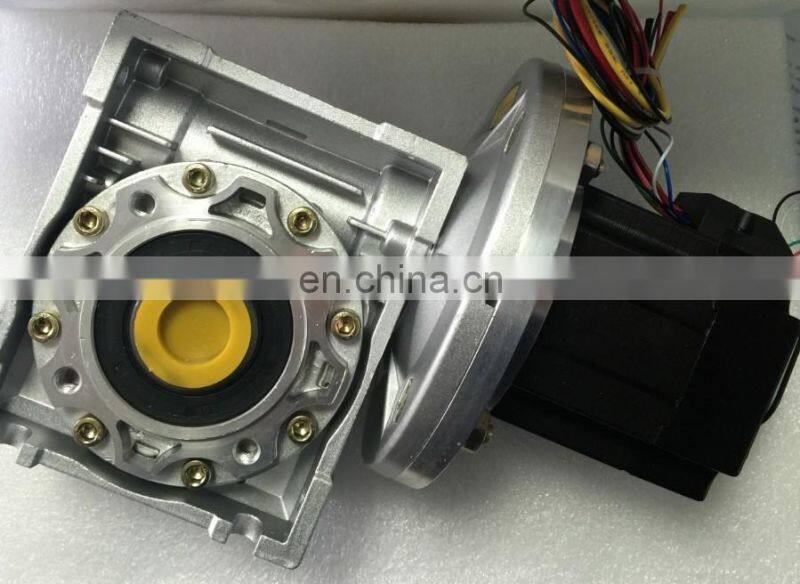

NMRV.80BL SERIES BRUSHLESS DC WORM GEAR MOTOR
NMRV.86BLS SERIES BRUSHLESS DC WORM GEAR MOTOR
