Home > Electrical & Electronics > Electric Motor > DC Motor > 52mm dc Spindle Motor With High Speed 12000rpm Output 350w

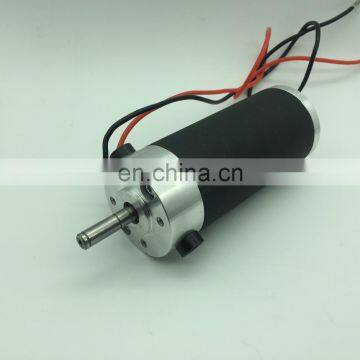

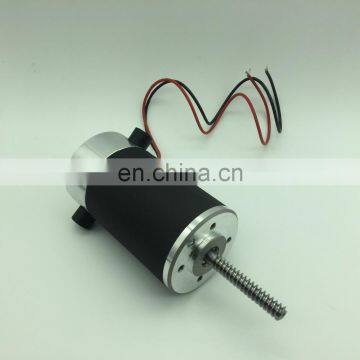

52mm dc Spindle Motor With High Speed 12000rpm Output 350w
US$ 8 - 20
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
52ZYT03- En
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Torque dc Electric Motors Power Upto 600wUS$ 25 - 60MOQ: 5 Pieces -
63ZYT01C High Speed 9000rpm dc Motor 200wUS$ 8 - 20MOQ: 5 Pieces
-
63ZYT01C 12v 24v 9000rpm dc Electric Motor 200wUS$ 8 - 20MOQ: 5 Pieces
-
BRUSHED DC Thermally Protected MotorUS$ 10 - 26MOQ: 5 Pieces
-
O.D 54mm Permanent Magnet dc Servo Motor 100wUS$ 6 - 20MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
52ZYT03- En
Type
Micro Motor
Certification
CE, ROHS
Torque
0.3Nm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
48v
Output Power
350w output
Continuous Current(A)
10a max
Speed(RPM)
no load 12000rpm
Commutation
Brush
Permanent Magnet Brush DC Motor 52ZYT03 Series
Motor Specifications:
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Rated 48v (option for 24v upto 110v)
No load speed 12000rpm
Rated speed 11000rpm
Rated torque 0.3Nm
Rated current 9.6A
