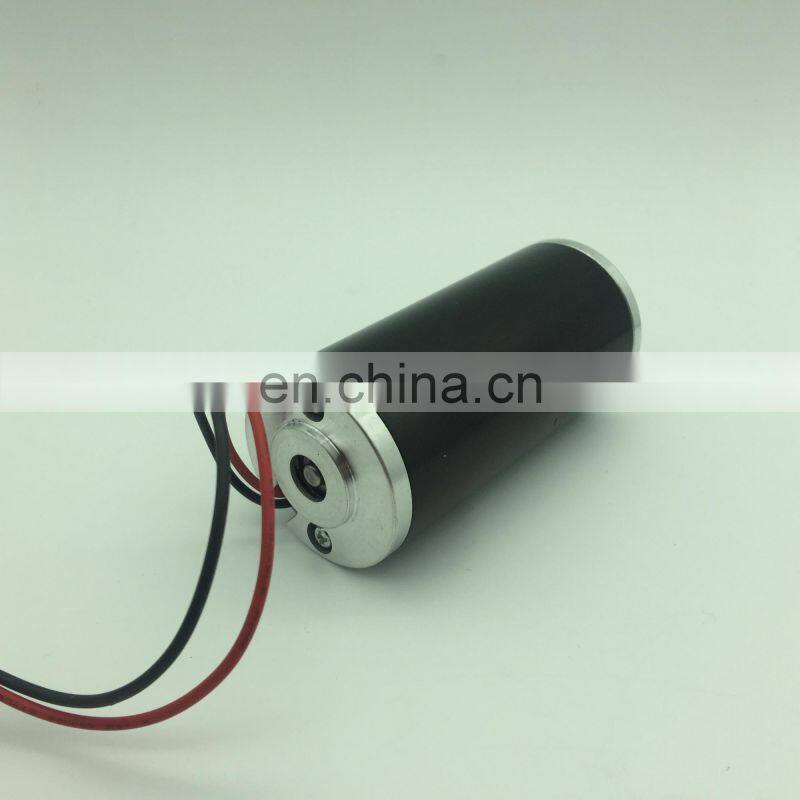

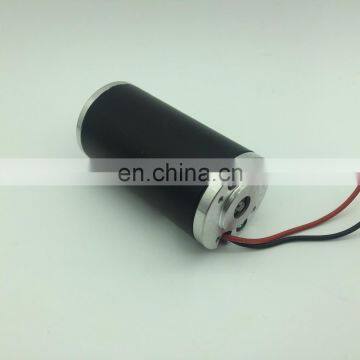

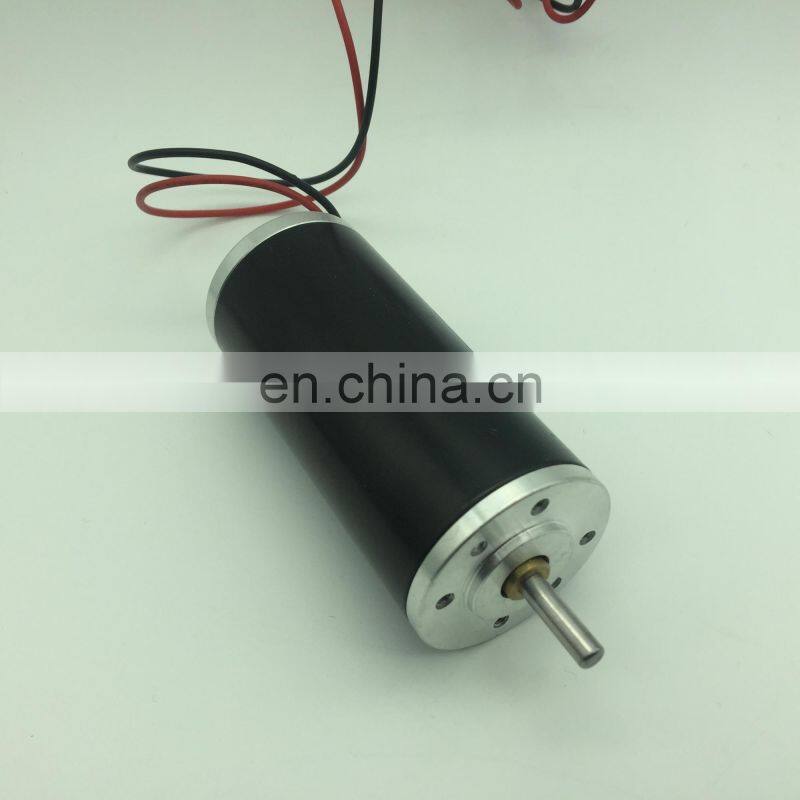

42mm dc Brushed Motor Compatible Motor With Transtecno Motor EC 020 24E
US$ 5 - 15
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
42ZYT04A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
42mm Brush Dc Motor Catalogue to Replace Gr42US$ 6 - 15MOQ: 5 Pieces -
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250US$ 50 - 100MOQ: 5 Pieces
-
12v 24v dc 75 Watt 100 Watt Motor Brushed OPTION 12volt 24volt 40voltUS$ 10 - 40MOQ: 5 Pieces
-
12v 300 Watt dc Motor Brushed Permanent MagnetUS$ 15 - 30MOQ: 5 Pieces
-
24v 300 Watt dc Motor Brushed Permanent MagnetUS$ 15 - 30MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
42ZYT04A
Type
Micro Motor
Certification
CE, ROHS
Torque
70mNm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12v, 24v, 40v
Output Power
customed
Continuous Current(A)
customed
Speed(RPM)
3350rpm
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation

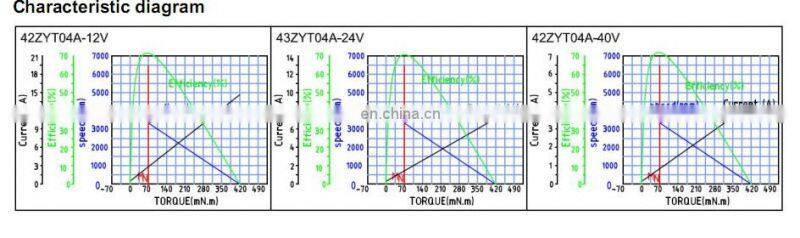

Model | 42ZYT04A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3350 | 3350 | 3350 |
Continuous rated torque | mN.m | 70 | 70 | 70 |
Continuous current | A | 2.8 | 1.4 | 0.85 |
Starting torque | mN.m | 400 | 400 | 400 |
Starting current | A | 15.1 | 7.5 | 4.62 |
No load speed | rpm | 4000 | 4000 | 4000 |
No load current | A | 0.35 | 0.25 | 0.15 |
Demagnetization current | A | 24 | 10.5 | 6.3 |
Rotor inertia | Gcm2 | 193 | 193 | 193 |
Weight of motor | g | 600 | 600 | 600 |
Motor length | Mm | 90 | 90 | 90 |
