High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250

Changzhou Smart Automation Motor Manufacturing Co., Ltd.
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 thumbnail-1
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 thumbnail-2
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 thumbnail-3
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 thumbnail-4
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 thumbnail-5
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 photo-1

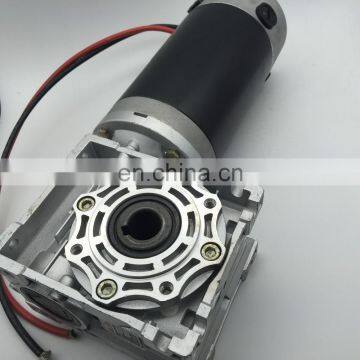

High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 photo-2
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 photo-3
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 photo-4
High Power Gear Reducing dc Motor to Replace Transtecno Motor EC250 photo-5
US$ 50 - 100 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart automation
Place of Origin:
Jiangsu, China
Model Number:
NMRV.ZYT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart automation
Place of Origin Jiangsu, China
Model Number NMRV.ZYT
Type Gear Motor
Certification CE, ROHS, VDE
Torque customed
Usage Car, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Continuous Current(A) customed
Speed(RPM) customed
Commutation Brush

 1)

NMRV30.80ZYT SERIES  PM DC WORM GEAR MOTOR(S1 SUTY)



high power gear reducing dc motor to replace transtecno motor EC250high power gear reducing dc motor to replace transtecno motor EC250high power gear reducing dc motor to replace transtecno motor EC250









 2)

 NMRV40.80ZYT SERIES  PM DC WORM GEAR MOTOR

 high power gear reducing dc motor to replace transtecno motor EC250high power gear reducing dc motor to replace transtecno motor EC250



 high power gear reducing dc motor to replace transtecno motor EC250







3)

NMRV40.90ZYT SERIES  PM DC WORM GEAR MOTOR(S1 DUTY)

NMRV40.90ZYT SERIES Gear Motor Drawing:







high power gear reducing dc motor to replace transtecno motor EC250







90ZYT Series Motor Specification:

Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B CE and ROHS certified

Model

Rated voltage    VDC

No load speed rpm

Rated speed      rpm

Rated torque     N.m

Output power         W

Stall torque          N.m

Motor Length  mm

90ZYT01L

12/24/36/48

2000

1500

1.0

150

4.1

155

90ZYT02L

12/24/36/48

2000

1500

1.5

236

7.1

199

We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder





NMRV40.90ZYT01L Worm Gear Motor Specification:

Reduction ratio

5

7.5

10

15

20

25

30

40

50

60

80

100

Transmission efficiency

90%

85%

85%

80%

75%

75%

70%

65%

60%

55%

50%

50%

No load speed(rpm)

400.0

266.7

200.0

133.3

100.0

80.0

66.7

50.0

40.0

33.3

25.0

20.0

Rated speed(rpm)

300.0

200.0

150.0

100.0

75.0

60.0

50.0

37.5

30.0

25.0

18.8

15.0

Rated torque (N.m)

4.5

6.4

8.5

12.0

15.0

18.8

21.0

26.0

30.0

33.0

40.0

50.0





NMRV40.90ZYT02L Worm Gear Motor Specification:

Reduction ratio

5

7.5

10

15

20

25

30

40

50

60

80

100

Transmission efficiency

90%

85%

85%

80%

75%

75%

70%

65%

60%

55%

50%

50%

No load speed(rpm)

400.0

266.7

200.0

133.3

100.0

80.0

66.7

50.0

40.0

33.3

25.0

20.0

Rated speed(rpm)

300.0

200.0

150.0

100.0

75.0

60.0

50.0

37.5

30.0

25.0

18.8

15.0

Rated torque (N.m)

6.8

9.6

12.8

18.0

22.5

28.1

31.5

39.0

45.0

49.5

60.0

75.0









high power gear reducing dc motor to replace transtecno motor EC250







 4)

NMRV050.90ZYT SERIES  PM DC WORM GEAR MOTOR



high power gear reducing dc motor to replace transtecno motor EC250high power gear reducing dc motor to replace transtecno motor EC250



high power gear reducing dc motor to replace transtecno motor EC250





 More:



NMRV.80BL SERIES BRUSHLESS DC WORM GEAR MOTOR





high power gear reducing dc motor to replace transtecno motor EC250







NMRV.86BLS SERIES  BRUSHLESS DC WORM GEAR MOTOR

high power gear reducing dc motor to replace transtecno motor EC250
