Home > Products > brushed dc motors > 54ZYT-14206 12 Vdc 24 Vdc Electric dc Motor 75w Rated 2800rpm

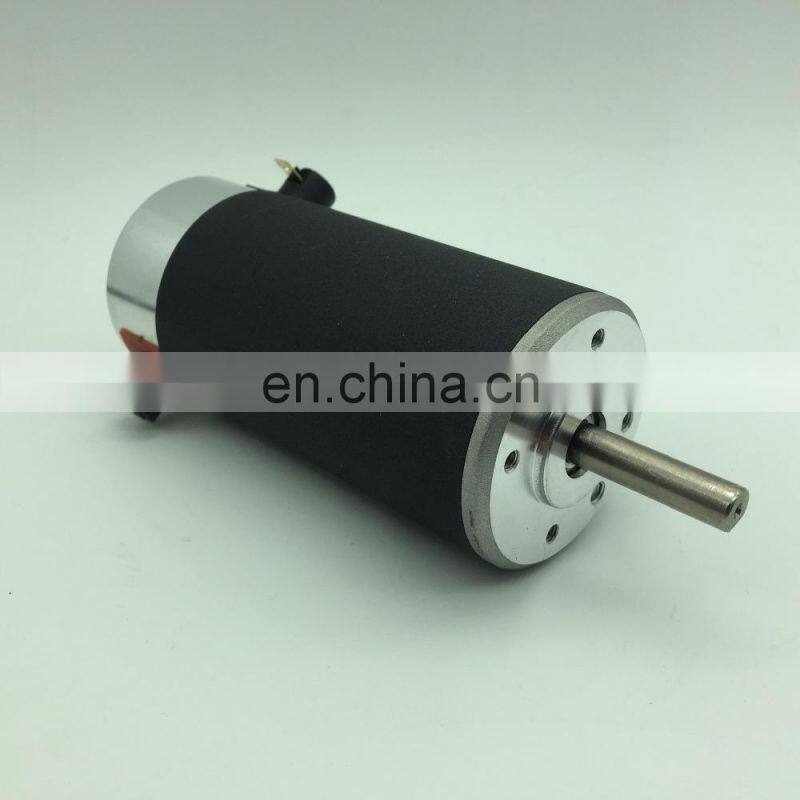

54ZYT-14206 12 Vdc 24 Vdc Electric dc Motor 75w Rated 2800rpm
US$ 10 - 20
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
54ZYT-14207 High Torque 24 Volt, 12 Volt Brushed dc Servo Motor 100w , Rated 2800rpm
-
54ZYT- 14201 O.D54mm Brushed dc Servo Motor Rated 3300rpm 71mNm 25w 12v 24v 38v 48v
-
54ZYT-14204 CE Approved Solar Fan Dc Motor, Rated 0.18Nm 62W
-
63mm 40v 24v 12v dc Motor Specification China Original
-
63ZYT01D 12v 24v 40v dc Motor 4000rpm 20kgcm 85w
-
O.D 63mm 12v dc Motor 3000rpm, 24v dc Motor 3000rpm, Rated Power 50w 75w 100w 150w
Product Details
| Brand Name | Smartautomation | Place of Origin | Jiangsu, China | |
| Model Number | 54ZYT-14206 | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 0.26Nm | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Explosion-proof | |
| Voltage(V) | 12~48v | Output Power | 75w | |
| Continuous Current(A) | customed | Speed(RPM) | 2800rpm | |
| Commutation | Brush |
Product Description
Brush Dc Motor

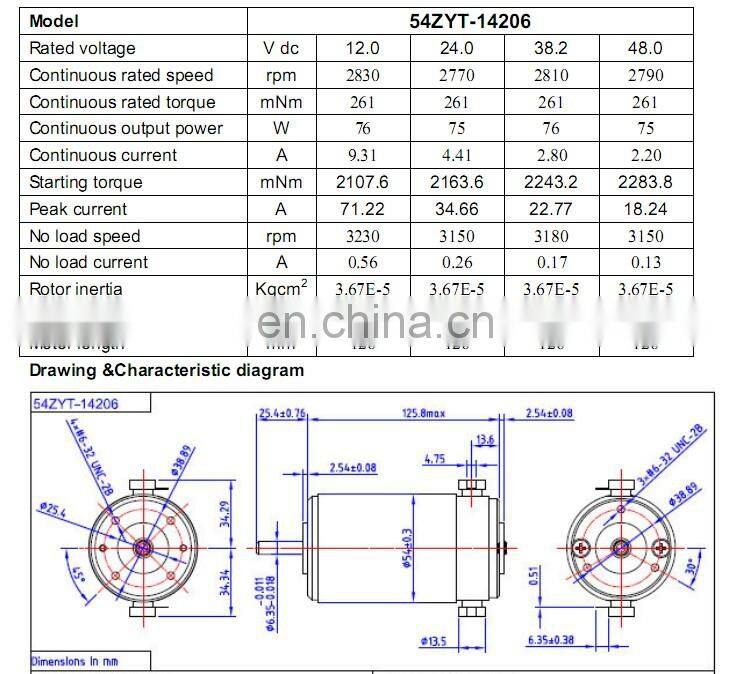

Motor technical parameter:
Ball bearing
Hard ferrite magnet, 2- pole
Protection class IP 50
Insulation class: B
CE and ROHS certified
54ZYT-14206
