Home > Products > Drive wheel for electric forklift > 1.2KW Hydraulic Wheel Drive Motor System
1.2KW Hydraulic Wheel Drive Motor System
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
Product Details
Brand Name: | Jinle | Place of Origin: | Jiangsu, China | Model Number: | 7EL-AC/0.9 |
Product Description

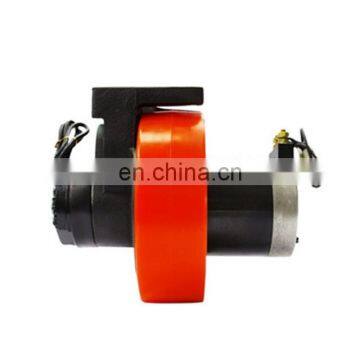

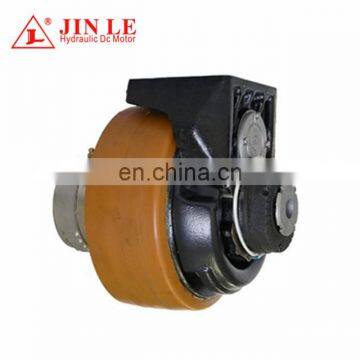

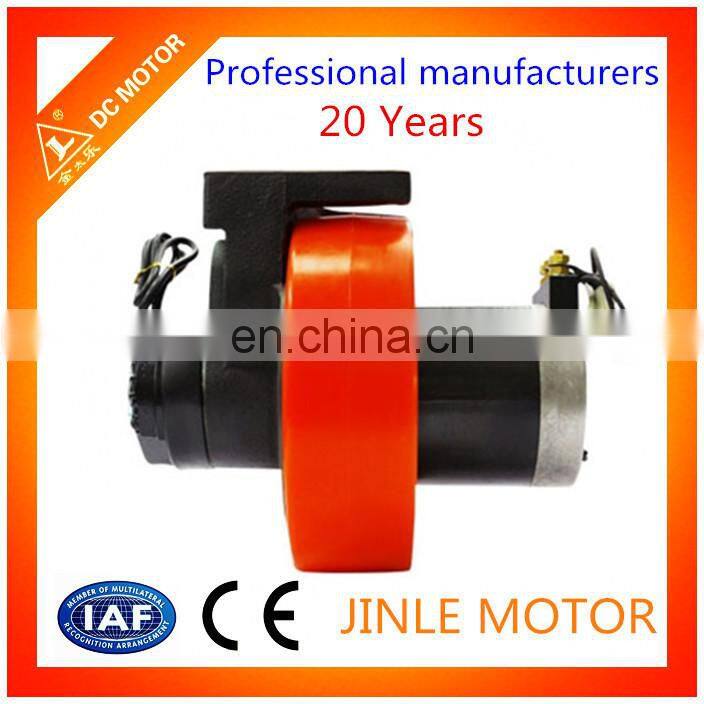

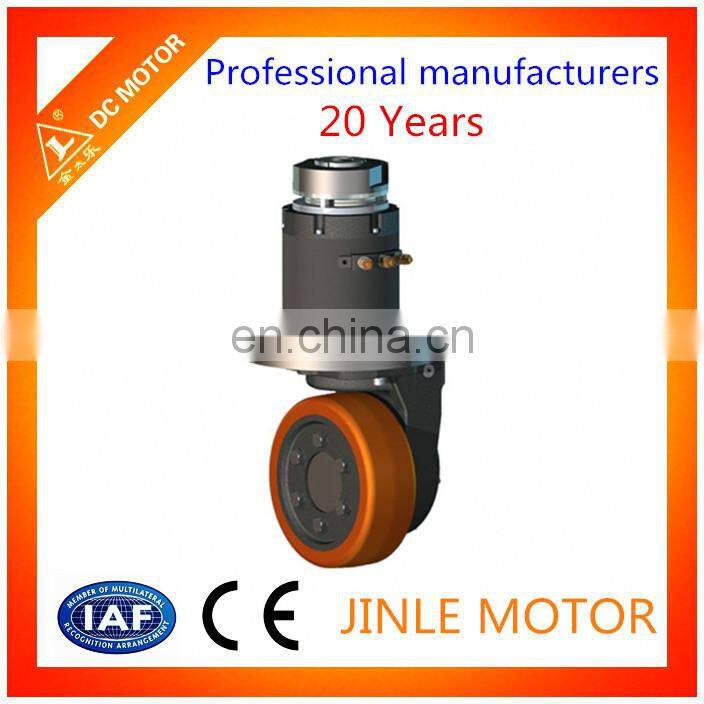

1.2KW Hydraulic Wheel Drive Motor System
Technical Data | DC permanent magnet | |||
power (KW) | 1.2 | |||
voltage (V) | 24 | |||
rated current (A) | 41 | |||
rated speed (r/min) | 2600 | |||
max speed (r/min) | 3200 | |||
speed ratio (i) | 24.7 | |||
max turning radius (mm) | 125 | |||
rated wheel load (kg) | 600 | |||
PU wheel size (mm) | 210*70 | |||
brake torque (Nm) | 6 |
7EL-AC/0.9 drive wheel is a multi-purpose mechanism,which makes the power,the transmission and the brake integrated.The electromotor is arranged vertical with the drive shaft and they are connected by a two levels gears decelerator.One level of the decelerators is the Gleason Spiral bevel gears.So this device features with steady transmission,low noise and strong load capacity while operating.
Floating bearing with screw in the outer ring is installed in top of the decelerator and it can be mounted to the frame parts through screws directly.So it is very convenient to disassemble and assemble,what’s more it is advantageous to realize the manual and power steering operating.
When AC motor which has speed detecting and heat sensitive sensor matching with Electrically controlled equipment being equipped in the drive wheel,it will guarantee that the transmission can be frequency controlled and feedback.And also, it will make the power transmission reliable and safe, flexible to manipulate,wide range to regulate speed and to save energy.As so many excellent performances mentioned above,this drive wheel can be widely adopted in the driven system of industrial used transporting vehicles.
1,sample service: samples can provide preferential.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get th samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
