High Speed Electric Hydraulic Drive Wheel Motor
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | JL-WM06 | |||
| Certification | CE | Torque | 8N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 24v | Output Power | 0.75KW | |
| Continuous Current(A) | 32A | Speed(RPM) | 2400-3200RPM | |
| Commutation | Brush |
Product Description

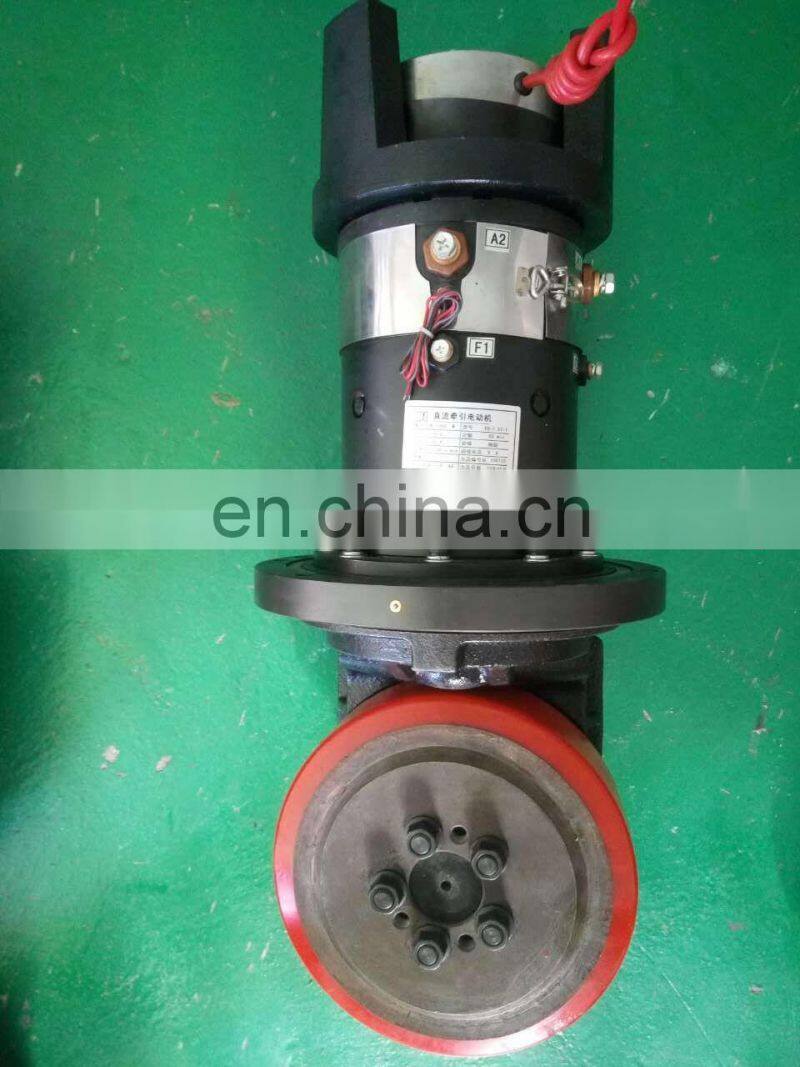

High Speed Electric Hydraulic Drive Wheel Motor
Specification:
| technical data | Unit | Series Wound | Series Wound | Separate-existed |
| Power | KW | 0.75 | 1.2 | 1.2 |
| Voltage | V | 24 | 24 | 24 |
| Rated Current | A | 32 | 62 | 52 |
| Rated Speed | r/min | 2400 | 2600 | 2600 |
| Max. Speed | r/min | 3200 | 3600 | 3600 |
| Max. Wheel Speed | r/min | 112 | 112 | 112 |
| Speed Ratio | / | 1:32 | 1:32 | 1:32 |
| Max. Radius of Gyration | mm | 165 | 185 | 185 |
| Rated Load | kg | 950 | 950 | 950 |
| Size (PU Wheel) | mm | 250x80 | 250x80 | 250x80 |
| Torque | N.m | 8 | 8 | 8 |
| Speed | km/h | 4.7 | 4.7 | 4.7 |
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
