Double Action Hydraulic Power Unit With 12V 800W DC Motor
- T/T Credit Card
You May Like
-
12V 24V DC Vertical Electric Stacker Hydraulic Power Units
-
18MPa 220VAC 50Hz Single Phase Hydraulic Power Pack For Work Platform
-
Small 2.1cc/r 180Bar 12V DC Hydraulic Power Unit Pack
-
Double Action 380V Hydraulic Power Pack Unit For Two Post Cat Lift
-
Double Action 380V Hydraulic Power Pack Unit For Two Post Cat Lift
-
12V 300W Outboard Hydraulic Lifter
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | HPU-06ABBCAHAECA |
Product Description

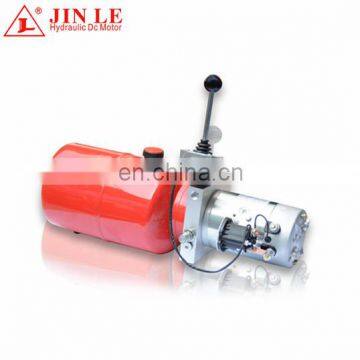

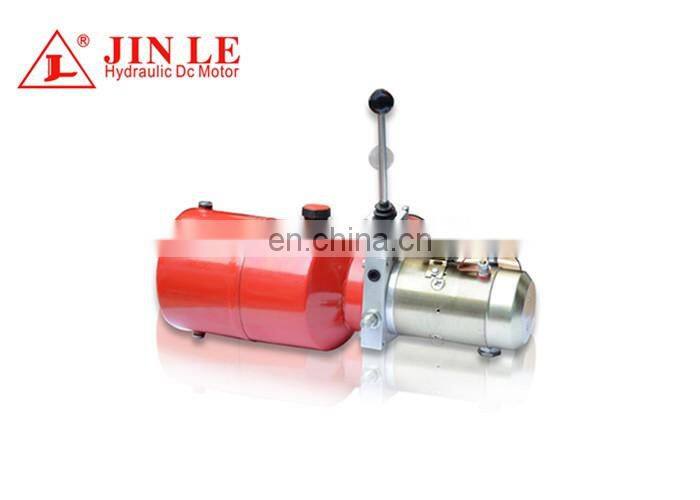

Double Action Hydraulic Power Unit With 12V 800W DC Motor
1) Canton Fair in Spring and Autumn
2) PTC in Shanghai
3) Hannover in Germany
4) Win Eurasia in Turkey
Product Description

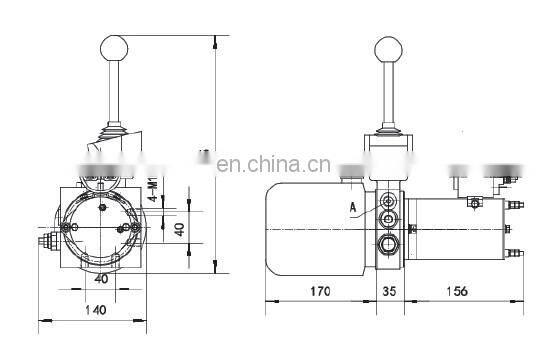

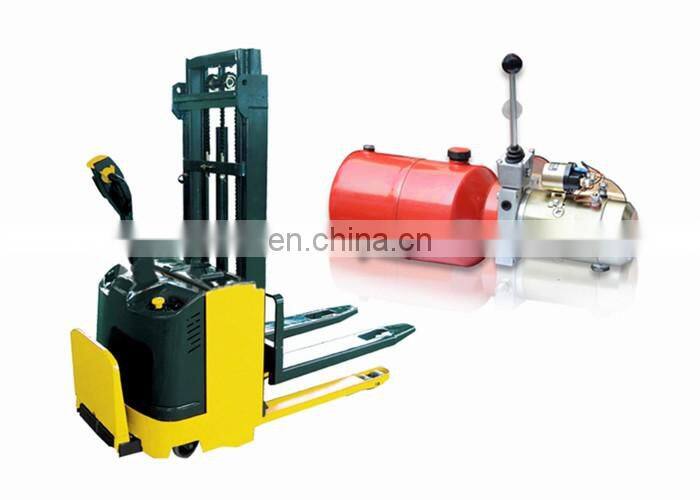

This power unit is designed exclusively for the fork lift, consist of high pressure gear pump, DC motor, multifunctional manifold, valves, tank, etc. The up and down movement are controlled by the level of the mannal release valve, which is equipped with and electric switch for the motor start. The lowering speed is automatically adjusted by the pressure compensated flow control valve.
Special Note
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
How to Inquire for A Hydraulic Power Unit
1). Voltage :
A. DC Motor : 12V / 24V
B. AC Motor : 220V - single phase / three phase , 380V - single phase / three phase
2). Power : 0.5KW - 4.0KW
3). Speed :
A. DC Motor :2500rpm , 3000rpm
B. 50Hz AC Motor :1400rpm , 2800rpm
C. 60Hz AC Motor : 1750rpm , 3450rpm
4). Pump Displacement : 0.75cc/r - 8cc/r
5). Solenoid Valve Voltage : 12V / 24V / 220V
6). Pressure : 1.6MPa - 20MPa
7). Tank Capacity : 1.0L - 40L
8). Mounting : horizontal / vertical / lateral horizontal

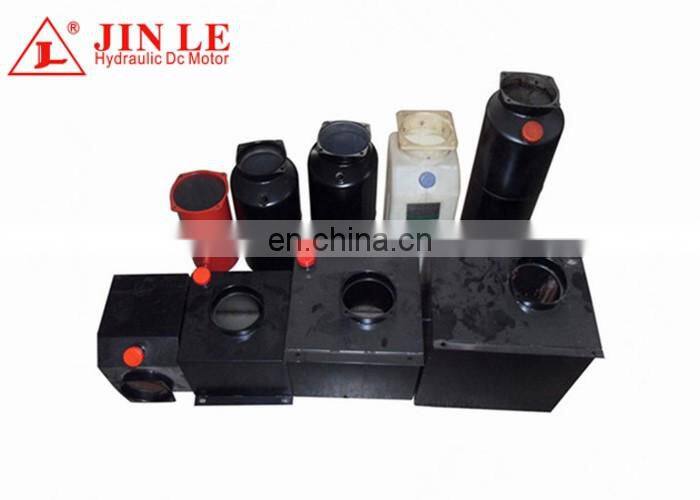

9). Tank material : steel / plastic
10). Tank shape : round / square
11). Accessories
Directional valve
Solenoid valve
Manual valve
Heat exchanger
Tank heater
Pressure switch
Accumulator
Our Service
1. GOOD QUALITY AND COMPETETIVE PRICE IN MARKET
2. FAST DELIVERY SERVICE
3. SAFETY PACKAGE SERVICE
4, FAST SAMPLE PREPARING SERVICE
5. GOOD AFTER SALE SERVICE
6. 24 HOURS ON LINE SERVIC.
Q: Are you a trading company or manufacturer ?
A: We are professional hydraulic dc motors and hydraulic power units factory. We develop and manufacture various kinds of types.
Q: How about your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days for sample order. For mass order 15-30 days.
Q: Do you provide samples ?
A: Yes, you can. Welcome to place sample order to check our quality. We do believe our high quality products will bring more orders for your from your clients.
Q: Do you accept OEM/ODM service?
A: Yes! We do accept. We have experienced R&D team, so welcome to place OEM/ODM orders to us.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: How can I get your pricelist?
A: Send an enquiry to us and tell us you need our pricelist, we will reply you within 12 hours with pricelist.
Q: Any guarantee for your products?
A: Our company's culture is "Quality is our culture!" All of your products with 12 months FREE GUARANTEE, never need to worry about the after-sale service, we will always be here to support your business!
Q: Any certifications for your products?
A: Our dc motors pass CE, EMC, LVD certifications, so they can be sold to worldwide safely!
Q: At last, about the payment terms, any convenient and safe way for our buyers?
A: We have Alibaba Pay, T/T, WU payment terms options, do business with us, your money will be in safe, your business will be in safe!
