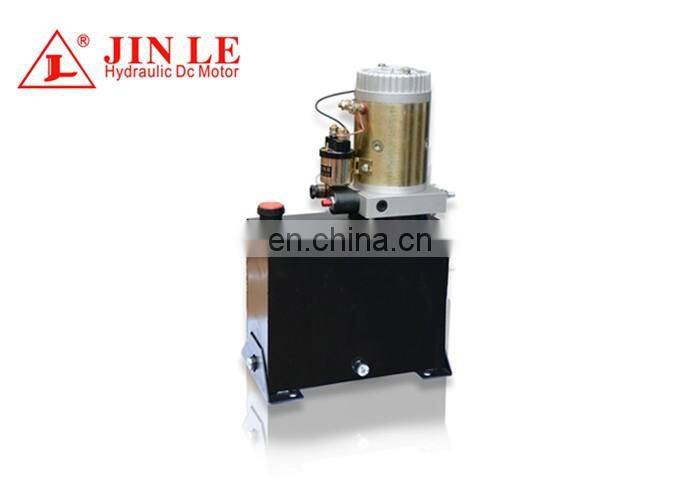

12V 24V DC Vertical Electric Stacker Hydraulic Power Units
1) Canton Fair in Spring and Autumn
2) PTC in Shanghai
3) Hannover in Germany
4) Win Eurasia in Turkey
Product Description

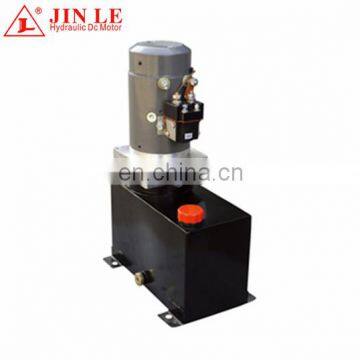

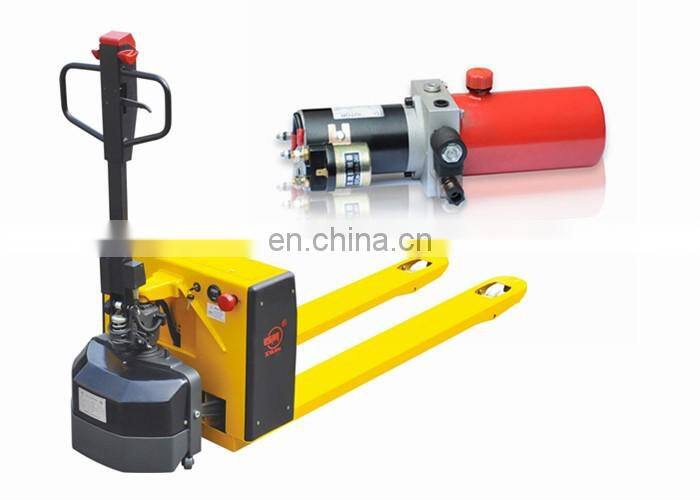

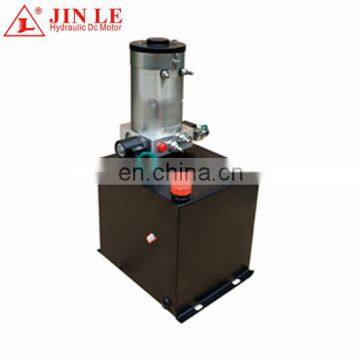

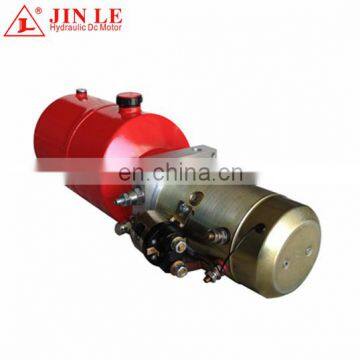

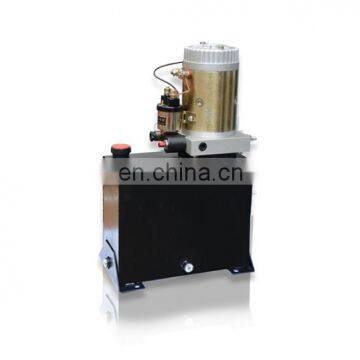

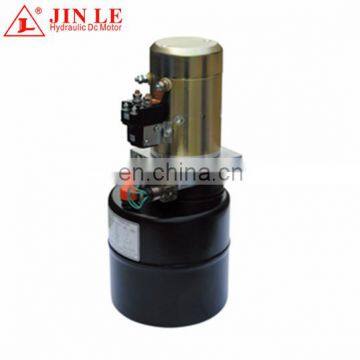

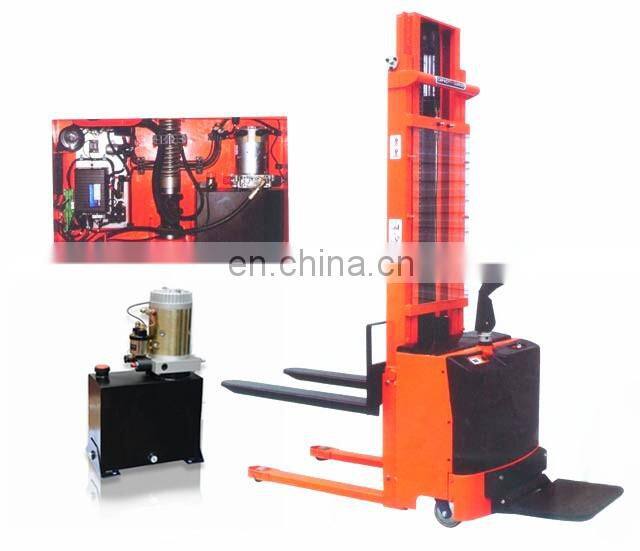

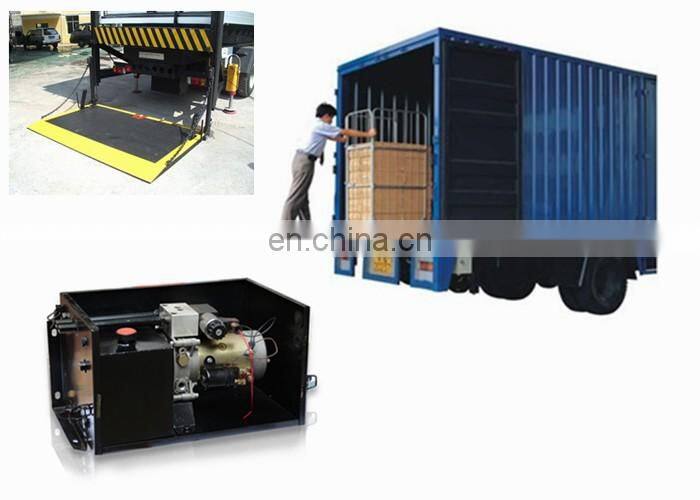

Equiped with a high pressure gear pump, a DC motor, a multi-functional manifold, valves and a tank, etc. This Power Unit features power up gravity down actions. Start the motor to fit the machine and the lowering movement is activated by the solenoid valve, lowering speed controlled by the pressure compensated flow control valve. The products are widely used in the industry of logistic devices such as fork lift, mini lift table etc.
Special Note
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
How to Inquire for A Hydraulic Power Unit
1). Voltage :
A. DC Motor : 12V / 24V
B. AC Motor : 220V - single phase / three phase , 380V - single phase / three phase
2). Power : 0.5KW - 4.0KW
3). Speed :
A. DC Motor :2500rpm , 3000rpm
B. 50Hz AC Motor :1400rpm , 2800rpm
C. 60Hz AC Motor : 1750rpm , 3450rpm
4). Pump Displacement : 0.75cc/r - 8cc/r
5). Solenoid Valve Voltage : 12V / 24V / 220V
6). Pressure : 1.6MPa - 20MPa
7). Tank Capacity : 1.0L - 40L
8). Mounting : horizontal / vertical / lateral horizontal
9). Tank material : steel / plastic
10). Tank shape : round / square
11). Accessories
Directional valve
Solenoid valve
Manual valve
Heat exchanger
Tank heater
Pressure switch
Accumulator
Our Service
1. GOOD QUALITY AND COMPETETIVE PRICE IN MARKET
2. FAST DELIVERY SERVICE
3. SAFETY PACKAGE SERVICE
4, FAST SAMPLE PREPARING SERVICE
5. GOOD AFTER SALE SERVICE
6. 24 HOURS ON LINE SERVIC.
Q: Are you a trading company or manufacturer ?
A: We are professional hydraulic dc motors and hydraulic power units factory. We develop and manufacture various kinds of types.
Q: How about your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days for sample order. For mass order 15-30 days.
Q: Do you provide samples ?
A: Yes, you can. Welcome to place sample order to check our quality. We do believe our high quality products will bring more orders for your from your clients.
Q: Do you accept OEM/ODM service?
A: Yes! We do accept. We have experienced R&D team, so welcome to place OEM/ODM orders to us.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: How can I get your pricelist?
A: Send an enquiry to us and tell us you need our pricelist, we will reply you within 12 hours with pricelist.
Q: Any guarantee for your products?
A: Our company's culture is "Quality is our culture!" All of your products with 12 months FREE GUARANTEE, never need to worry about the after-sale service, we will always be here to support your business!
Q: Any certifications for your products?
A: Our dc motors pass CE, EMC, LVD certifications, so they can be sold to worldwide safely!
Q: At last, about the payment terms, any convenient and safe way for our buyers?
A: We have Alibaba Pay, T/T, WU payment terms options, do business with us, your money will be in safe, your business will be in safe!
