800Watt DC 12 Volt Hydraulic Power Units for Sale

FOB Price

US$ 150 - 300 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jinle		Place of Origin	Jiangsu, China
Model Number	HPU-10ABBCAHAEBA

Product Description

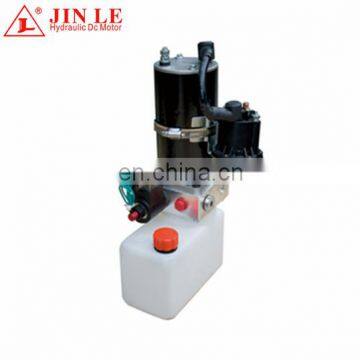

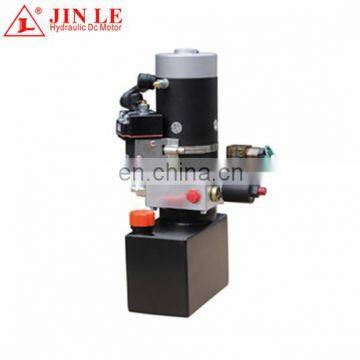

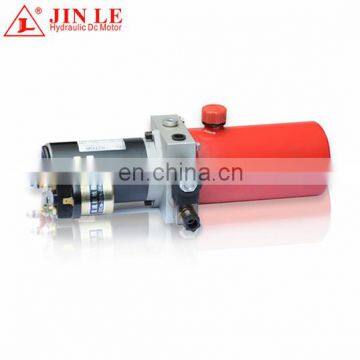

800Watt DC 12 Volt Hydraulic Power Units for Sale

Product Description

General Description
Consisting of high pressure gear pump, DC motor, multifunctional manifold, valve, tank, etc. This power unit can be widely used in the industry logistic devices such as minifork lift. The lowering movement is controlled by the solenoid valve with the sped controlled by the balance valve.

Model Specifications

Model	Motor Info	Pump Displacement	Tank Capacity	Pressure	Mounting	Oil Port	L(mm)
HPU-10ABBCAHAEAA	12V 0.8KW 3650RPM	0.5cc/r	1.0L	16MPa	Horizontal	1/4*BSPP	178
HPU-10ABBDAHAEBA	12V 0.8KW 3650RPM	0.75cc/r	1.2L				210
HPU-10BBBCBHAEAA	24V 0.8KW 3650RPM	0.5cc/r	1.0L				178
HPU-10BBBDBHAECA	24V 0.8KW 3650RPM	0.75cc/r	1.7L				170

Remark:
1.The manual override function, the different pump displacement, motor power, tank capacity are available on request.

Special notes

1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.

2. Clean all the hydraulic parts concemed before mounting the power unit.

3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.

4. This power unit should be mounted horizontal.

5. Check the oil level in the tank after the first start of the power unit.

6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.

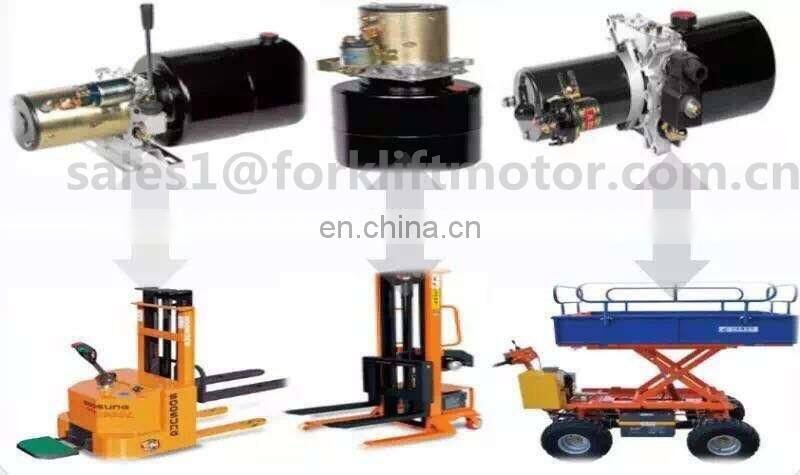

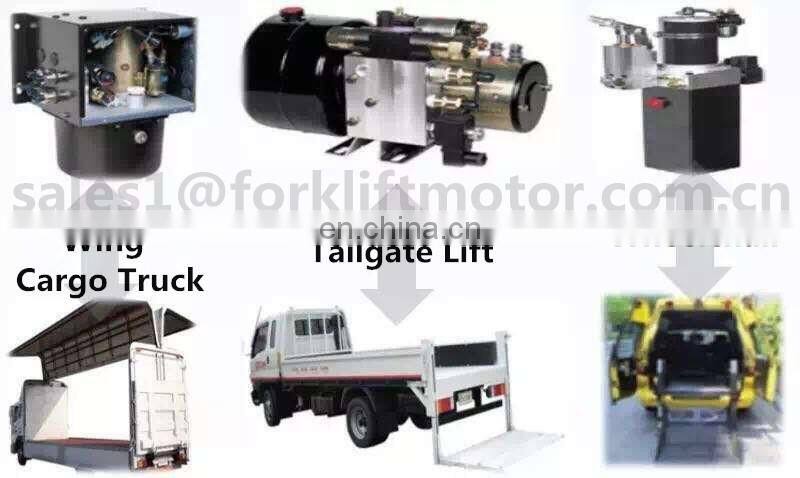

Application:

Packaging & Shipping

Our Services

1,sample service: samples can be provided.

2,customized services: a variety of motors can be customized according to customer demand.

3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.

FAQ

1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops

2. Certificates

CE, ISO9001 etc

3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders

4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment

Certifications
